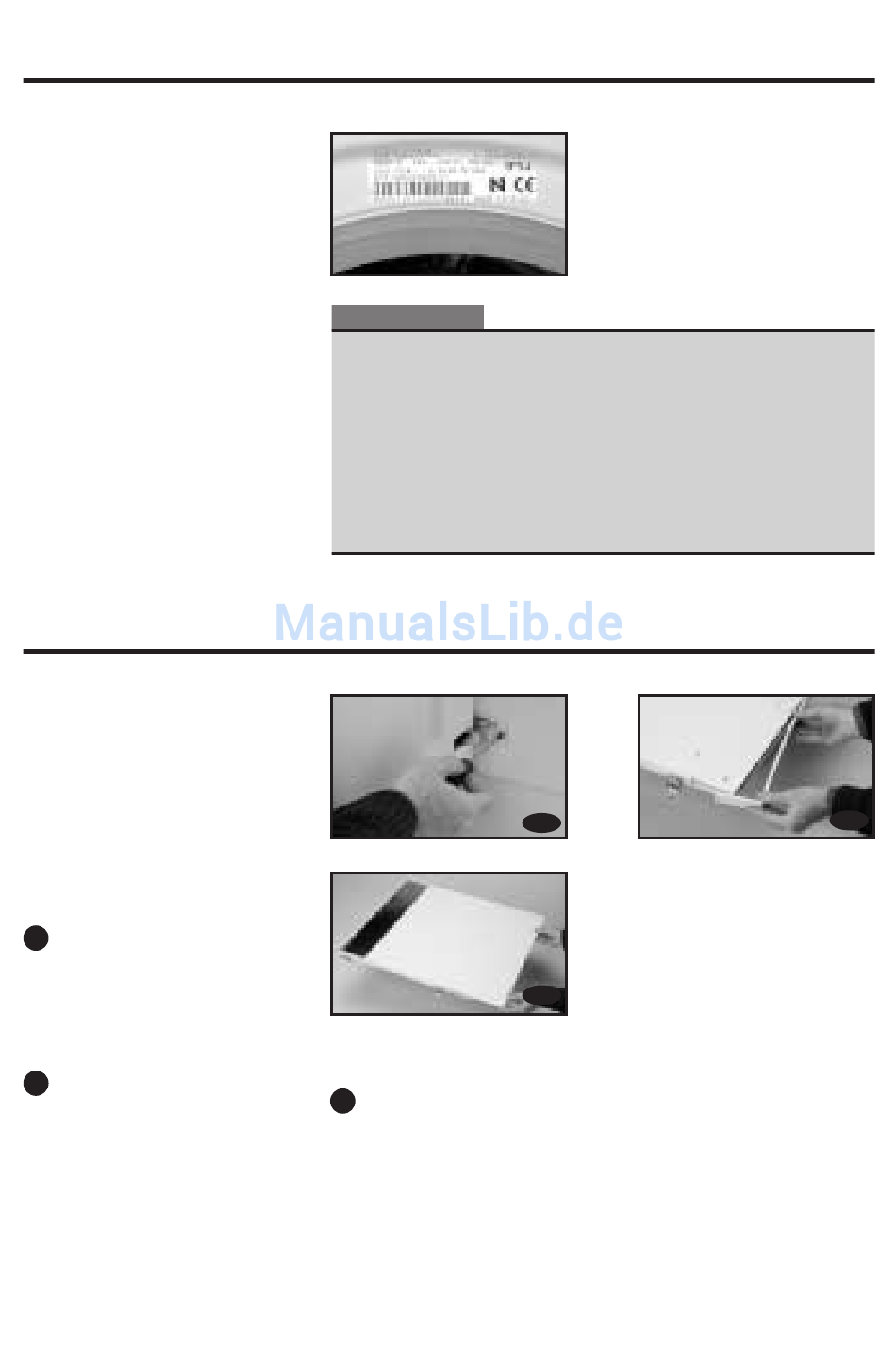

ELECTRICAL CONNECTION

Consult the characteris-
tics panel situated on the
porthole door of the was-
hing machine before
making the electrical
connections. Ensure that
the voltage available at
the base of the socket is
the same as the voltage
indicated on the panel.
Do not remove the cha-
racteristics panel. It
contains important
information.
5
PANELLING
It is easy
to change the coating
of the washing machi-
ne panels
to match your kitchen
furniture. These coating
panels may
not be thicker than 5
mm.
a Loosen the
screws of the hinges
and dismantle the
door of
the washing machi-
ne.
b Remove the lower
protection frame, loo-
sening the screws.
Extract the panel that
was supplied with
the washing machi-
ne.
IMPORTANT
It is very important to earth the washing machine pro-
perly.
The electrical fittings, socket, plug, fuses or automatic
switch and meter must be scaled for the maximum
power indicated on the characteristics panel.
If the power cord is damaged, it must be replaced by one
with the same reference number, only available from an
authorised service centre.
c If the new panel is 3
mm. thick or more,
you will not need to
leave the original
panel. If it is less than
3 mm. thick, place it
over the panel origi-
nally supplied with
the washing machine.
a
c
In order to assemble the
door with the new decorati-
ve panel, repeat the steps
given in points a, b, c.
b
