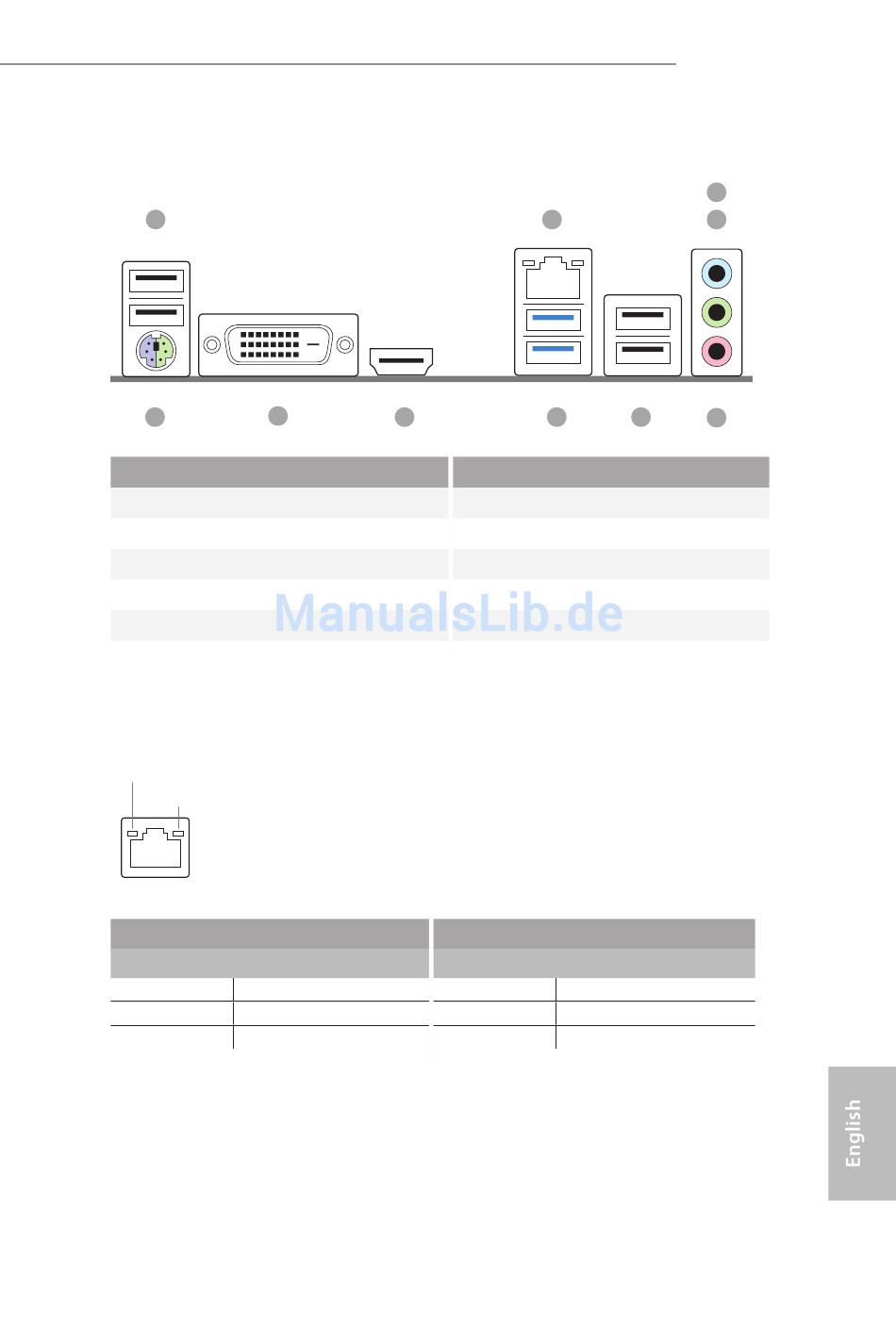

I/O Panel
1
9
10
No. Description
1 USB 2.0 Ports (USB12)
2 LAN RJ-45 Port*
3 Line In (Light Blue)**
4 Front Speaker (Lime)**
5 Microphone (Pink)**
* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Status Description
Off No Link
Blinking Data Activity
On Link
2
8 7
No. Description
6 USB 2.0 Ports (USB_56)
7 USB 3.0 Ports (USB3_34)
8 HDMI Port
9 DVI-D Port
10 PS/2 Mouse/Keyboard Port
Speed LED
Status Description
Off 10Mbps connection
Orange 100Mbps connection
Green 1Gbps connection
H110M-ITX/D3
3
4
6 5
