ASROCK H110M-ITX/D3 Handbuch Seite 16

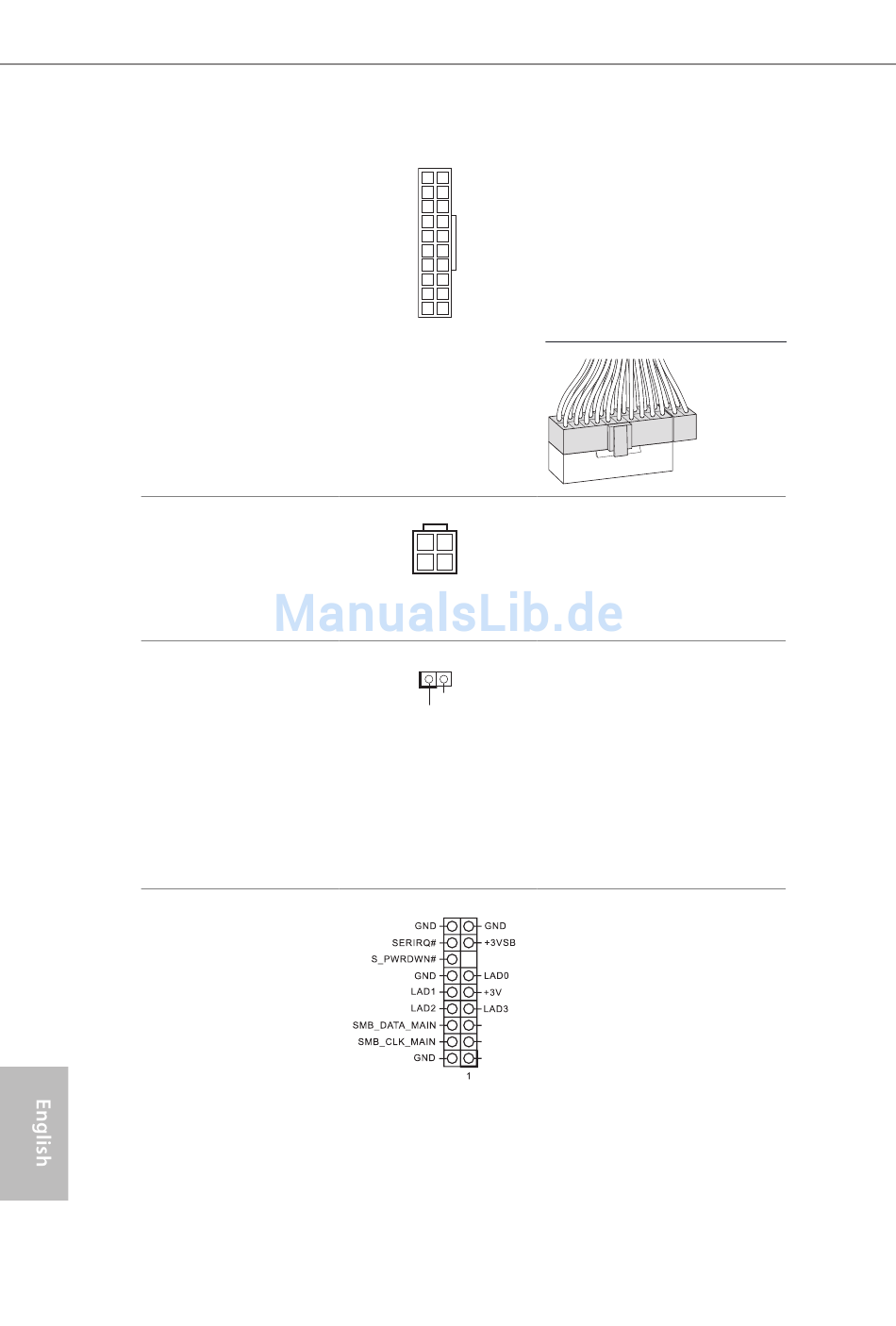

ATX Power Connector
(20-pin ATXPWR1)
(see p.1, No. 5)
ATX 12V Power
Connector
(4-pin ATX12V1)
(see p.1, No. 1)
Chassis Intrusion Header
(2-pin CI1)
(see p.1, No. 16)
TPM Header
(17-pin TPMS1)
(see p.1, No. 8)
14
This motherboard pro-
10 12
vides a 20-pin ATX power
connector. To use a 24-pin
ATX power supply, please
plug it along Pin 1 and Pin
11.
1
11
Using a 24-pin ATX power supply:
This motherboard
provides an 4-pin ATX
12V power connector.
This motherboard
1
supports CASE OPEN
GND
Signal
detection feature that
detects if the chassis cove
has been removed. This
feature requires a chassis
with chassis intrusion
detection design.
This connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certificates, passwords,
and data. A TPM system also
PCIRST#
FRAME
helps enhance network security,
PCICLK
protects digital identities, and
ensures platform integrity.
