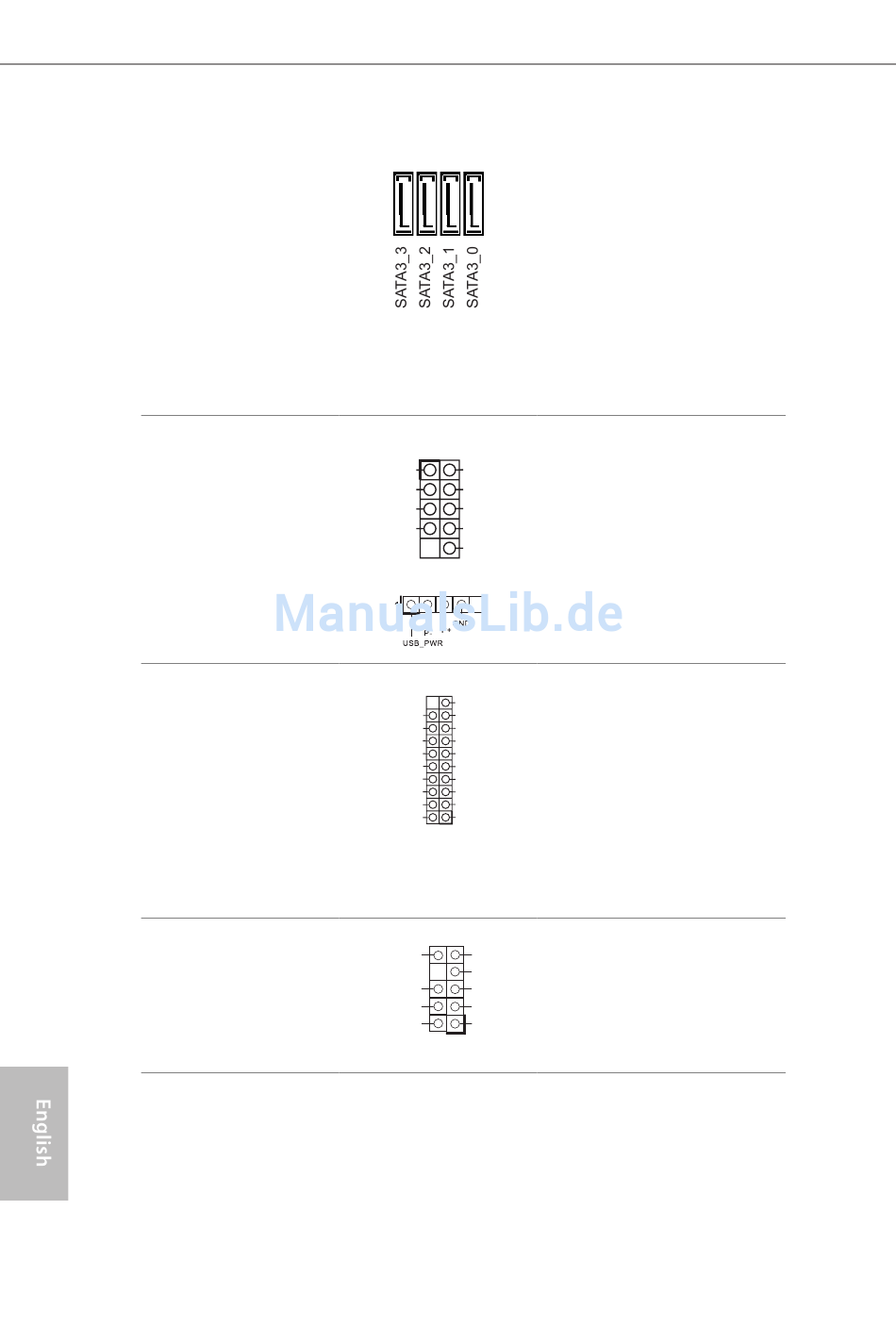

Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 12)
(SATA3_1:
see p.1, No. 13)
(SATA3_2:
see p.1, No. 14)
(SATA3_3:
see p.1, No. 15)
USB 2.0 Headers
(9-pin USB_9_10)
(see p.1, No. 6)
(4-pin USB11)
(see p.1, No. 18)
USB 3.0 Header
(19-pin USB3_7_8)
(see p.1, No. 7)
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 17)
12
1
USB_PWR USB_PWR
P- P-
P+ P+
GND GND
DUMMY
Vbus Vbus
Vbus IntA_PB_SSRX-
IntA_PA_SSRX- IntA_PB_SSRX+
IntA_PA_SSRX+ GND
GND IntA_PB_SSTX-
IntA_PA_SSTX- IntA_PB_SSTX+
IntA_PA_SSTX+
GND
GND IntA_PB_D-
IntA_PA_D- IntA_PB_D+
IntA_PA_D+ Dummy
1
OUT_RET OUT2_L
J_SENSE
MIC_RET OUT2_R
PRESENCE# MIC2_R
GN D MIC2_L
1
These four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
There is one header
and one port on this
motherboard. Each USB
2.0 header can support
two ports.
Besides two USB 3.0 ports
on the I/O panel, there
is one header on this
motherboard. Each USB
3.0 header can support
two ports.
* USB3_7_8 is shared with
USB_9_10.
This header is for
connecting audio devices
to the front audio panel.
