CHARACTERISTICS
Ref. Q.ty Product Components
1 1 Hood Canopy complete with: Controls, Light, Filters
2 1 Telescopic chimney, made up of:
2.1 1 Upper chimney
2.2 1 Lower chimney
7.1 1 Telescopic frame complete with Suction fan, made up of:
7.1a 1 Upper frame
7.1b 1 Lower frame
9 1 Reduction flange ø 150-120 mm
10 1 Flange ø 150
10a 1 Damper ø 150
11 2 Side Glass
12 2 Front Glass
13 4 Glass Fastener Element
15 1 Air Outlet Connector
25 2 Pipe clamps
Ref. Q.ty Installation Components
7.1.1 2 Side Glass Brackets
7.1.2 2 Centre Glass Brackets
11 4 Wall plugs ø 10
12c 2 Screws 2.9 x 6.5
12f 4 Screws M6 x 10
12g 4 Screws M6 x 80
12h 4 Screws 5.2 x 70
12p 10 Screws M4x10
21 1 Drilling template
22 4 Washers ø 6.4
23 4 Nuts M6
Q.ty Documentation
1 Instruction Manual
EN

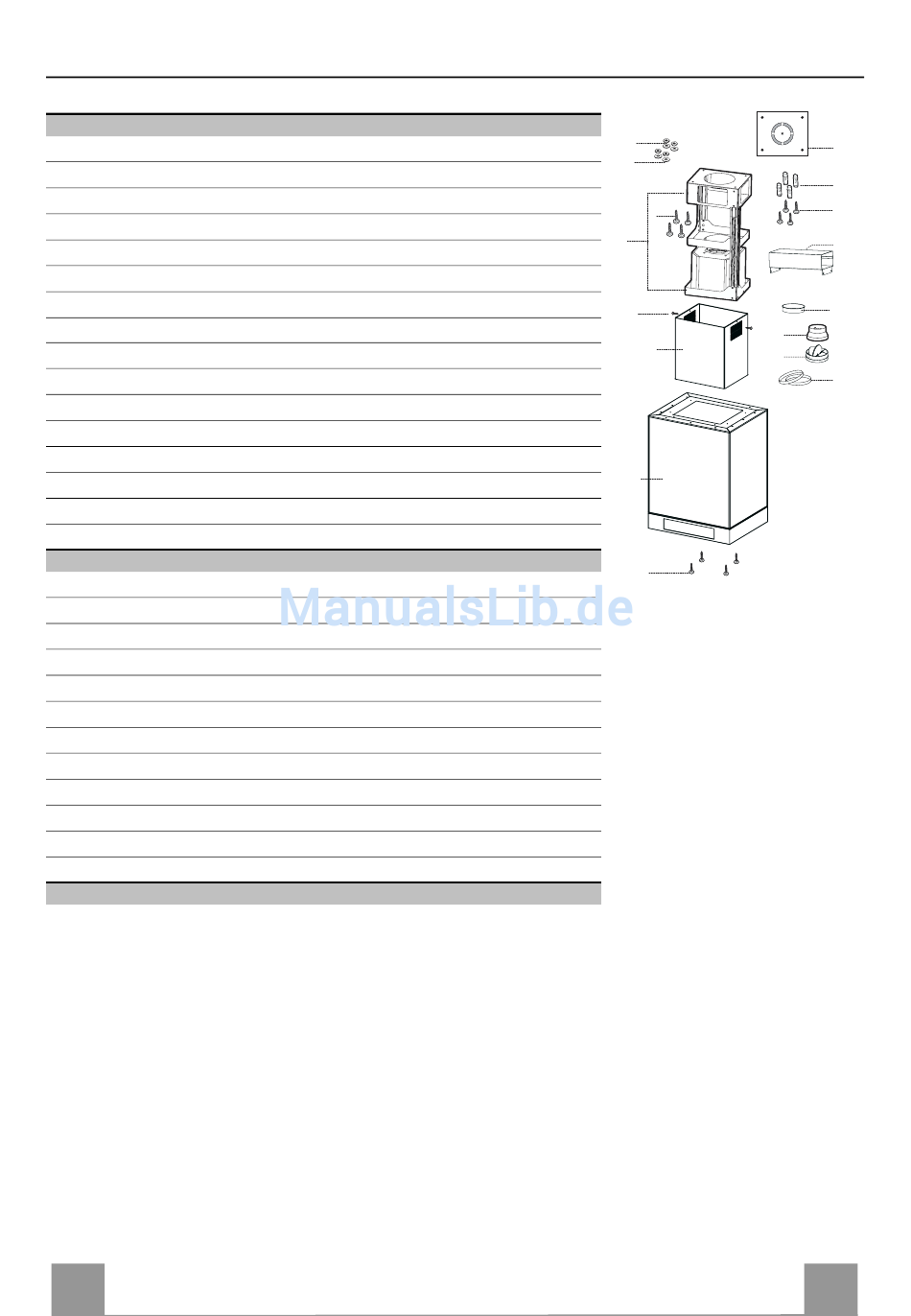

Components
