User manual / Bedienungsanleitung
Magnify
2.2 tonearm without VTA – Lifter:
Magnify

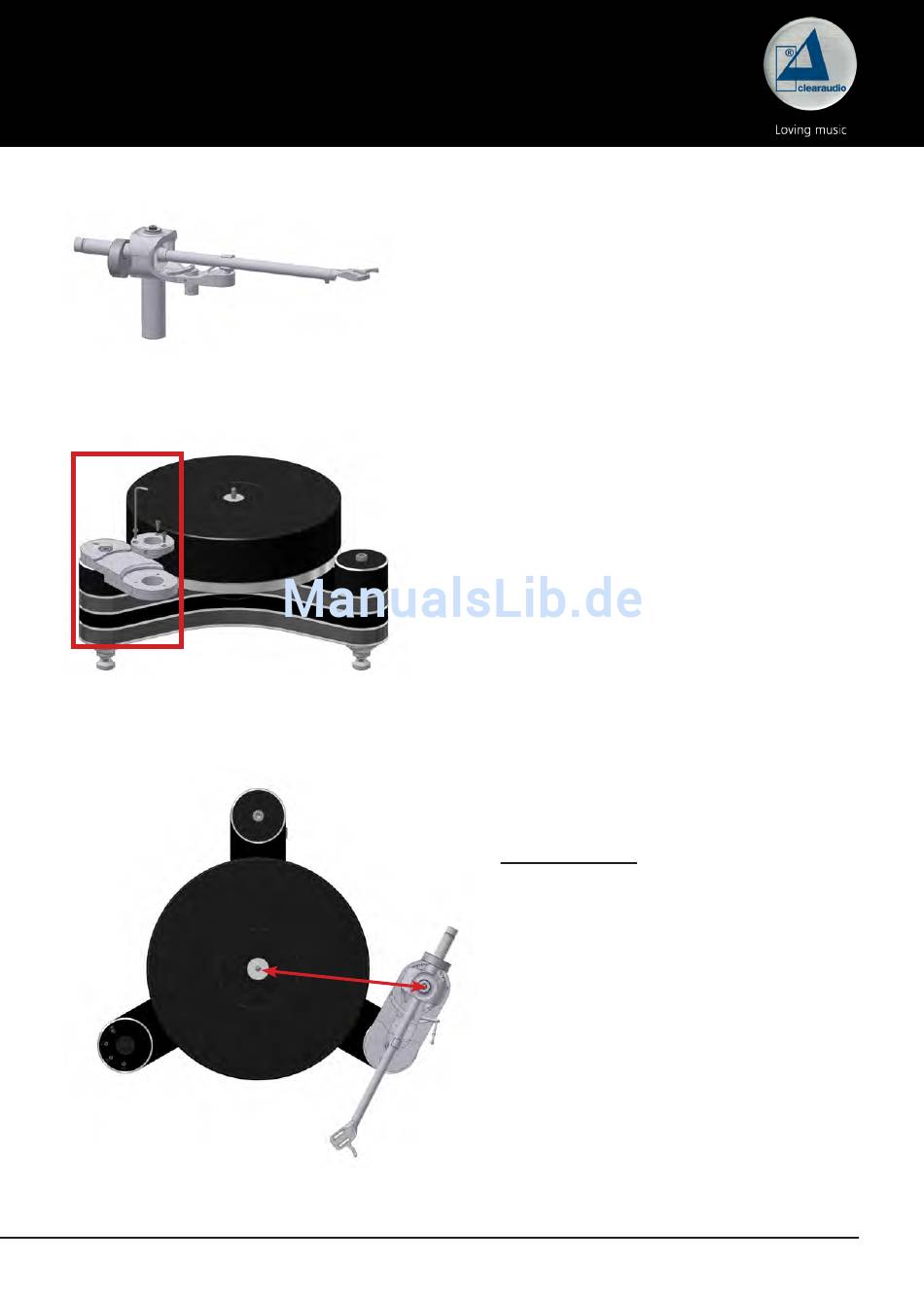

Pic. 6: tonearm without VTA-Lifter
1).
Tighten the mounting plate for the
Pic. 7: Placing the tonearmbase
2).
To adjust the pivot of the tonearm Clearaudio recommends the Clearaudio IEC alignment gauge
(Art. No.: AC005 / IEC; also available at www.analogshop.de).
Pic. 8: Distance from spindle to the pivot (222 mm)
Made in Germany
Magnify
tonearm with the screws onto the mounted tonearm
base. Please take the delivered screws.
Feed the tonearm cable through the mounting plate
and slide the tonearm feet through the drilling of
the mounting plate.
222 mm
Make sure that the distance from the spindle
to the pivot point (center) of the tonearm is
exact 222 mm. When moving the arm-
board in one or another direction you can set
the correct distance. After distance is adjus-
ted, tighten the screw of the armboard.
7
