Nibe UKV 200 Montageanleitung Seite 9

Pufferspeicher für heizsysteme
Vorschau ausblenden Andere Handbücher für UKV 200:
Inhaltsverzeichnis

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

Volume and flow increaser
52
6
44
85
In cases where the system volume in the radiator circuit is below 20 l/kW (heat pump output at 7/45 °C) and/or the
radiator flow is choked uncontrolled, a UKV tank (120) is installed as a volume and flow increaser. Plug any connections
that are not used.
Volume expansion
For large houses and apartment buildings, industrial premises or similar with supply air batteries.
The accumulator tank is used as a buffer for the supply air coil. Plug any connections that are not used.

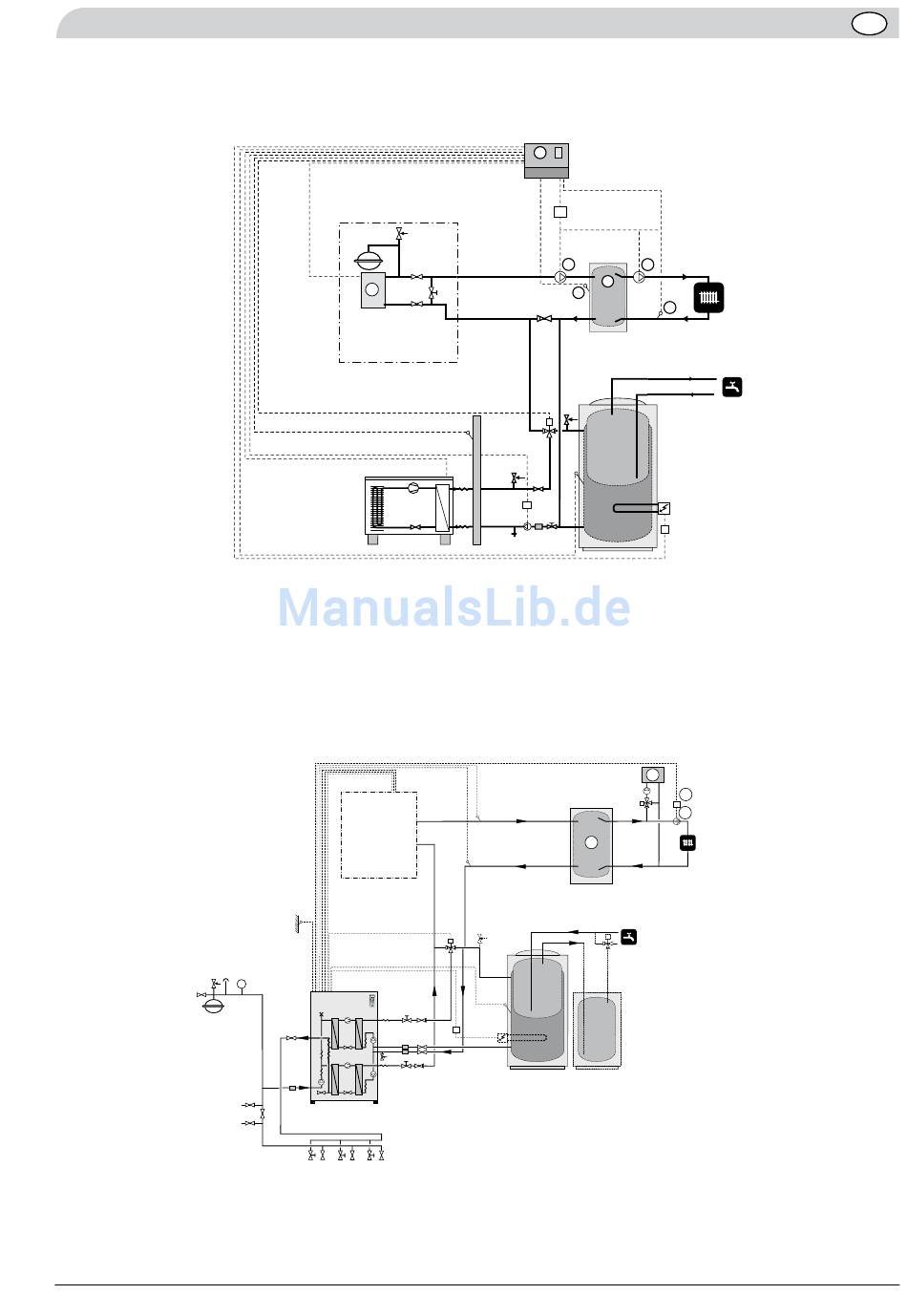

Note! These are outline diagrams. Actual installations must be planned according to applicable standards.
