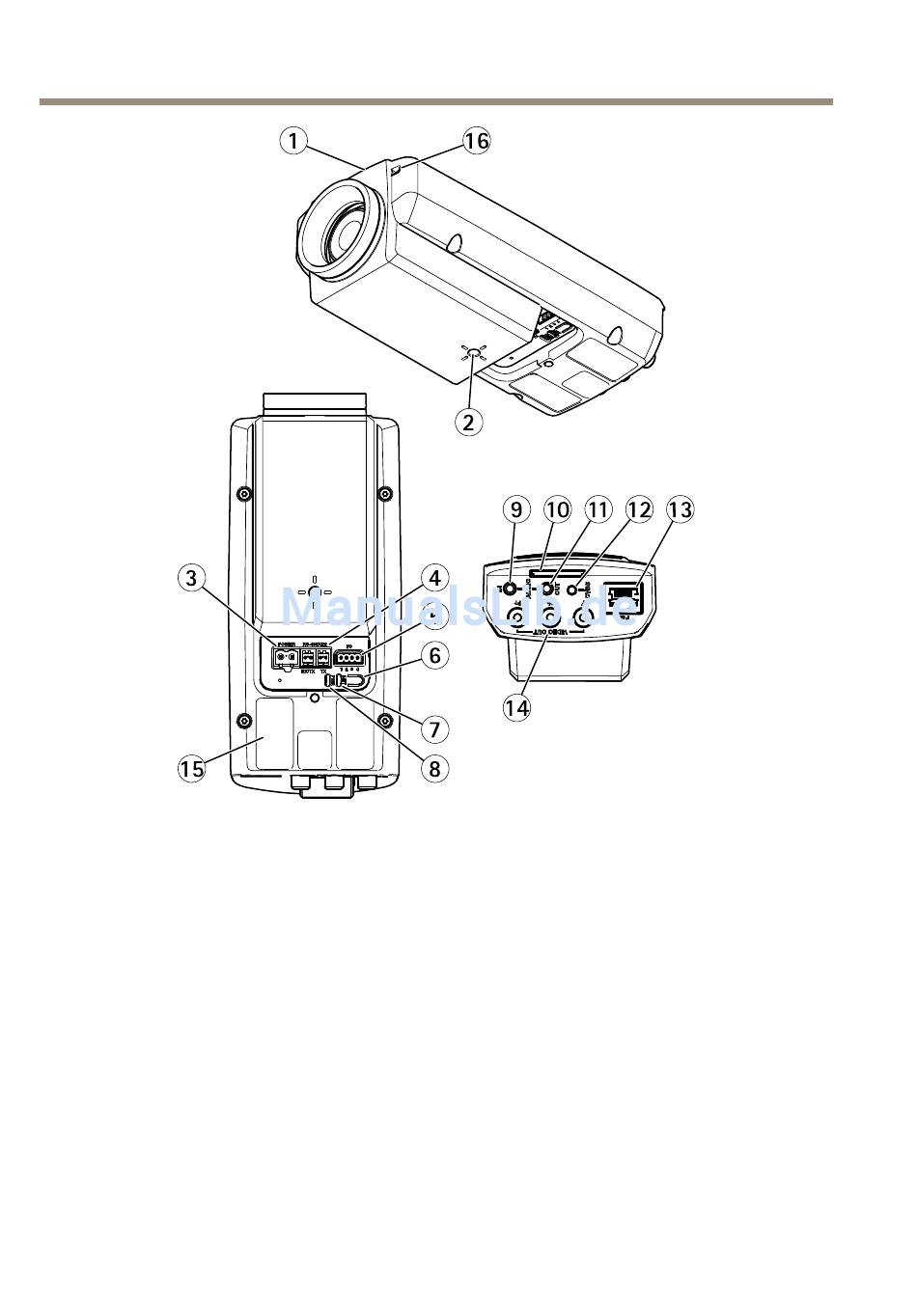

AXIS Q1775 Network Camera
1.
Status LED
2.
1/4" screw mount for wall/ceiling stand
3.
Power connector (blocked in AXIS Q1775-E)
4.
RS-485/422 connector
5.
I/O connector
6.
Control button
7.
Network indicator LED
8.
Power indicator LED
9.
Audio in
10. SD card slot
11. Audio out
12. CVBS button
13. Network connector (PoE)
14. Video out Y/Pb/Pr
