DESCRIPTION OF PRODUCT PARTS

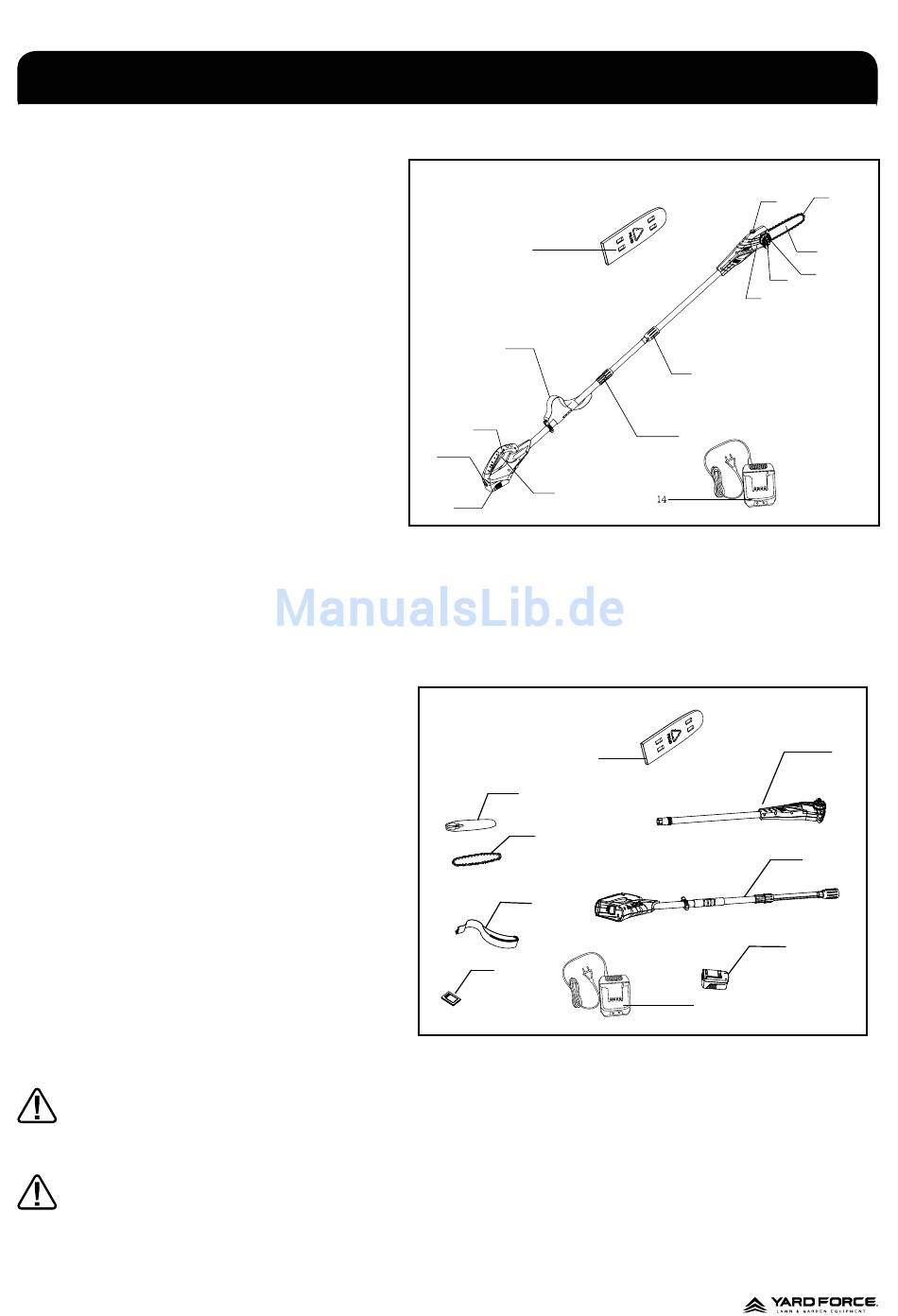

Parts list

As shown in Fig 1
1. Saw chain
2. Lubricating oil tank cap
3. Saw bar
4. Tension ring
5. Sprocket cover locking knob
6. Sprocket cover
7. Locking sleeve
8. Extension tube control sleeve
9. Shoulder strap
10. Safety button
11. Switch trigger
12. Battery pack
13. Locking/releasing button
14. Charger
15. Blade sheath
Check the delivery parts
Carefully remove the machine from its
packaging and check as the following parts
are complete:
As shown in Fig 2
A. Upper part of high pruner
B. Lower part of high pruner
C. Battery pack
D. Charger
E. Saw bar
F. Saw chain
G. Shoulder strap
H. Manual
I. Blade sheath
WARNING! If any parts are damaged or missing, do not operate this tool until the missing parts
are replaced. Failure to heed this warning could result in serious personal injury.
NOTE! Always recycle the packaging in accordance with local recycling schemes.
Fig.1
15
9
10
13
12
Fig.2
E
1pcs
1pcs
F
1pcs
1pcs
1pcs G
1pcs
1pcs
1pcs H
1pcs
33
7
8
11
I
D
1
2
3
4
5
6
A
B
C
