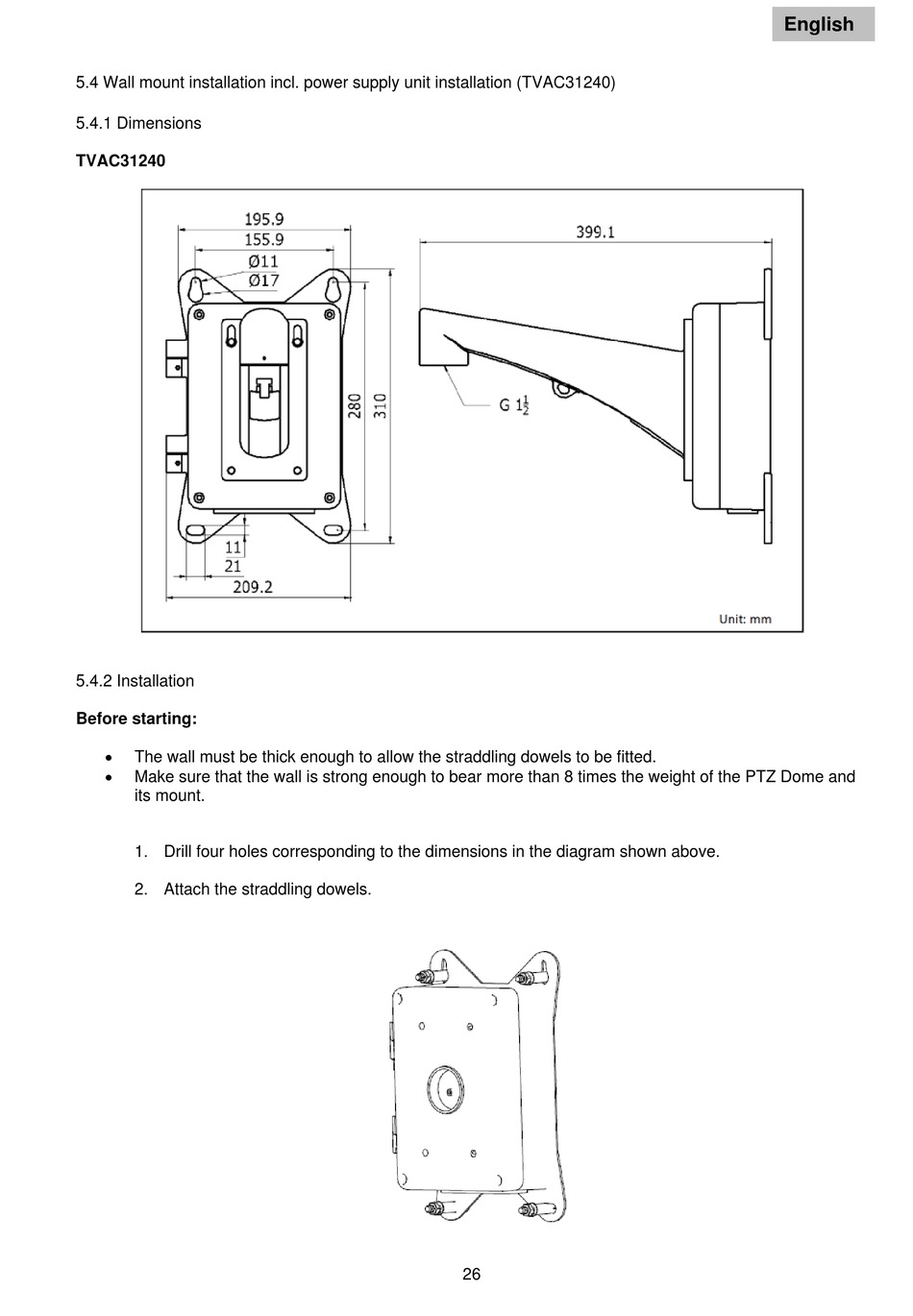

5.4 Wall mount installation incl. power supply unit installation (TVAC31240)
5.4.1 Dimensions
TVAC31240
5.4.2 Installation
Before starting:

The wall must be thick enough to allow the straddling dowels to be fitted.

Make sure that the wall is strong enough to bear more than 8 times the weight of the PTZ Dome and
its mount.
1. Drill four holes corresponding to the dimensions in the diagram shown above.
2. Attach the straddling dowels.
