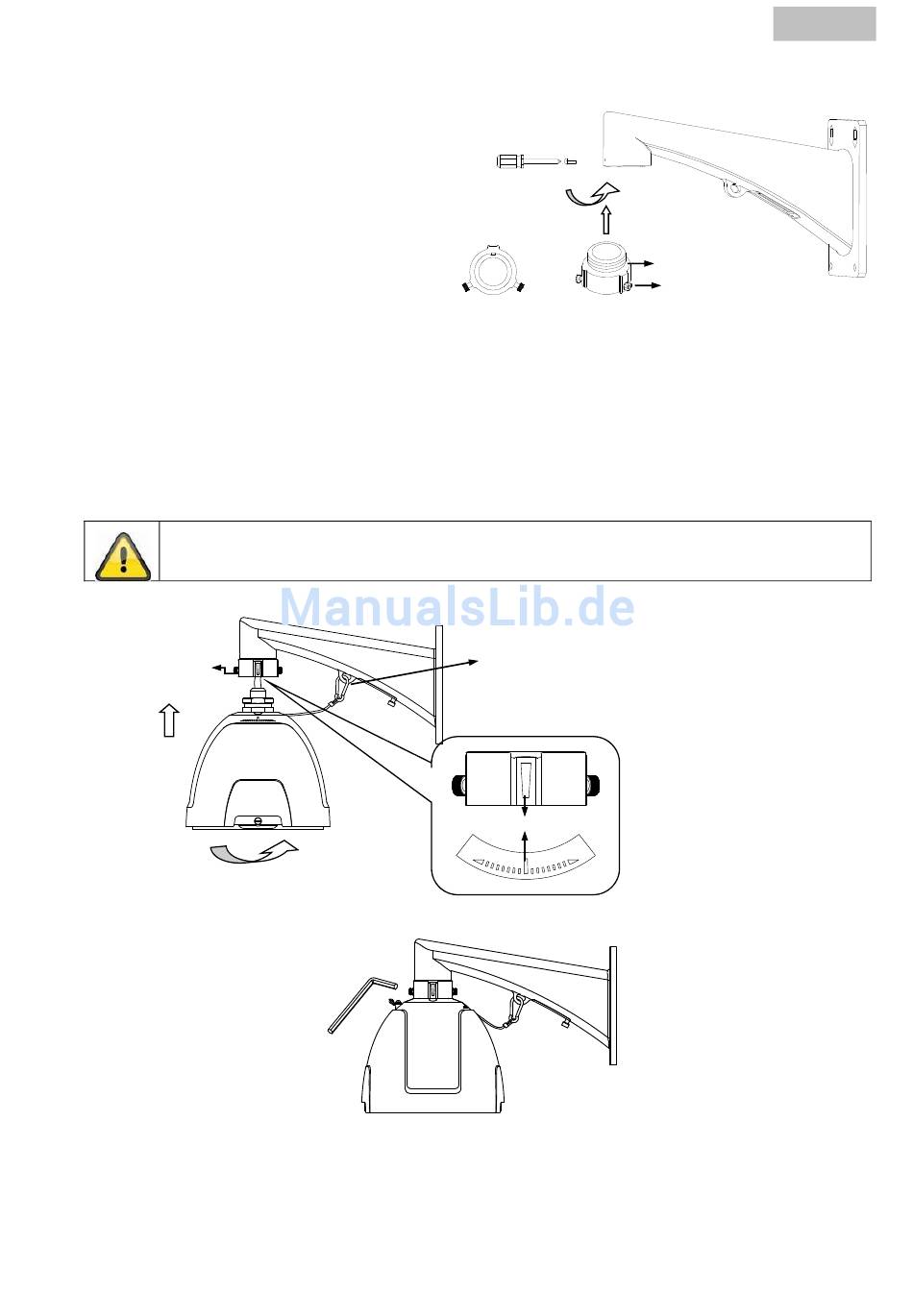

6. Hang the PTZ Dome from the mount using the fastening hook to help you. Then guide the cable
through the mount.
7. Align the label on the adapter with the PTZ Dome. Then tighten the housing by turning it clockwise.
Secure the adapter using the two fastening screws to help you.
To complete installation, remove the protective film from the dome.
