Installation instructions, only for experts

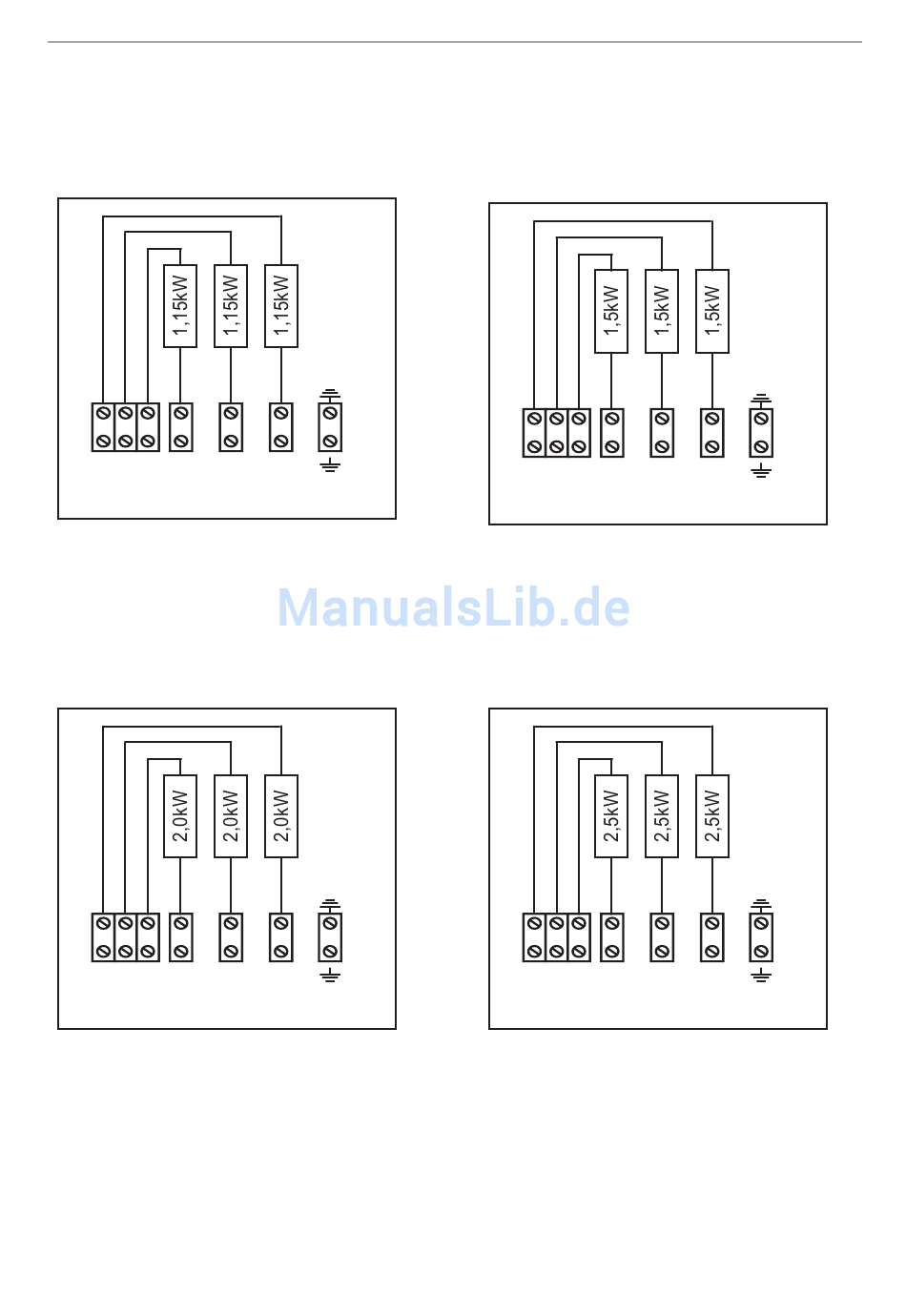

4.8. Wiring diagrams

U V W N
W
to the control unit
CP-RM-35
3.45 kW
U V W N
W
to the control unit
CP-RM-60
6.0 kW
N N
V U
N N
V U
U V W N N
W V
to the control unit
CP-RM-45
4.5 kW
U V W N N
W V
to the control unit
CP-RM-75
7.5 kW
p. 18/28
N
U
N
U
