Part No.
C012294-01
21-101683
24-250105
24-250106
24-250107
24-250226
27-250103
28-101102
29-088
31-1N914
34-2N3643
34-2N6044
37-45848
37-7400
37-74$00
37-7404
37-74H04
37-74$04
37-7407
37-7408
37-74$08
37-7410
37-7411
37-7414
37-7427
37-7432
37-74LS32
37-74$32
37-7442
37-7474
37-74$74
37-7475
37-7493
37-74109
37-74125
37-74LS139
37-74LS153
37-74153
37-74LS157
37-74$157
37-74160
Description
(Reference Designations and Locations in Bold)
Audio
1/0
N-Channel MOS/LSI Custom Chip
(PS/9)
.068 uf,
±
10%, Radial-Lead Epoxy-Dipped 100V Mylar Capacitor
(C6S-6S)
1 uf Aluminum Electrolytic Fixed Axial-Lead 25V Capacitor
(C76-79, 9S, 100-104)
10 uf Aluminum Electrolytic Fixed Axial-Lead 25V Capacitor
(C20, 23, 39)
100 uf Aluminum Electrolytic Fixed Axial-Lead 25V Capacitor
(C9, 10, 46, S7, 91)
22 uf Aluminum Electrolytic Fixed Axial-Lead 25V Capacitor
(C90)
.01 uf Ceramic-Disc 25V Radial-Lead Capacitor
(C76-79)
1000 pf Epoxy-Dipped 100V Radial-Lead Mica Capacitor
(C99, 10S)
:1 uf Ceramic-Disc 25V Radial-Lead Capacitor
(C1-S, 13-16, 1S, 19, 21, 22, 30, 3S, 43-4S, 47-S6,
5S-64, 69-7S, SO-S9, 92-97, 106)
75V Type-1 N914 Switching Diode
(CR2)
Type 2N3643 NPN Switching Transistor
(QS)
Type 2N6044 NPN Darlington Transistor
(Q1-3)
Type 14584 lntegrated Circuit
(C9, C11)
Type 7400 lntegrated Circuit
(CS, OS)
Type 74SOO lntegrated Circuit
(AS)
Type 7404 lntegrated Circuit
(E6, K7)
Type 74H04 lntegrated Circuit
(86)
Type 74S04 lntegrated Circuit
(07)
Type 7407 lntegrated Circuit
(N11)
Type 7408 lntegrated Circuit
(R2, J6, H7)
Type 74S08 lntegrated Circuit
(M3)
Type 7410 lntegrated Circuit
(E3, 8S)
Type 7411 lntegrated Circuit
(N3, F6)
Type 7414 lntegrated Circuit
(03, J9)
Type 7427 lntegrated Circuit
(87)
Type 7432 lntegrated Circuit
(C3, RS)
Type 74LS32 lntegrated Circuit
(J7)
Type 74S32 lntegrated Circuit
(C4, LS, K6)
Type 7442 lntegrated Circuit
(N2, ES)
Type 7474 lntegrated Circuit
(H6, A7, E7, F7, JS, A9)
Type 74S74 lntegrated Circuit
(A6, 8S, CS)
Type 7475 lntegrated Circuit
(R7)
Type 7493 lntegrated Circuit
(04)
Type 74109 lntegrated Circuit
(06)
Type 74125 lntegrated Circuit
(R6)
Type 74LS139 lntegrated Circuit
(P2, MS)
Type 74LS153 lntegrated Circuit
(FS, HS, JS, KS, P7)
Type 74153 lntegrated Circuit
(F3, H3, J3, K3)
Type 74LS157 lntegrated Circuit
(H2, J2, K2, l2, M2, M7, 09)
Type 74S157 lntegrated Circuit
(E4)
Type 74160 lntegrated Circuit
(ES)
Miss. Command

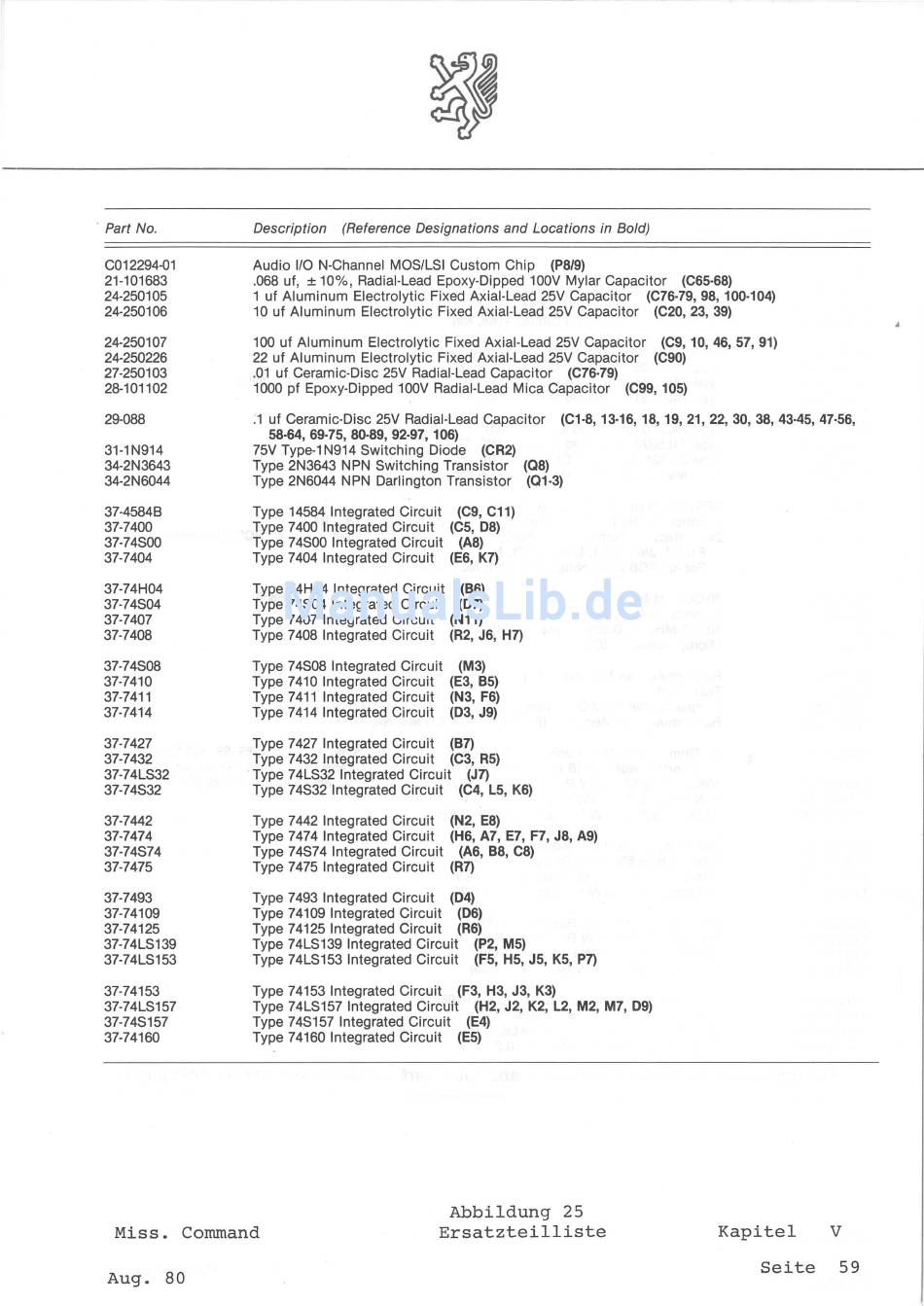

Abbildung 25
Ersatzteilliste
Kapitel
V
Aug. 80
Seite
59
