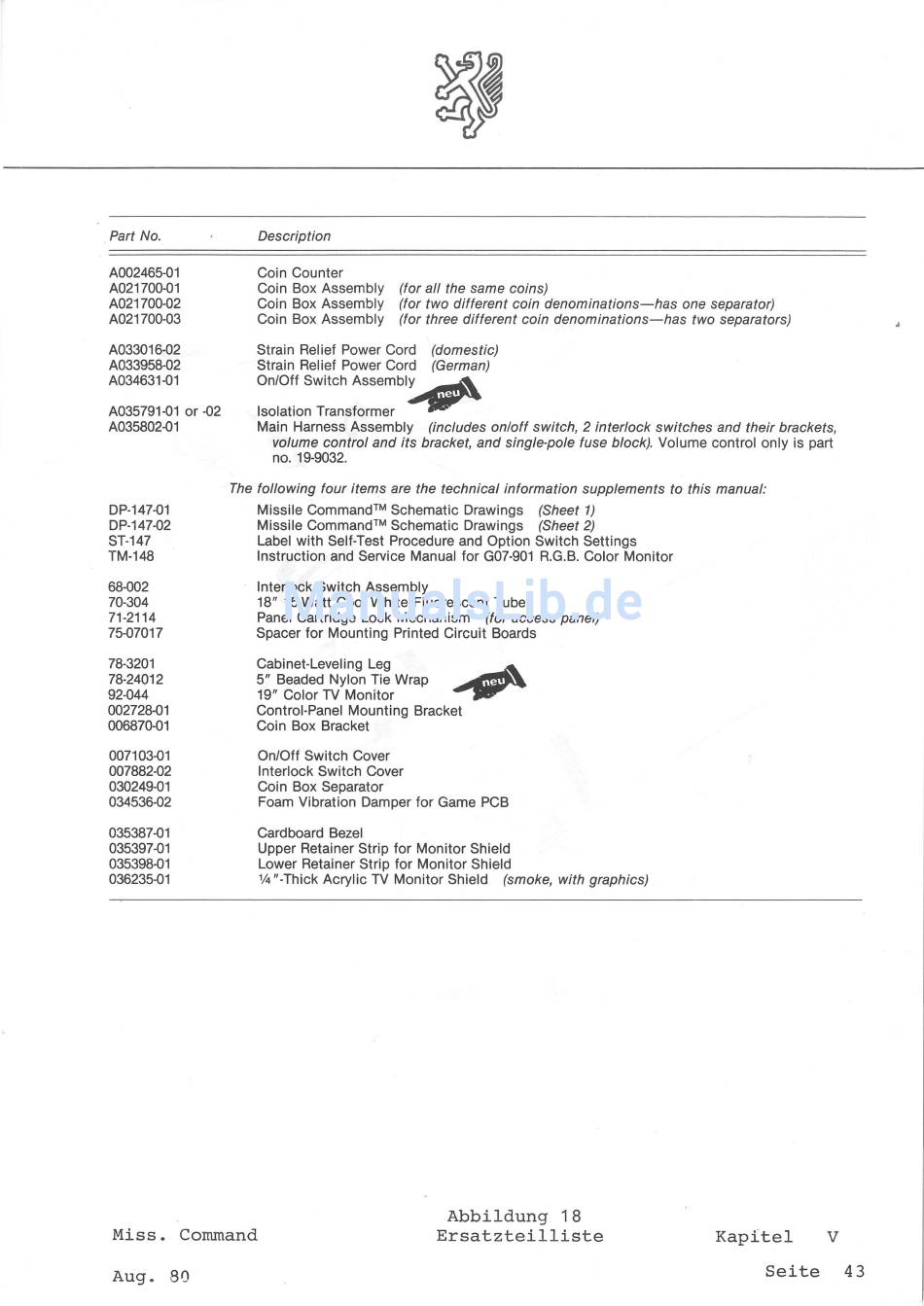

Part No.
A002465-01
A021700-01
A021700-02
A021700-03
A033016-02
A033958-02
A034631-01
A035791-01 or -02
A035802-01
DP-147-01
DP-147-02
ST-147
TM-148
68-002
70-304
71-2114
75-07017
78-3201
78-24012
92-044
002728-01
006870-01
007103-01
007882-02
030249-01
034536-02
035387-01
035397-01
035398-01
036235-01
Description
Goi n Counter
Coin Box Assembly
(for all the same coins)
Coin Box Assembly
(for two different coin denominations-has one separator)
Coin Box Assembly
(for three different coin denominations-has two separators)
Strain Relief Power Cord
(domestic)
Strain Relief Power Cord
(German)
On/Off Switch
Assembl~
Isolation Transformer
Main Harness Assembly
(inc/udes on/off switch, 2 interlock switches and their brackets,
volume control and its bracket, and single-pole fuse block). Volume control only is part
no. 19-9032.
The fol/owing four items are the technical information supplements to this manual:
Missile Command™ Schematic Drawings
(Sheet 1)
Missile Command™ Schematic Drawings
(Sheet 2)
Label with Seif-Test Procedure and Option Switch Settings
lnstruction and Service Manual for G07-901 R.G.B. Color Monitor
lnterlock Switch Assembly
18" 15-Watt Cool White Fluorescent Tube
Panel Cartridge Lock Mechanism
(for access panel)
Spacer for Mounting Printed Circuit Boards
Cabinet-Leveling Leg
~
5" Beaded Nylon Tie Wrap
-
19" Color TV Monitor
Control-Panel Mounting Bracket
Coin Box Bracket
On/Off Switch Cover
lnterlock Switch Cover
Goi n Box Separator
Foam Vibration Damper for Game PCB
Cardboard Bezel
Upper Retainer Strip for Monitor Shield
Lower Retainer Strip for Monitor Shield
1/4 "-Thick Acrylic TV Monitor Shield
(smoke, with graphics)
Miss. Cornmand
