Part No.
10-5331
10-5392
10-5471
27-250104
29-046
34-2N3643
79-58005
030369-01
Description
(Reference Designations and Locations in Bold)
330 Ohm,
±
5%, 1/4 W Carbon Composition Resistor
(R10-13)
3.9K Ohm,
±
5%, 1/4W Carbon Composition Resistor
(R14, 15)
470 Ohm,
±
5%, 1/4W Carbon Composition Resistor
(R7-8)
0.1 uf, ± 20%, 25V Ceramic-Disk Radial-Lead Capacitor
(C2)
10 uf,
±
10%, 20V Tantalum Axial-Lead Capacitor
(C1)
Type 2N3643 Switching Transistor
(Q1, 2)
10-Contact Connector
Radial Optical Coupler
Miss. Command

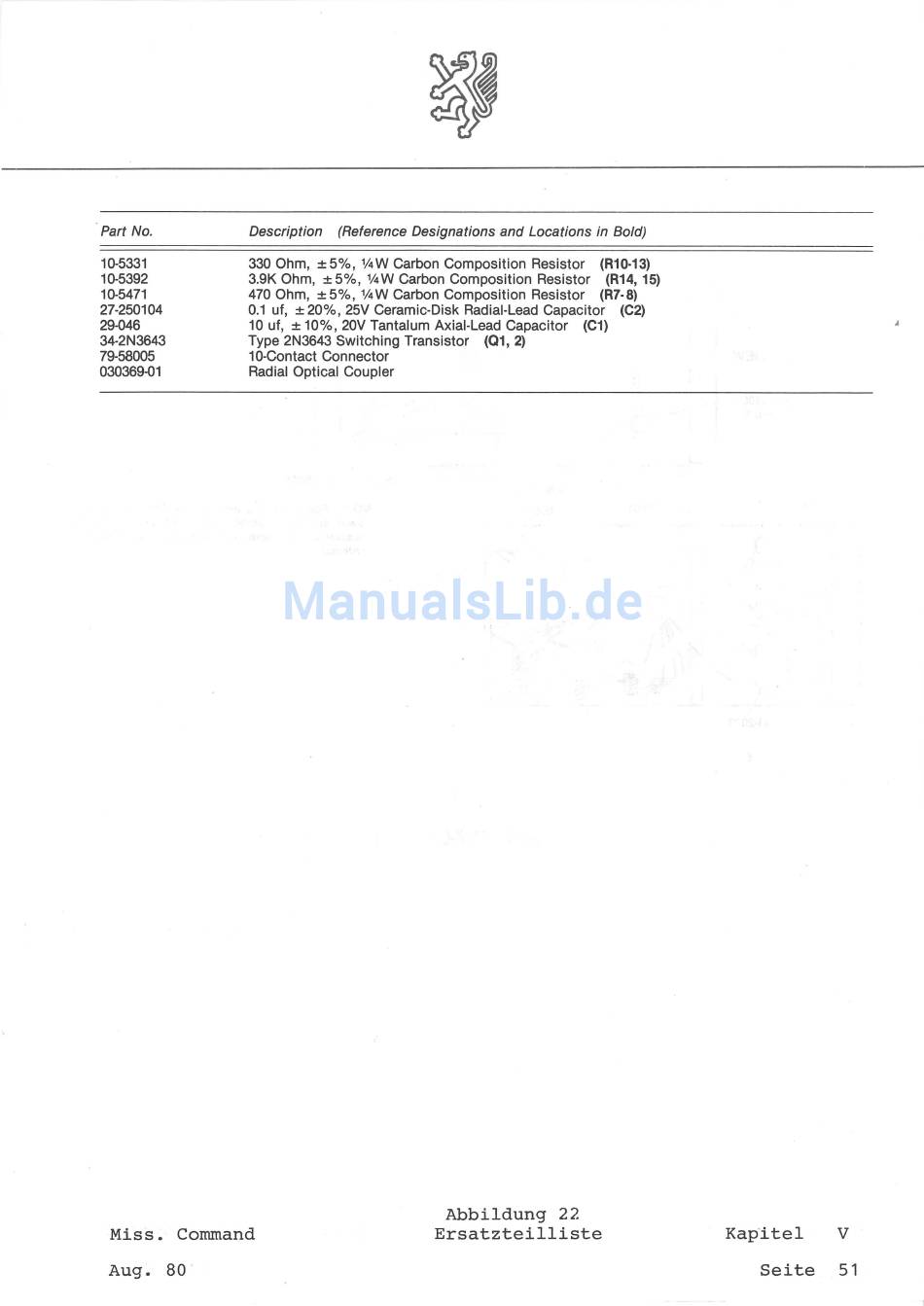

Abbildung 22
Ersatzteilliste
Aug. 80
,
