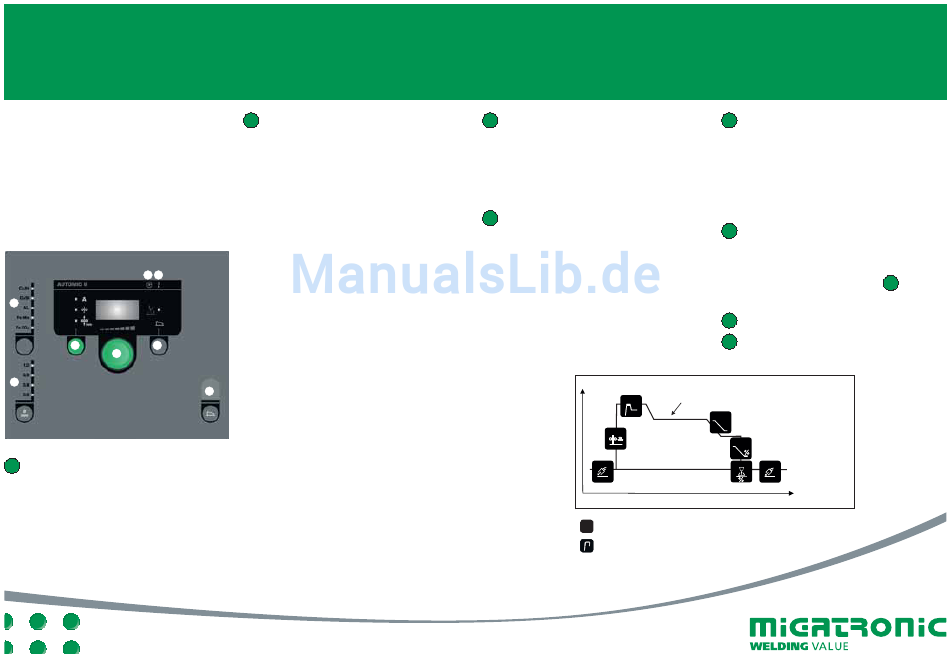

AUTOMIG II CONTROL PANEL
I. Switch on the machine
II. Select type of material and
wire diameter
III. Set one of the following parameters:
welding current, wire feed speed or
thickness of material
IV. Trim the arc length, if required
A B
1
3 4
5
2
1 Selecting type of material
Press the key until the LED is lit at the
relevant material.
2 Selecting wire diameter
Press the key until the LED is lit at the
relevant wire diameter.
Selection of AlMg/AlSi programs:
1. Select material the material type
"Al"
2. Select material type 0.9 or 1.0 mm
3. Keep the material key pressed for
5 sec until the "Al" LED is switched
off as indication of entrance to set-
up mode.
The display shows
319 (0.9 mm AlMg ER5356),
359 (0.9 mm AlSi5 ER4043) or
369 (0.9 mm AlMg3Mn ER5554)
if 0.9 mm wire has been selected, or
312 (1.0 mm AlMg ER5356/ER5554),
352 (1.0 mm AlSi5 ER4043) or
372 (1.0 mm AlSi12 ER4047)
if 1.0 mm wire has been selected.
6
4. Turn the control knob back and
forth until the correct program is
displayed.
5. The program is selected by one more
press on the material key knob, and
the machine will return to normal
mode.
Reset function
Press and hold the key for 5 seconds.
Flashing LED indicates that the relevant
program is reset to factory settings.
QUICKGUIDE AUTOMIG
3 Primary parameters
Set one of the following primary
parameters at your own option and
according to relevance: welding current,
wire feed speed or thickness of material;
the parameters are closely connected in
the machine.
4 Arc length
The arc length can be adjusted as
required. Press the key under the symbol
and turn the control knob until the
desired arc length is achieved (-9.9 to
+9.9).
Hotstart (t)
A
4
t
3
Soft start
(m/min.)
m/min
2
t1
Gas pre flow (t)
S
Arc adjust (electronic choke)
1
Remote control
5 Control knob
Adjustment of welding current, wire
feed speed, thickness of material or
arc length. Inching speed is adjustable
during wire inching. If the key for
secondary parameters is active, it
is possible to trim the secondary
parameters.
6 Secondary parameters
Press the key until the desired
parameter is shown on the display. Turn
the control knob until the requested
value is displayed. Press key
to finish.
A Welding voltage
B Warning – overheating
Set welding current (A)
5
Slope down (t)
t
9
Stop amp (%)
6
7
t
t2
Gas post flow (t)
S
Burnback
t
2
UK
3 briefly
