Remove the collecting funnel (A) of the rain sen-
•
sor (B) from the packaging.

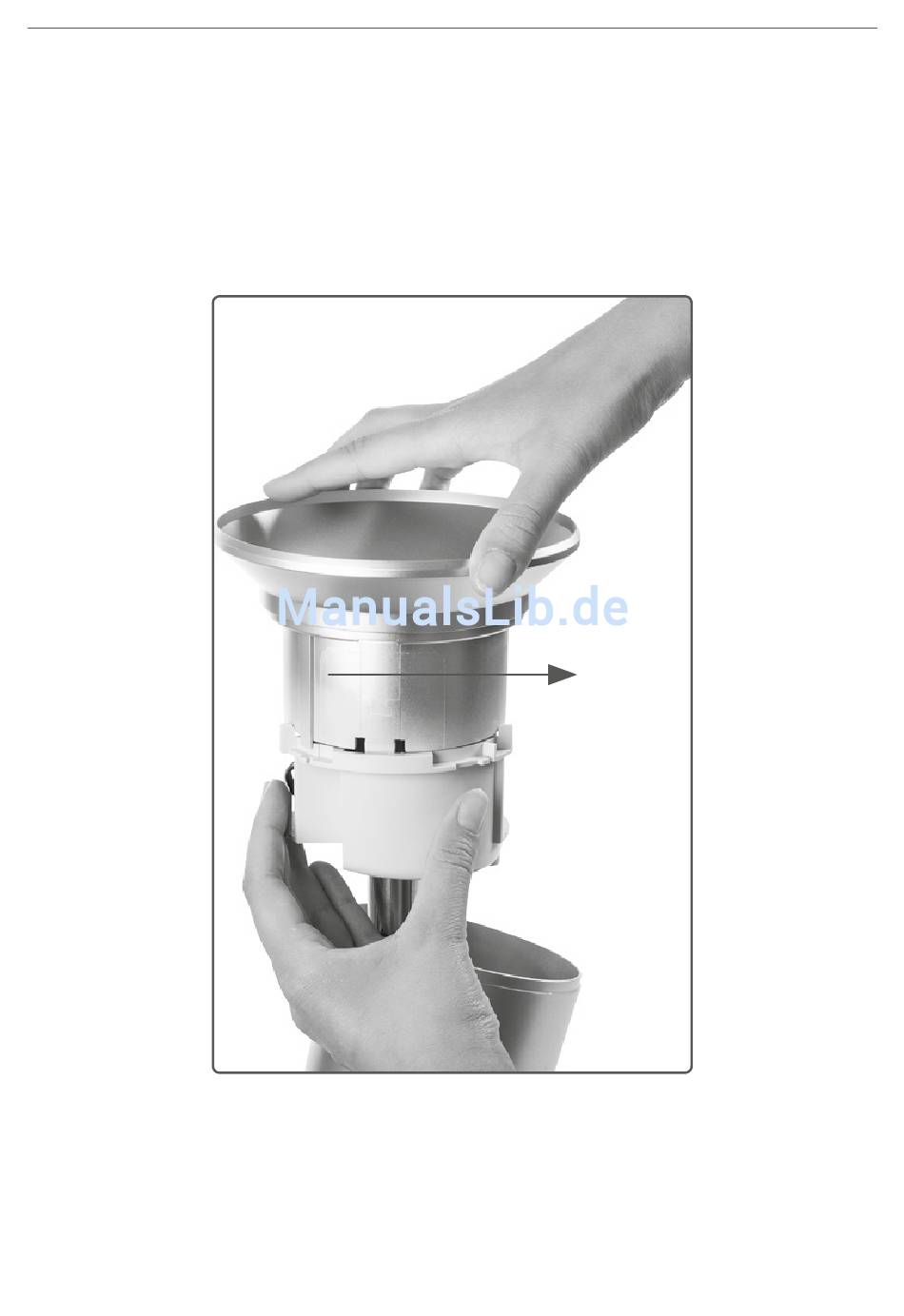

• Place the collecting funnel onto the sensor sup-
port of pipe 1 (C) from above and latch it into
place by turning it clockwise.
• Slide the cover from the bottom over the sensor
support and latch it into place by turning it an-
ti-clockwise in the sensor support.
Mounting
