Please carefully read the installation instruction.
Illustrations of cabinet dimensions and installation position of the dishwasher
Preparations should be made before moving the dishwasher to the installation place.
1
Choose a place near the sink to facilitate the installation of inlet and drain hoses
(see figure 1).
2
If dishwasher is installed at the corner of the cabinet, there should be some space
(illustrated in figure 2) when the door is opened.
【 】
Figure1
Cabinet dimensions
Less than 5mm
between the top
of dishwasher and
cabinet and the
outer door aligned
to cabinet.
【 】
Figure2
Minimum space when
the door is opened
●

Aesthetic panel's dimensions and installation

1

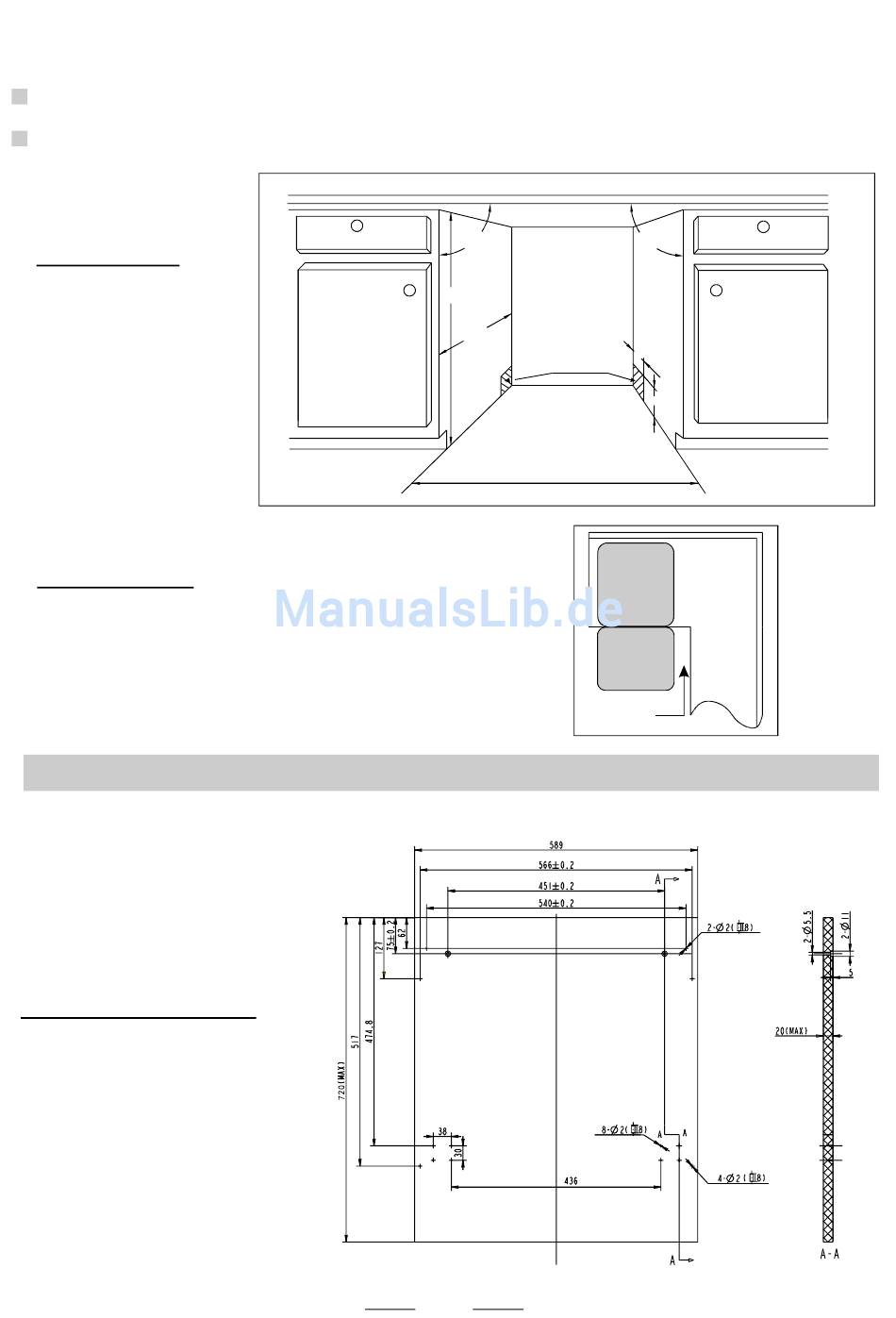

The aesthetic wooden panel could be processed according to the Figure 3.
【 】
Figure3
The aesthetic panel should
be processed in accordance
with the illustrated dimensions
(Unit: mm)
90 °
820mm
580mm
Electrical, drain and
water supply line
entrances
Space between cabinet
bottom and floor
600 mm
Dishwasher
Minimum space of 50mm
16
90 °
80
100
Cabinet
Door of
dishwasher
