Alarm output
"H" (OFF) is output when the unit enters the alarm state.
This is set to "L" (ON) by pressing the reset key or by the I/O
connector reset input after eliminating the various causes
of the alarm.
Comparator value selection input
The four comparator value pairings set in the counter unit
can be selected.
Pin #5 #5 #5 #5 #5 Pin #6 #6 #6 #6 #6
(Upper limit CPH, lower limit CPL)
CPH1, CPL1
H H
CPH2, CPL2
L H
CPH3, CPL3
H L
CPH4, CPL4
L L
DRQ display/output hold feature
While the DRQ signal is "L" (ON) the display and output
(BCD, Go/No Go output of I/O connector) of termianls are
stored.
(When the BCD output form is set to
output data is held on DRQ becoming "H" (OFF).)
However, when the initial settings of pins w and r of the I/O
connector (common) are changed from
the time of shipping to
display and I/O connector Go/No Go output is enabled only for
pins w and r of the I/O connector (common), and the DRQ
hold is valid only for the BCD output data.
LT20A / LT30 Series
Comparator value
, only the BCD
which was set at
, the hold function for the

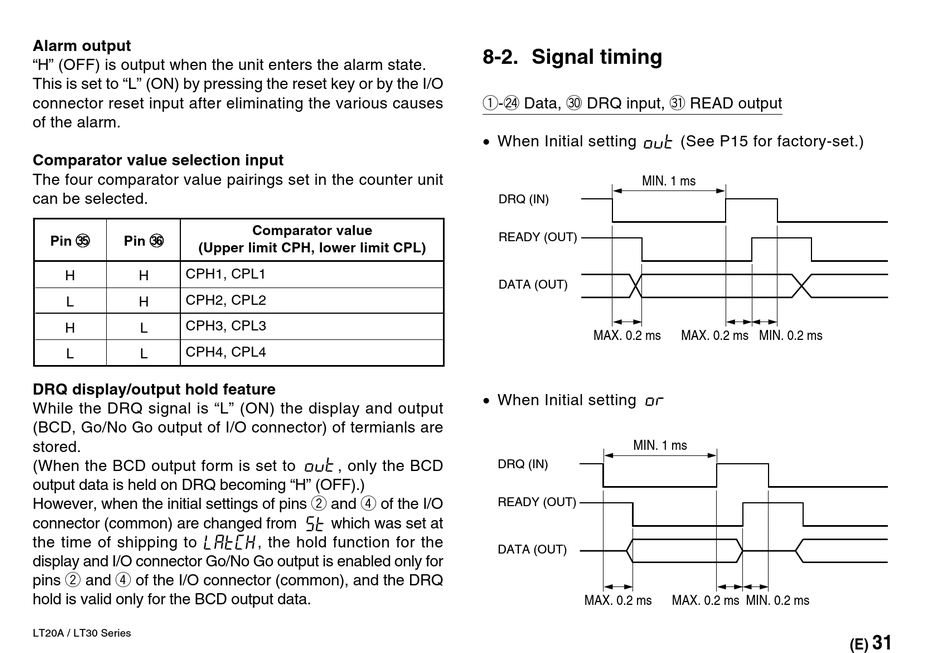

8-2. Signal timing

q-@4 Data, #0 DRQ input, #1 READ output
• When Initial setting
MIN. 1 ms
DRQ (IN)
READY (OUT)
DATA (OUT)
MAX. 0.2 ms
• When Initial setting
MIN. 1 ms
DRQ (IN)
READY (OUT)
DATA (OUT)
MAX. 0.2 ms
(See P15 for factory-set.)
MAX. 0.2 ms MIN. 0.2 ms
MAX. 0.2 ms MIN. 0.2 ms
(E)
31
