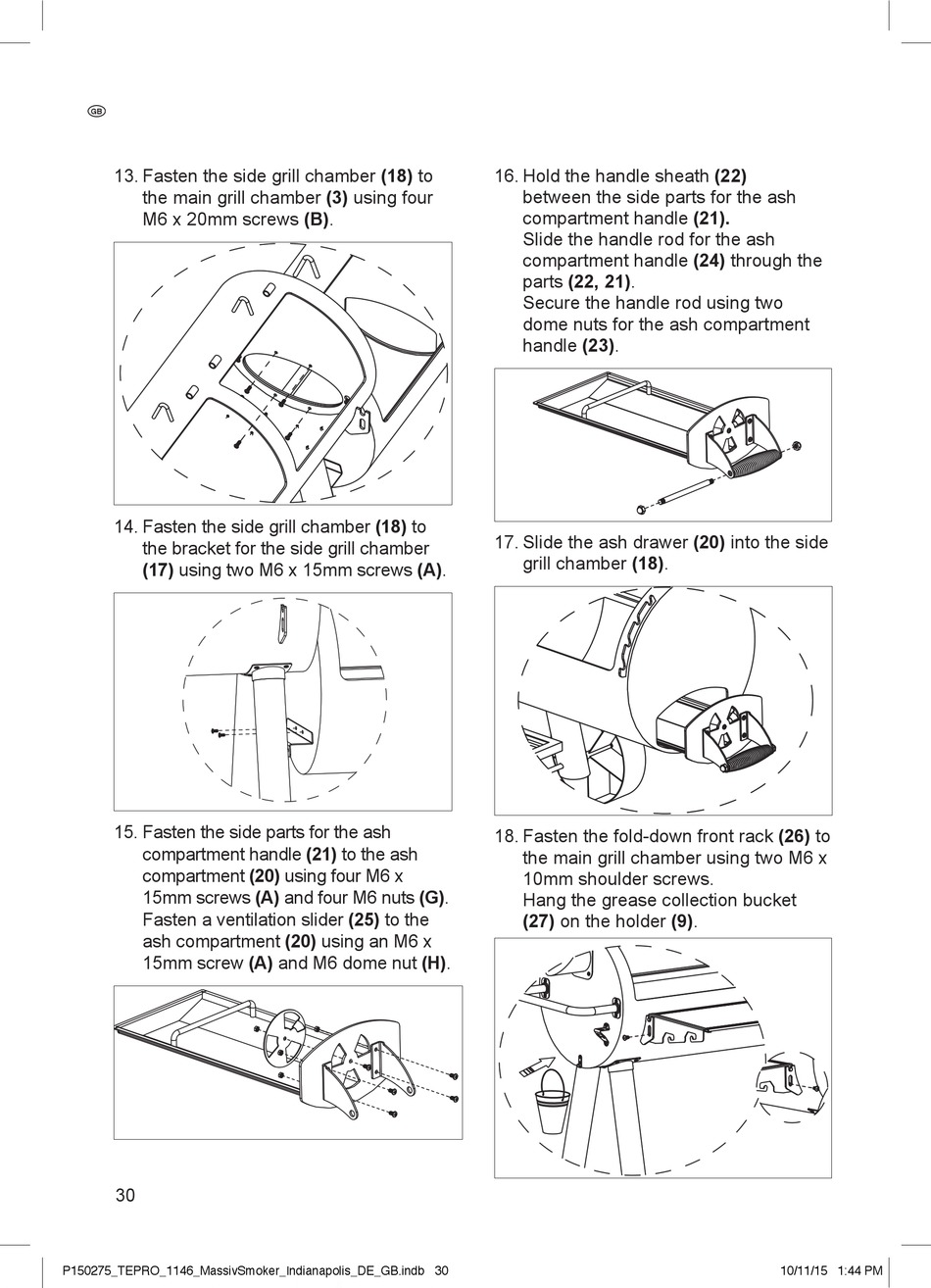

13. Fasten the side grill chamber (18) to
the main grill chamber (3) using four
M6 x 20mm screws (B).
14. Fasten the side grill chamber (18) to
the bracket for the side grill chamber
(17) using two M6 x 15mm screws (A).
15. Fasten the side parts for the ash
compartment handle (21) to the ash
compartment (20) using four M6 x
15mm screws (A) and four M6 nuts (G).
Fasten a ventilation slider (25) to the
ash compartment (20) using an M6 x
15mm screw (A) and M6 dome nut (H).
30
P150275_TEPRO_1146_MassivSmoker_Indianapolis_DE_GB.indb 30
16. Hold the handle sheath (22)
between the side parts for the ash
compartment handle (21).
Slide the handle rod for the ash
compartment handle (24) through the
parts (22, 21).
Secure the handle rod using two
dome nuts for the ash compartment
handle (23).
17. Slide the ash drawer (20) into the side
grill chamber (18).
18. Fasten the fold-down front rack (26) to
the main grill chamber using two M6 x
10mm shoulder screws.
Hang the grease collection bucket
(27) on the holder (9).
