required tools

1 x Phillips screwdriver
1 x Adjustable spanner

Assembling the grill

1. Unpack the grill and dispose of
all packaging materials. Keep the
packaging materials out of the reach
of children and dispose of them
according to regulations after grill
assembly.

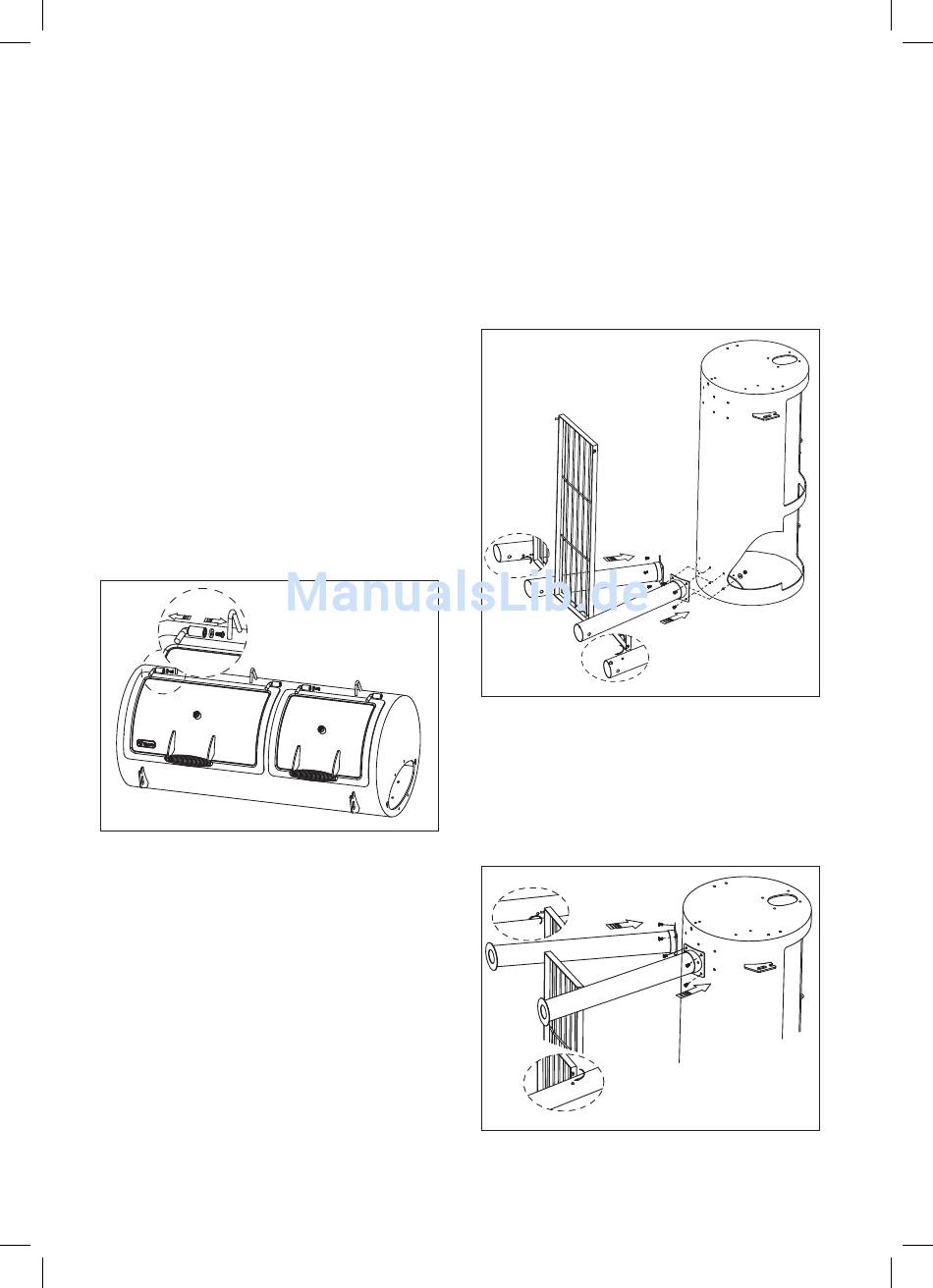

2. Remove the lids (1+2) from the main
grill chamber (3) by removing the
hinge screws. Then pull the hinge
pins out of the hinges of the main grill
chamber.
P150275_TEPRO_1146_MassivSmoker_Indianapolis_DE_GB.indb 27
3. Hook the rack grille (6) into the holes
on the wheel legs (4).
Fasten the wheel legs (4) to the right
on the underside of the main grill
chamber (3) using eight M6 x 15mm
screws (A), eight washers (F), and
eight M6 nuts (G).
4. Hook the rack grille (6) into the holes
of the support legs (5).
Fasten the support legs (5) to the
left on the underside of the main grill
chamber (3) using eight M6 x 15mm
screws (A), eight washers (F), and
eight M6 nuts (G).
