3. Layout, Connections & LED's

3.3 LED's

Status LED's:
LED Name
Link/Act
LAN TX/RX

4. Hardware Installation

Because there are large differences between PC's and Networks, we can give you only
a general installation guide. Please refer your computer's reference manual whenever
in doubt.
1. Install the EX-6030 according to your wishes at a wall mounting, server rack etc..

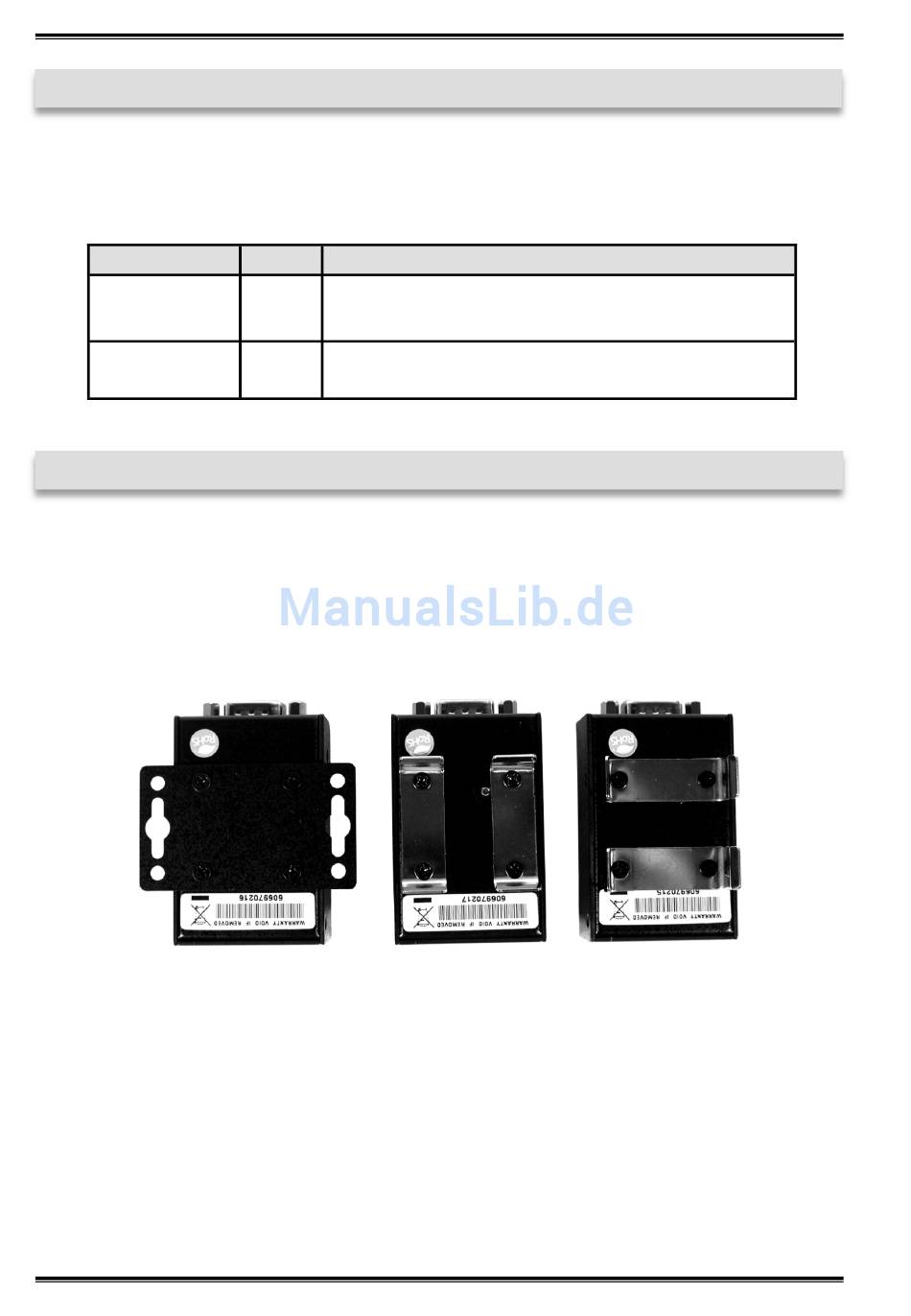

Wall Mounting
2. Now connect the EX-6030 with a normal patch cable (Crossover Cable not required).
3. Now you can connect your serial device to the 9-pin D-SUB connector of the EX-
6030.
4. Connect the included power supply to the DC connector at the EX-6030.
© Copyright 2017 by EXSYS Vertriebs GmbH. All Rights Reserved
Color
Continuously on: Connected in 100Mbps Mode
Green Flash:
Off:
Yellow Flash:
Din-Rail Vertical
LED Function
Transmit Data
Network connection is disconnected
Transmit/Receive Data
Din-Rail Horizontal
18
EX-6030
