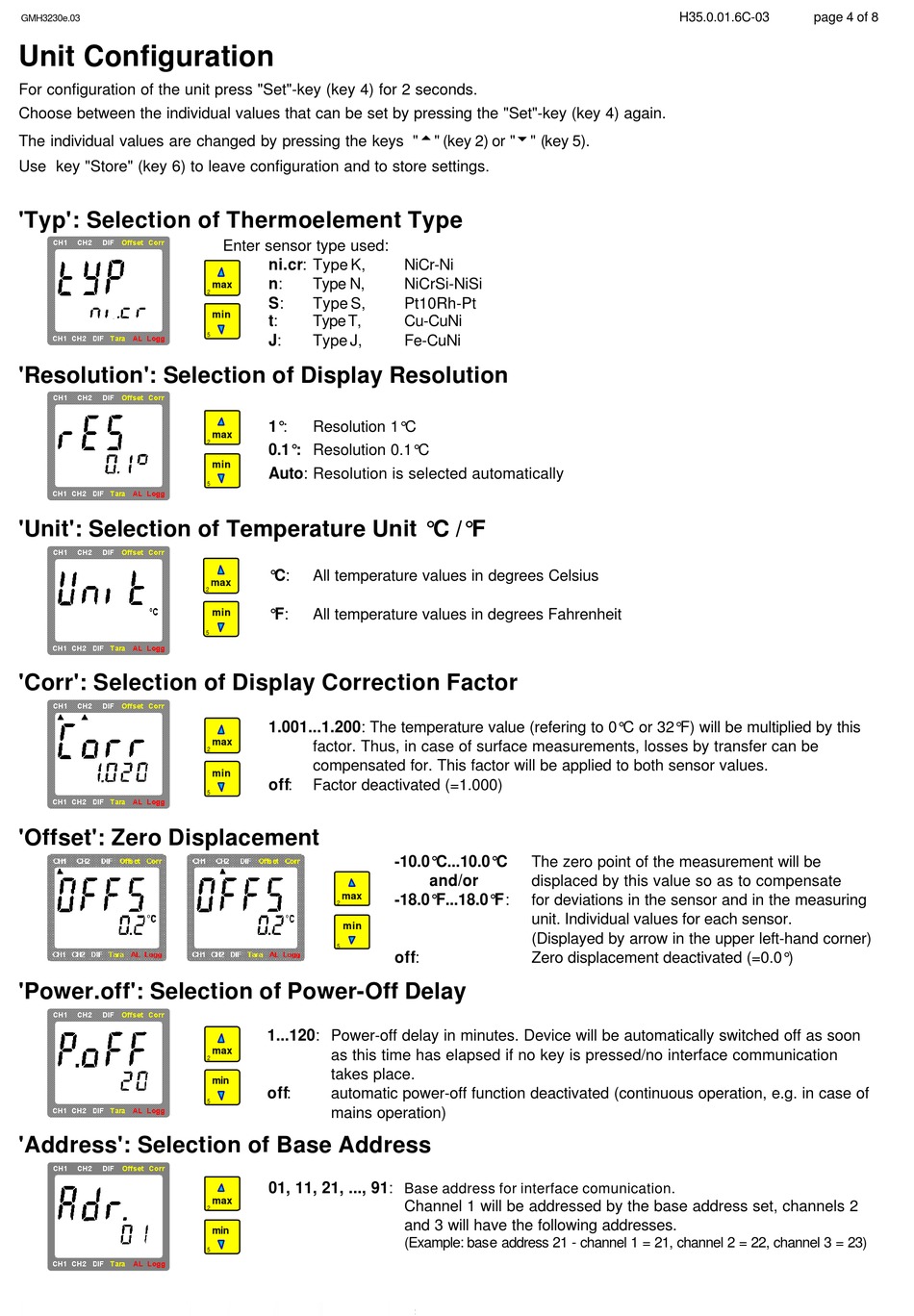

Unit Configuration

For configuration of the unit press "Set"-key (key 4) for 2 seconds.
Choose between the individual values that can be set by pressing the "Set"-key (key 4) again.
The individual values are changed by pressing the keys "5" (key 2) or "6" (key 5).
Use key "Store" (key 6) to leave configuration and to store settings.
'Typ': Selection of Thermoelement Type
'Resolution': Selection of Display Resolution
'Unit': Selection of Temperature Unit °C /°F
'Corr': Selection of Display Correction Factor
'Offset': Zero Displacement
'Power.off': Selection of Power-Off Delay
'Address': Selection of Base Address
Enter sensor type used:
ni.cr: Type K,
n:
Type N,
max
2
S:
Type S,
min
t:
Type T,
5
J:
Type J,
1°:
Resolution 1°C
max
2
0.1°: Resolution 0.1°C
min
Auto: Resolution is selected automatically
5
°C:
All temperature values in degrees Celsius
max
2
°F:
All temperature values in degrees Fahrenheit
min
5
1.001...1.200: The temperature value (refering to 0°C or 32°F) will be multiplied by this
max
factor. Thus, in case of surface measurements, losses by transfer can be
2
compensated for. This factor will be applied to both sensor values.
min
off:
Factor deactivated (=1.000)
5
max
2
min
5
1...120: Power-off delay in minutes. Device will be automatically switched off as soon
max
as this time has elapsed if no key is pressed/no interface communication
2
takes place.
min
off:
automatic power-off function deactivated (continuous operation, e.g. in case of
5
mains operation)
01, 11, 21, ..., 91:
max
2
min
5
NiCr-Ni
NiCrSi-NiSi
Pt10Rh-Pt
Cu-CuNi
Fe-CuNi
-10.0°C...10.0°C
The zero point of the measurement will be
and/or
displaced by this value so as to compensate
-18.0°F...18.0°F:
for deviations in the sensor and in the measuring
unit. Individual values for each sensor.
(Displayed by arrow in the upper left-hand corner)
off:
Zero displacement deactivated (=0.0°)
Base address for interface comunication.
Channel 1 will be addressed by the base address set, channels 2
and 3 will have the following addresses.
(Example: base address 21 - channel 1 = 21, channel 2 = 22, channel 3 = 23)
