Was ist was?
Quels sont les
1. Hauptschalter
composants ?
2. STOP-Taste
1. Interrupteur principal
3. Ladekontakte
2. Bouton STOP
4. LED für Funktionsprüfung
3. Contacts de charge
des Begrenzungskabels
4. LED de fonctionnement
und Suchkabels
du câble périphérique et
5. Schnitthöhenanzeige
du câble guide
6. Display
5. Indication de la hauteur
7. Tastatur
de coupe
8. Ladestation
6. Écran
9. Transformator
7. Clavier
10. Niederspannungskabel
8. Station de charge
11. Begrenzungs- und
9. Transformateur
Suchkabel
10. Câble basse tension
12. Verbinder
11. Câble périphérique et
13. Haken
guide
14. Verbinder
12. Coupleurs
15. Lineal
13. Cavaliers
16. Schrauben zum Befestigen
14. Raccords
der Ladestation
15. Règle
16. Vis pour fixation de la
station de charge
AUTOMOWER
®
ist eine Marke von Husqvarna AB. Copyright © 2013 HUSQVARNA. Alle Rechte vorbehalten.
AUTOMOWER
est une marque déposée appartenant à Husqvarna AB. Copyright © 2013 HUSQVARNA. Tous droits réservés
®
AUTOMOWER
è un marchio di proprietà di Husqvarna AB. Copyright © 2013 HUSQVARNA. Tutti i diritti riservati.
®
AUTOMOWER
is a trademark owned by Husqvarna AB. Copyright © 2013 HUSQVARNA. All rights reserved.
®
115 59 36-39
QG,1155936-,305-308,2014.indd 1
5
6
7
8
30 cm
20 cm
13
15
14
5 cm
Descrizione delle parti
What is what?
1. Interruttore principale
1. Main switch
2. Pulsante STOP
2. STOP button
3. Striscia di ricarica
3. Charging strip
4. LED per il controllo del
4. LED for function check
funzionamento dei cavi
of the boundary and
perimetrale e guida
guide wires
5. Indicazione dell'altezza di
5. Cutting height indication
taglio
6. Display
6. Display
7. Keypad
7. Tastiera
8. Charging station
8. Stazione di ricarica
9. Transformer
9. Trasformatore
10. Low voltage cable
10. Cavo a bassa tensione
11. Wire for boundary and
11. Matassa per cavo
guide
perimetrale e guida
12. Couplers
12. Giunti
13. Staples
13. Picchetti
14. Connectors
14. Connettori
15. Measurement gauge
15. Astina di misurazione
16. Screws for securing the
16. Chiodi per fissare la
charging station
stazione di ricarica
www.automower.com
9
16

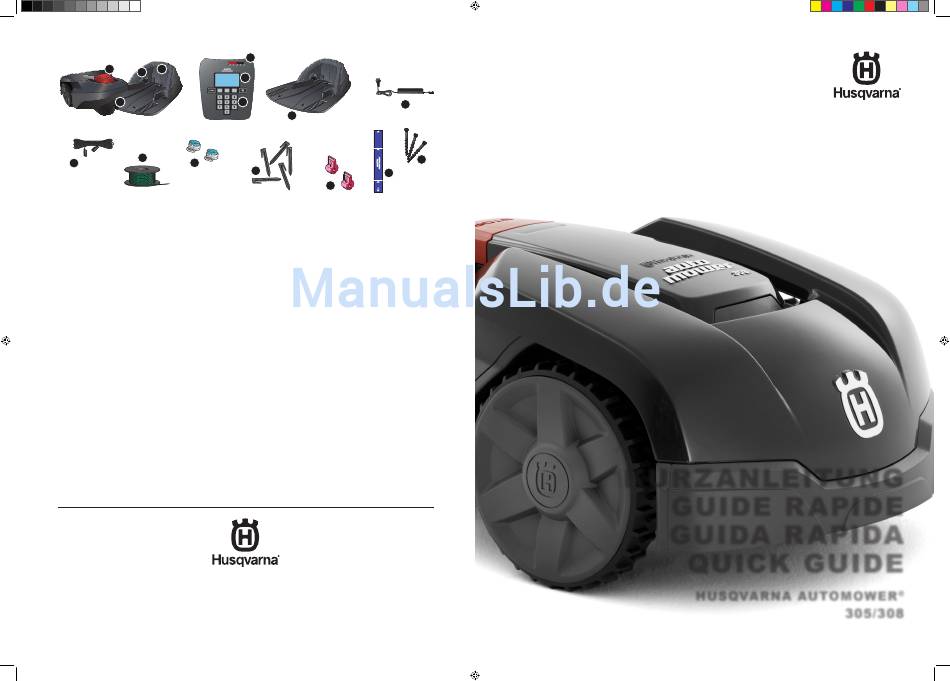

KUR Z ANLEITUNG
GUIDE R APIDE
GUIDA R APIDA
QUICK GUIDE
HUSQVARNA AUTOMOWER
®
305/308
