EURORACK UB2442FX-PRO/UB2222FX-PRO/UB1832FX-PRO/UB1622FX-PRO Bedienungsanleitung

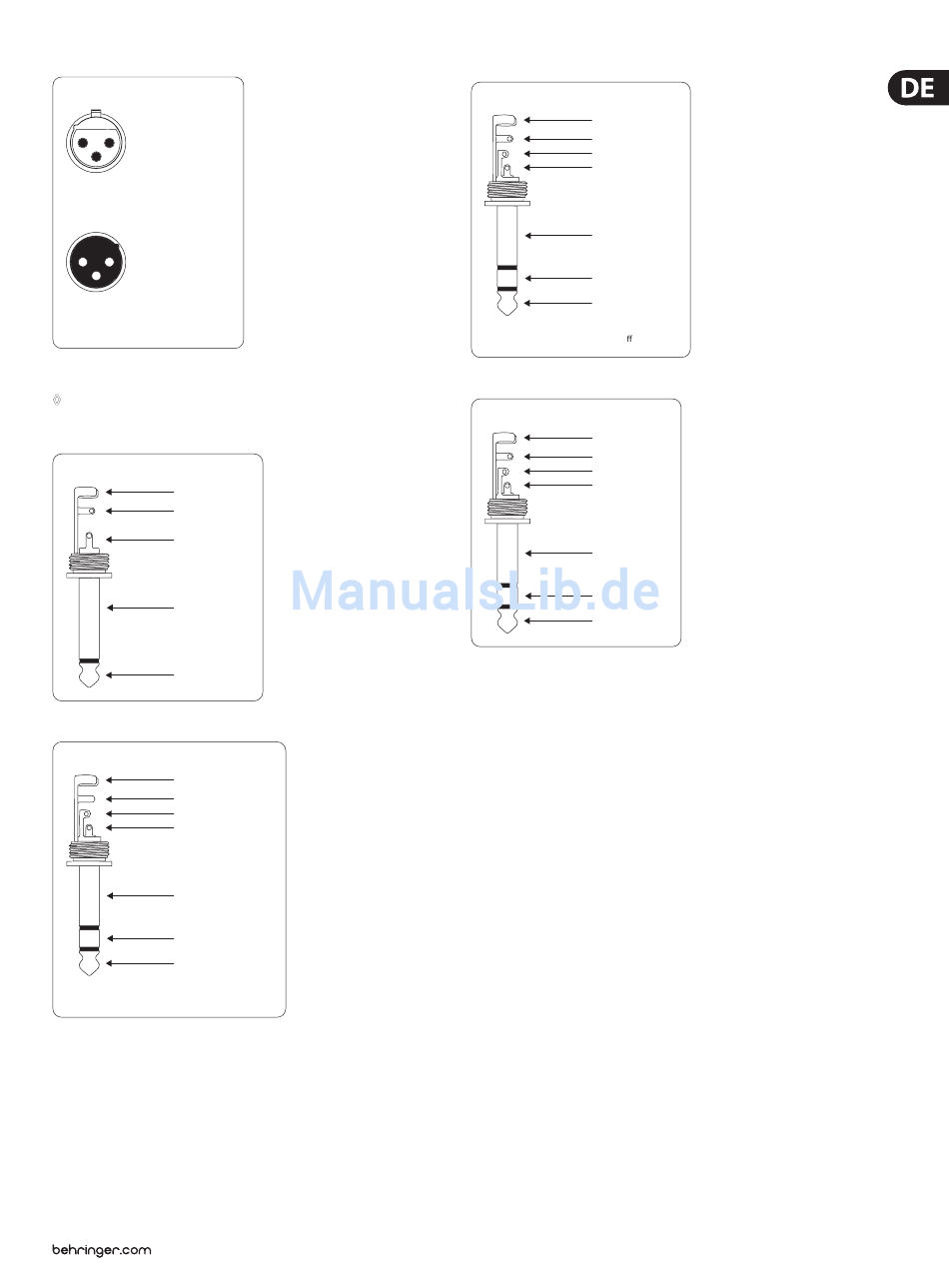

Balanced use with XLR connectors
2 1
3
input
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
1 2
3
output
For unbalanced use, pin 1 and pin 3
have to be bridged
Abb. 6.2: XLR-Verbindungen
◊
Achtung! Verwenden Sie keinesfalls unsym metrisch beschaltete XLR-
Verbindungen (PIN 1 und 3 verbunden) an den MIC-Eingangsbuchsen,
wenn Sie die Phantomspeisung in Betrieb nehmen wollen.
Unbalanced ¼" TS connector
strain relief clamp
sleeve
tip
sleeve
(ground/shield)
tip
(signal)
Abb. 6.3: 6,3-mm-Monoklinkenstecker
Balanced ¼" TRS connector
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
ring
cold (-ve)
tip
hot (+ve)
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Abb. 6.4: 6,3-mm-Stereoklinkenstecker
Insert send return ¼" TRS connector
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
ring
return (in)
tip
send (out)
Connect the insert send with the input and the
insert return with the output of the e ects device.
Abb. 6.5: Insert-Send-Return-Stereoklinkenstecker
¼" TRS headphones connector
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
ring
right signal
tip
left signal
Abb. 6.6: Kopfhörer-Stereoklinkenstecker
