Lighting receiver io

2. SAFETY

2.1. Safety and responsibility

Before installing and using this product, please read these instructions carefully.
This Somfy product must be installed by a professional motorisation and home automation installer,
for whom these instructions are intended.
Moreover, the installer must comply with current standards and legislation in the country in which the
product is being installed, and inform his customers of the operating and maintenance conditions for
the product.
Any usage outside the area of application defined by Somfy is prohibited. In this event, as for all
usage not consistent with the instructions given herein, Somfy accepts no responsibility for harm or
damage.
Never begin installing without first checking the compatibility of this product with the associated
equipment and accessories.
2.2. Specific safety advice
- Install the io Lighting Receiver in a location sheltered from rain and inclement weather.
- Ensure that the light module connected to the io Lighting Receiver does not exceed 500 W.
- Never connect several io Lighting Receivers to the same light.

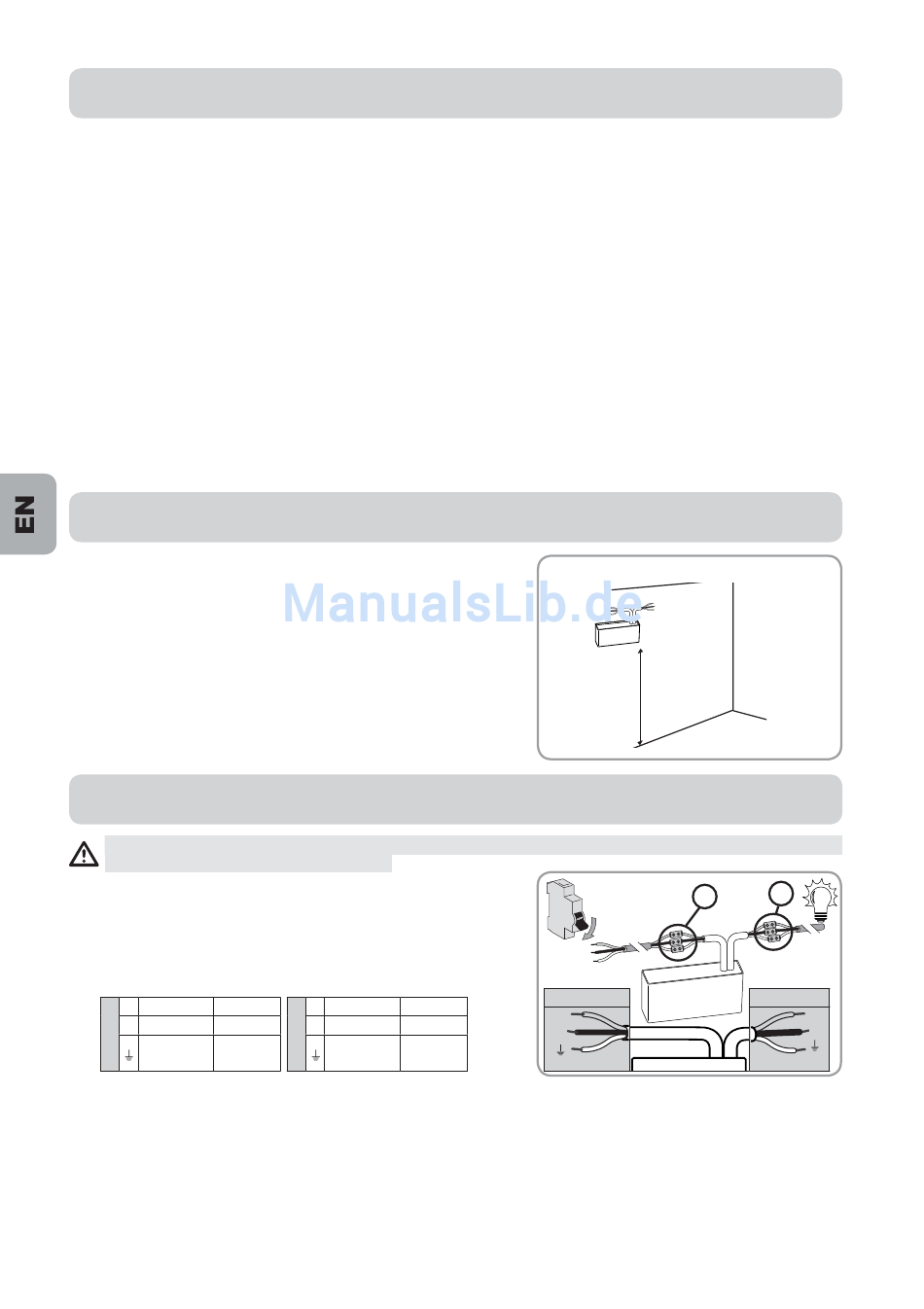

3. INSTALLATION

Installation recommendations
• Minimum distance (Z) between an io Lighting Receiver
and the ground: Z = 150 cm.

4. IO LIGHTING RECEIVER WIRING

The io Lighting Receiver must be installed in a location sheltered from inclement weather and
rain, and out of the reach of children.
- Cut off the mains power supply.
- Connect the io Lighting Receiver to the mains as per the
wiring diagram:
- Supply 230 V = Power supply side (A)
- Light = Light side (B)
1 Blue Neutral
2 Brown Live
A
Green/
Earth
yellow
26
1 Blue Neutral
2 Brown Live
B
Green/
Earth
yellow
Z
OFF
A
1
2
