GB
UNM 255-8-30 W Clean

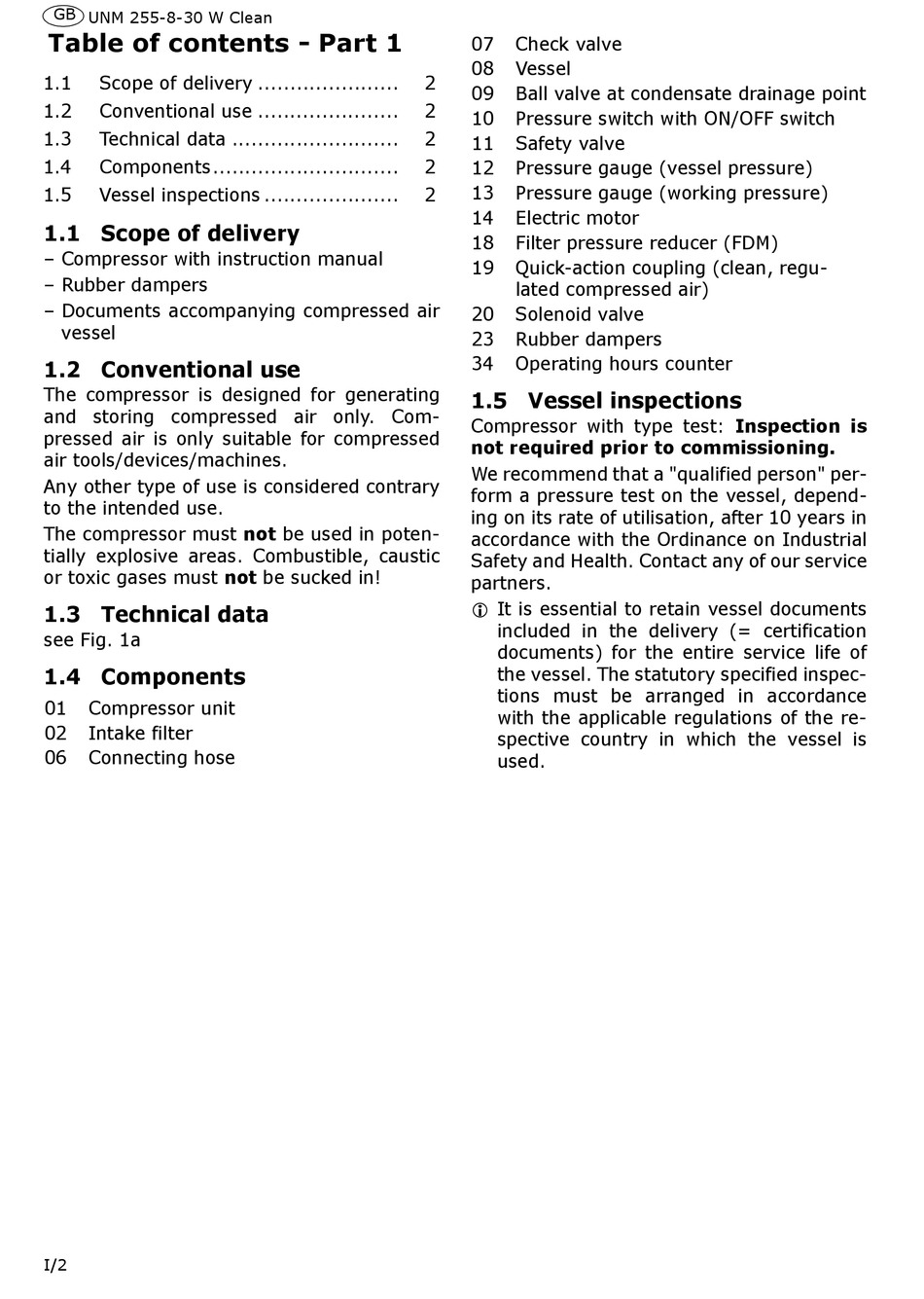

Table of contents - Part 1
1.1 Scope of delivery ......................
1.2 Conventional use ......................
1.3 Technical data ..........................
1.4 Components.............................
1.5 Vessel inspections .....................
1.1 Scope of delivery
– Compressor with instruction manual
– Rubber dampers
– Documents accompanying compressed air
vessel
1.2 Conventional use
The compressor is designed for generating
and storing compressed air only. Com-
pressed air is only suitable for compressed
air tools/devices/machines.
Any other type of use is considered contrary
to the intended use.
The compressor must not be used in poten-
tially explosive areas. Combustible, caustic
or toxic gases must not be sucked in!
1.3 Technical data
see Fig. 1a
1.4 Components
01 Compressor unit
02 Intake filter
06 Connecting hose
I/2
07 Check valve
08 Vessel
2
09 Ball valve at condensate drainage point
2
10 Pressure switch with ON/OFF switch
2
11 Safety valve
2
12 Pressure gauge (vessel pressure)
13 Pressure gauge (working pressure)
2
14 Electric motor
18 Filter pressure reducer (FDM)
19 Quick-action coupling (clean, regu-
lated compressed air)
20 Solenoid valve
23 Rubber dampers
34 Operating hours counter
1.5 Vessel inspections
Compressor with type test: Inspection is
not required prior to commissioning.
We recommend that a "qualified person" per-
form a pressure test on the vessel, depend-
ing on its rate of utilisation, after 10 years in
accordance with the Ordinance on Industrial
Safety and Health. Contact any of our service
partners.
 It is essential to retain vessel documents
included in the delivery (= certification
documents) for the entire service life of
the vessel. The statutory specified inspec-
tions must be arranged in accordance
with the applicable regulations of the re-
spective country in which the vessel is
used.
