Wiring Diagram - FUHR multitronic 881 Schnellstartanleitung

EN
5

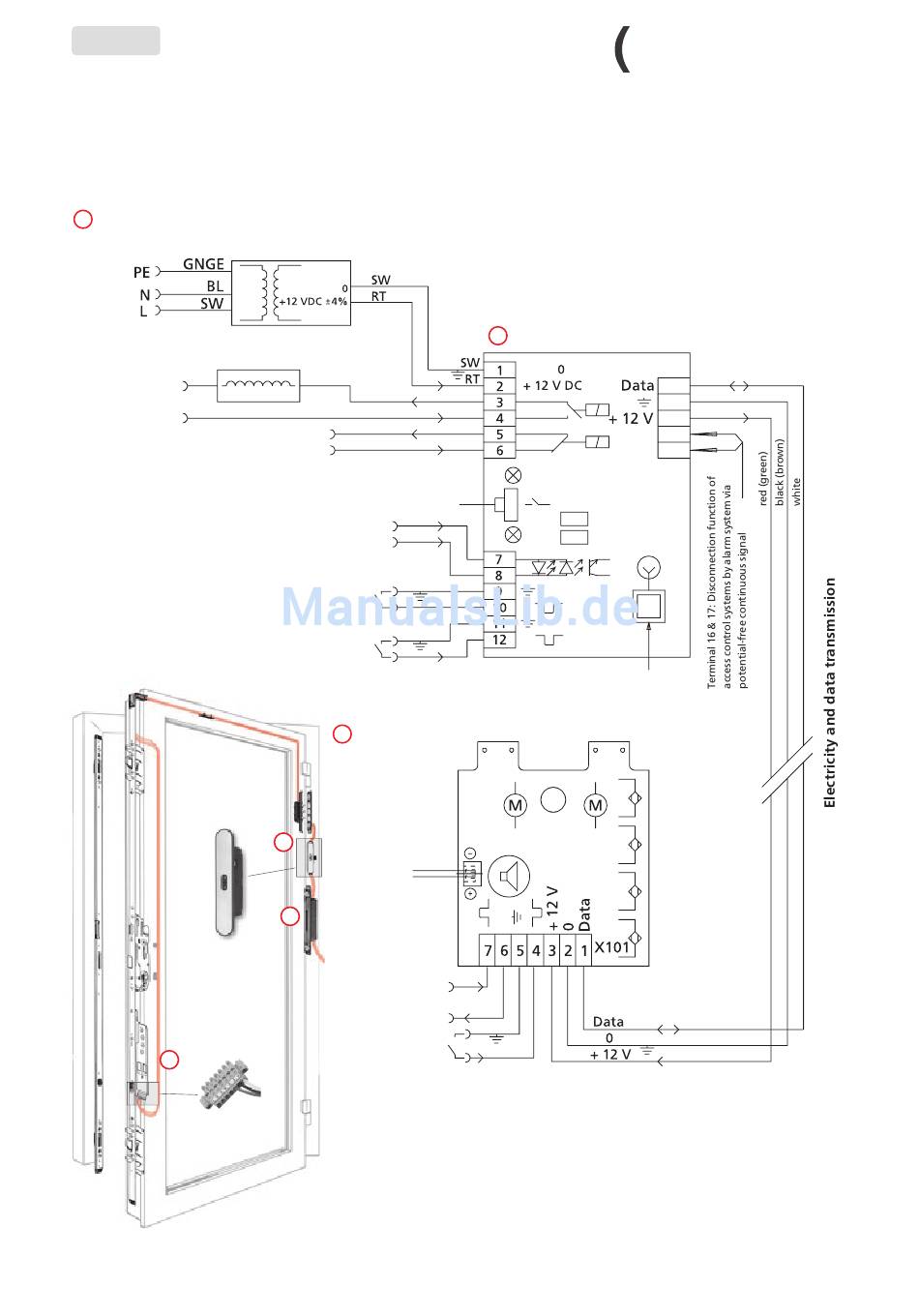

wiring diagram

Power supply via FUHR switching power supply unit
2
min. 12 V DC (residual ripple < 250 mVpp)
Mains
(230 V AC)
Electrical swing door
drive (AC/DC)
Alarm output
(opens if dry reed contact is open)
Terminal 7-8: Input (6 ... 12 V AC or 6 ... 24 DC)
For opening impulse and day latch function 1.
Terminal 9-10: Input potential-free:
For opening impulse and day latch retaining
function. The swing door drive function 2 can
be activated by removing jumper DRT.
Terminal 11-12: Input potential-free:
For opening impulses and day-latch function 1.
The day-latch function 2 can be optionally
activated by removing jumper TGF.
3
10
Programming button RADIO
Control unit in
3
the drive unit
2 V-Output for
1
external
indicator LED
2
Opening impulse
6-12 V AC / 6-24 V DC
Output:
12 V DC (350 mA)
GND
Opening impulse
(potential-free)
multitronic
Control unit (optional)
1
13
14
15
16
17
GREEN
DRT Jumper DRT
RED
TGF Jumper TGF
Removable radio receiver
881/881GL
white
black (brown)
red (green)
www.fuhr.de
