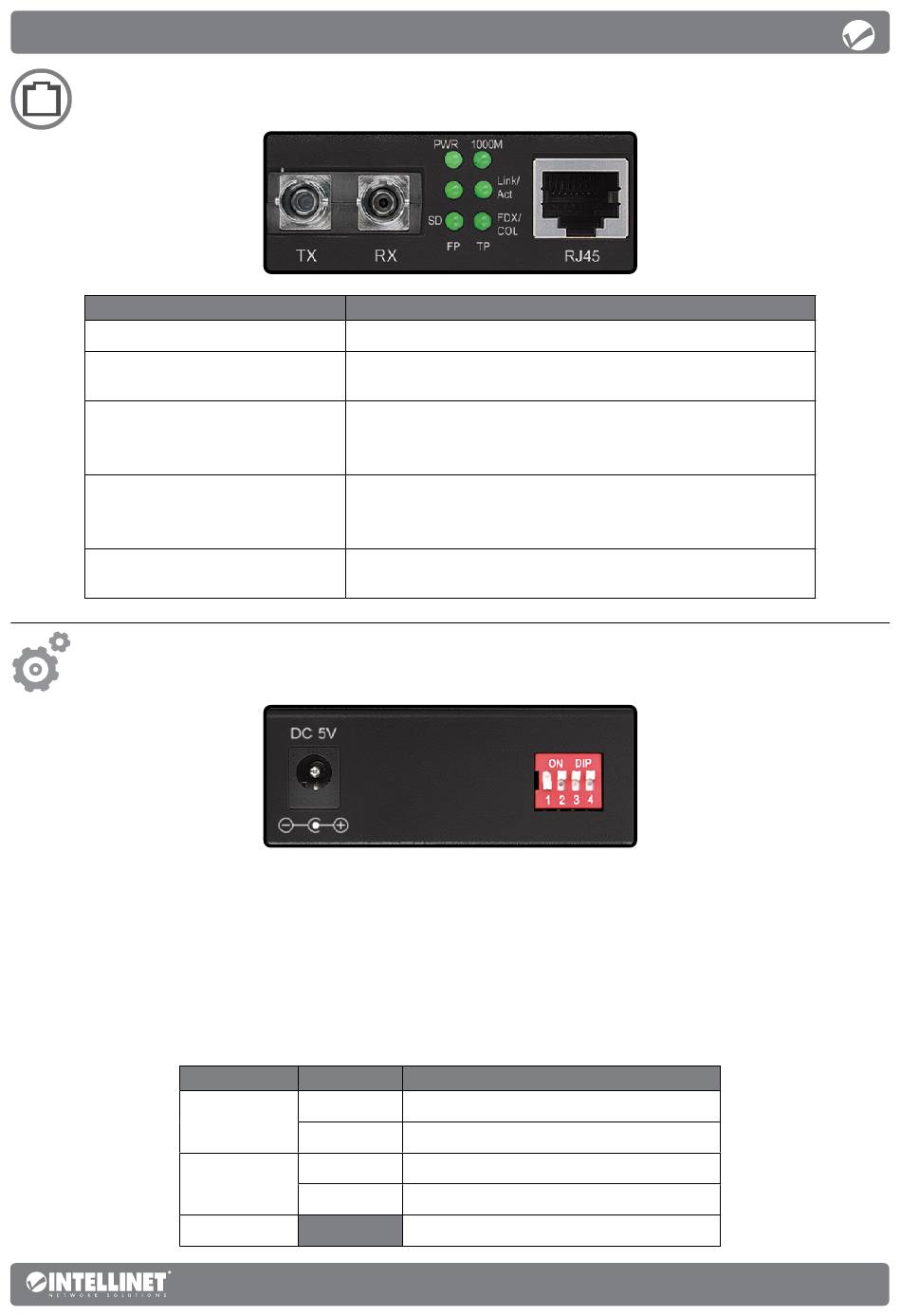

Gigabit Ethernet Media Converter
Front panel
1000M
LINK/ACT
(TP = RJ45; FP = FIBER)
FDX/COL (FOR TP/RJ45)
SD (FOR FP/FIBER)
Rear Panel
Power
Plug the power adapter into the 5 V DC input jack on the media converter,
then connect it to a regular power outlet. Only use the included power adapter
or one with matching specifications (output of 5 V DC, at least 1 A).
DIP Switch
LED
PWR The power adapter is connected when lit.
1000 Mbps link on the twisted
pair connection when lit.
– Active link when lit;
– Data traffic when flashing;
– No active network link when unlit.
– Full duplex connection when lit;
– Data collisions when flashing;
– Half duplex when unlit.
– Fiber optic signal is detected when lit;
– No signal when unlit.
Switch Position
On
1
Off
On
2
Off
3 & 4
Description
Description
Link Fault Pass-through (LFP) on
LFP off
Cut-through switching
Store-and-forward switching
Blank
Instructions
