Media converters connect two Ethernet networks over
a longer distance using fiber optic cable.
For specifications, visit intellinetnetwork.com. Register your product at
register.intellinet-network.com/r/508315 or scan the QR code on the cover.
Features
• One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)
• One 1000Base-SX fiber ST multi-mode port supporting
a maximum distance of 550 m (1,800 ft.)
• Supports full-duplex and half-duplex modes with autonegotiation
Connections
MEDIA CONVERTER 1
ETHERNET 1
TWISTED PAIR
Twisted Pair – RJ45
Connect the UTP port of the media converter to an RJ45 port on the network
(e.g., to an Ethernet switch). Cat5e or better cabling is recommended.
Fiber Optic

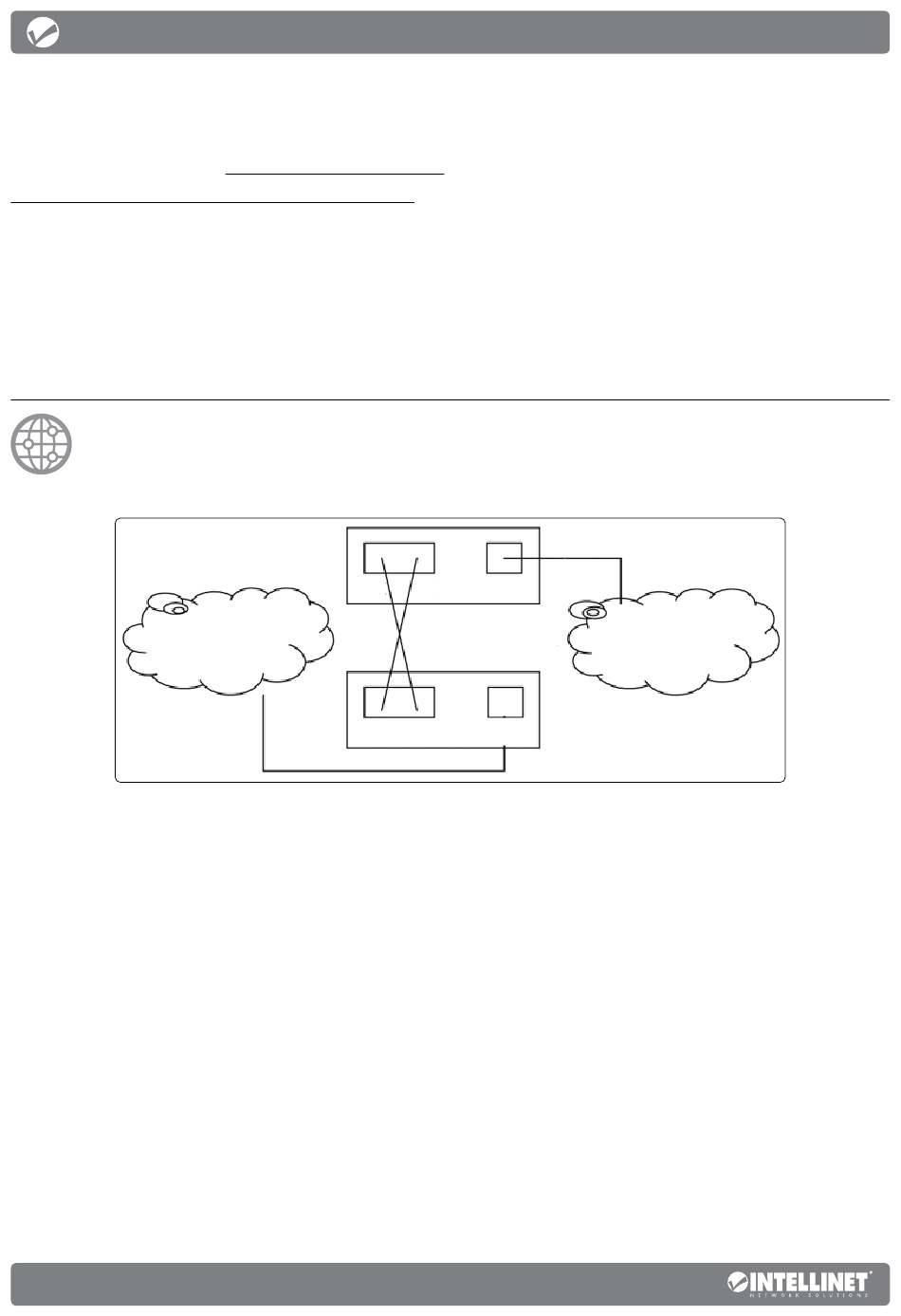

As shown above, two fiber optic cables need to be connected between two ideally
identical media converters. Make a connection from Media Converter 1 TX to
Media Converter 2 RX, and from Media Converter 1 RX to Media Converter 2 TX.
Maximum length and fiber cable specification depend on the model. (See Models.)
2 English
