Rotel RA-560 Technical Information Seite 4

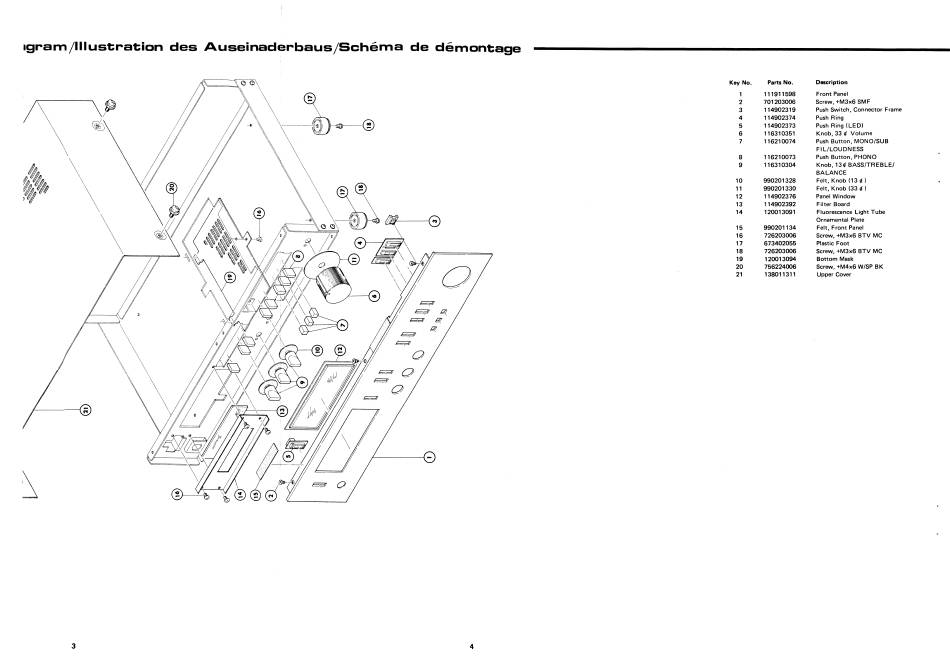

Illustration
des
•gram
3
Auseinaderbaus Schéma de dem ontage
4
Key No. Parts No. Description
1 111911598 Front Panel
2 701203006 Screw, +M3x6 SMF
3 114902319 Push Switch, Connector Frame
114902374 Push Ring
4
Push Ring (LED)
5 114902373
6 116310351 Knob, 33 d Volume
Push Button, MONO/SUB
7 116210074
FIL/LOUDNESS
8 116210073 Push Button. PHONO
9 116310304 Knob, 134 BASS/TREBLE/
BALANCE
10 990201328 Felt. Knob (13 d )
11 990201330 Felt, Knob (33 )
12 114902376 Panel Window
13 114902392 Filter Board
14 120013091 Fluorescence Light Tube
Ornamental Plate
15 990201134 Felt, Front Panel
16 726203006 Screw, +M3x6 BTV MC
17 673402055 Plastic Foot
18 726203006 Screw, +M3x6 BTV MC
19 120013094 Bottom Mask
20 756224006 Screw, +M4x6 WISP BK
21 138011311 Upper Cover
