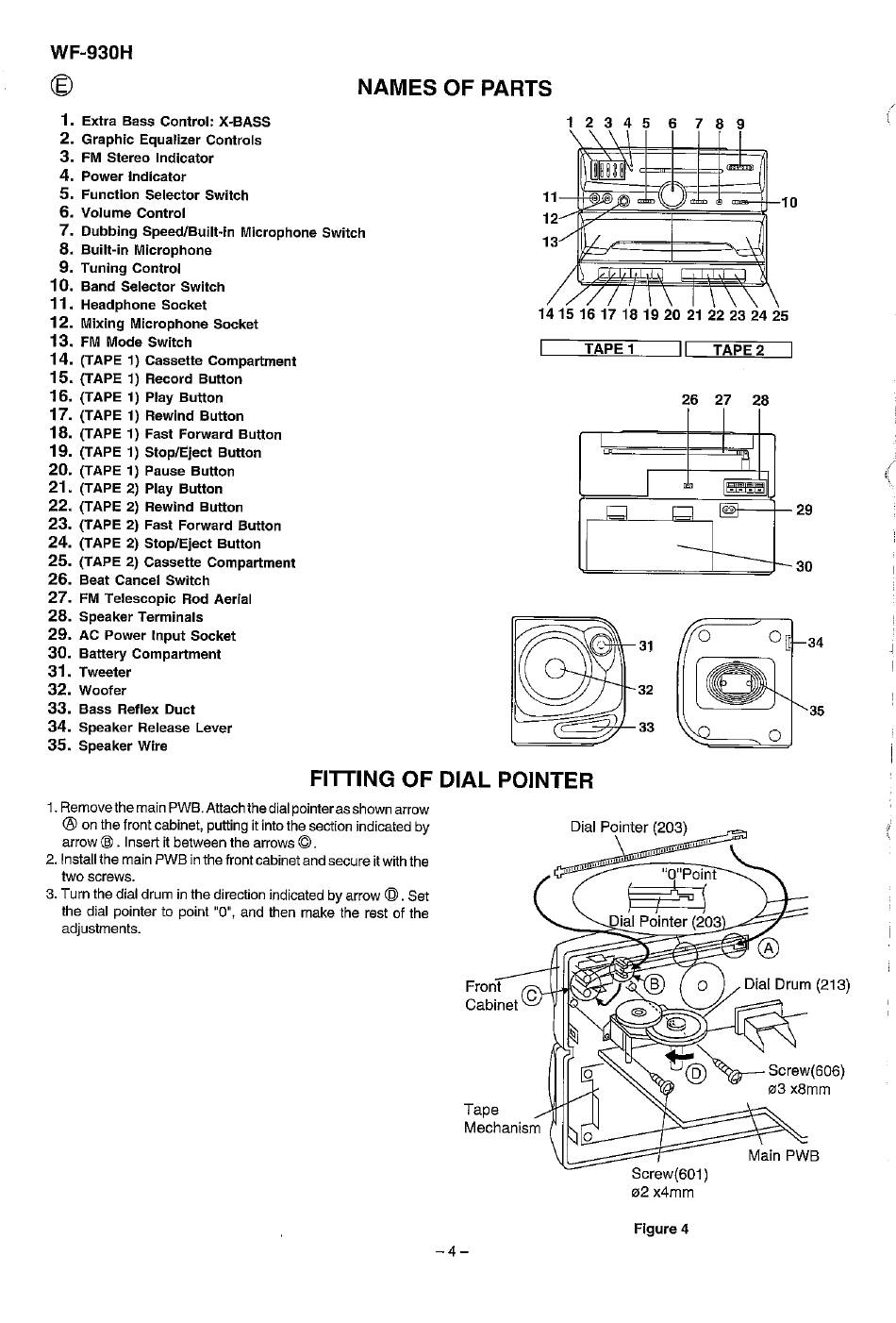

WF-930H
1. Extra Bass Control: X-BASS
2.
Graphic Equalizer Controls
3.
FM Stereo Indicator
4.
Power Indicator
5.
Function Selector Switch
6.
Volume Control
7.
Dubbing Speed/BuiIt-in
8.
Built-in Microphone
9.
Tuning Control
10.
Band Selector Switch
11.
Headphone Socket
12.
Mixing Microphone Socket
13.
FM Mode Switch
14.
(TAPE 1) Cassette Compartment
15. (TAPE 1) Record Button
16. (TAPE 1) Play Button
17. (TAPE 1) Rewind Button
18. (TAPE 1) Fast Forward Button
19. (TAPE 1) Stop/Eject Button
20. (TAPE 1) Pause Button
21 . (TAPE 2) Play Button
22.
(TAPE 2) Rewind Button
23.
(TAPE 2) Fast Forward
24. (TAPE 2) Stop/Eject Button
25.
(TAPE 2) Cassette Compartment
26.
Beat Cancel Switch
27.
FM Telescopic Rod Aerial
28.
Speaker Terminals
29.
AC Power Input Socket
30.
Battery Compartment
32.
Woofer
33.
Bass Reflex Duct
34.
Speaker Release Lever
35.
Speaker Wire
1. Remove the main PWB.Attach the dial pointer as shown arrow
@onthefrontcabinet, putting itintothesection i ndicated b y
arrow@ . Insert it between the arrows O.
2. Install the main PWB in the front cabinet and secure it with the
two screws.
3. Turn the dial drum inthe directionindicatedby arrowC. Set
the dial pointer to point "O", and then make the rest of the
adjustments.
NAMES
Microphone Switch
Button
FITTING OF DIAL
OF PARTS
1
2345
11
12
13
14 15 16 17 18 19 20 21 22 23 24 25
POINTER
Dial Pointer (203)
Dial Pointer (203
Front
C
Cabinet
o
Tape
Mechanism
6
789
10
26 27 28
29
30
"O"Point
Dial Drum (213)
o
Screw(606)
ø3 x8mm
Main PWB
Screw(601 )
ø2 x4mm
Figure 4
