Guntermann & Drunck GmbH

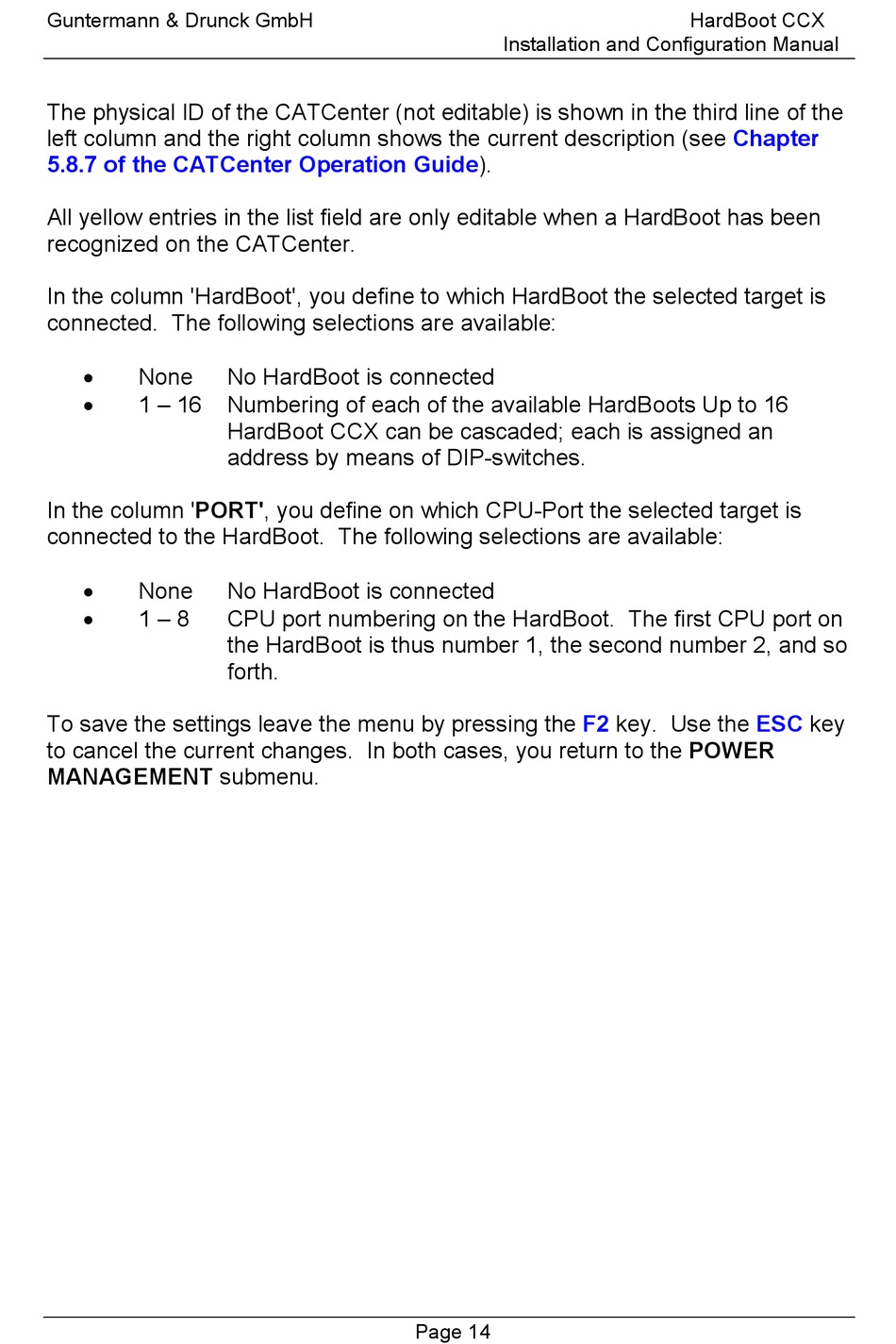

The physical ID of the CATCenter (not editable) is shown in the third line of the
left column and the right column shows the current description (see
5.8.7 of the CATCenter Operation
All yellow entries in the list field are only editable when a HardBoot has been
recognized on the CATCenter.
In the column 'HardBoot', you define to which HardBoot the selected target is
connected. The following selections are available:

None

1 – 16
In the column 'PORT', you define on which CPU-Port the selected target is
connected to the HardBoot. The following selections are available:

None

1 – 8
To save the settings leave the menu by pressing the
to cancel the current changes. In both cases, you return to the POWER
MANAGEMENT submenu.
No HardBoot is connected
Numbering of each of the available HardBoots Up to 16
HardBoot CCX can be cascaded; each is assigned an
address by means of DIP-switches.
No HardBoot is connected
CPU port numbering on the HardBoot. The first CPU port on
the HardBoot is thus number 1, the second number 2, and so
forth.
Installation and Configuration Manual
Guide).
F2
Page 14
HardBoot CCX
Chapter
key. Use the ESC key
