3.5 Signal connections
The preamp inputs of the ROM amplifiers feature high-grade RCA connectors; connect the
preamp (line) outputs of your audio source with the RCA preamp level inputs of the amplifier.
Use heavy-duty RCA signal cables designed for mobile applications, like the SIGNAT
Platinum series.
Run the patch cables carefully, maintaining as much distance as possible from power,
speaker, and accessory wiring. Make sure the RCA plugs fit tightly for a secure connection.
SIGNAT ROM amplifiers feature BIC (Balanced input circuitry). The input sensitivity of the
amplifier can be adjusted to the output voltage of your radio using the "GAIN" control.
Remark:
Please avoid any use with "open" (disconnected) input jacks; BIC requires a properly
connected input to the audio source.
3.6

Speaker connections

WARNING:
Never connect the speaker leads to the vehicle chassis (ground).
Ensure that all the speakers are connected in phase, i. e. positive to positive and negative to
negative. With most speakers the positive connection is marked "positive" or it is marked with
a (red) dot.
3.7

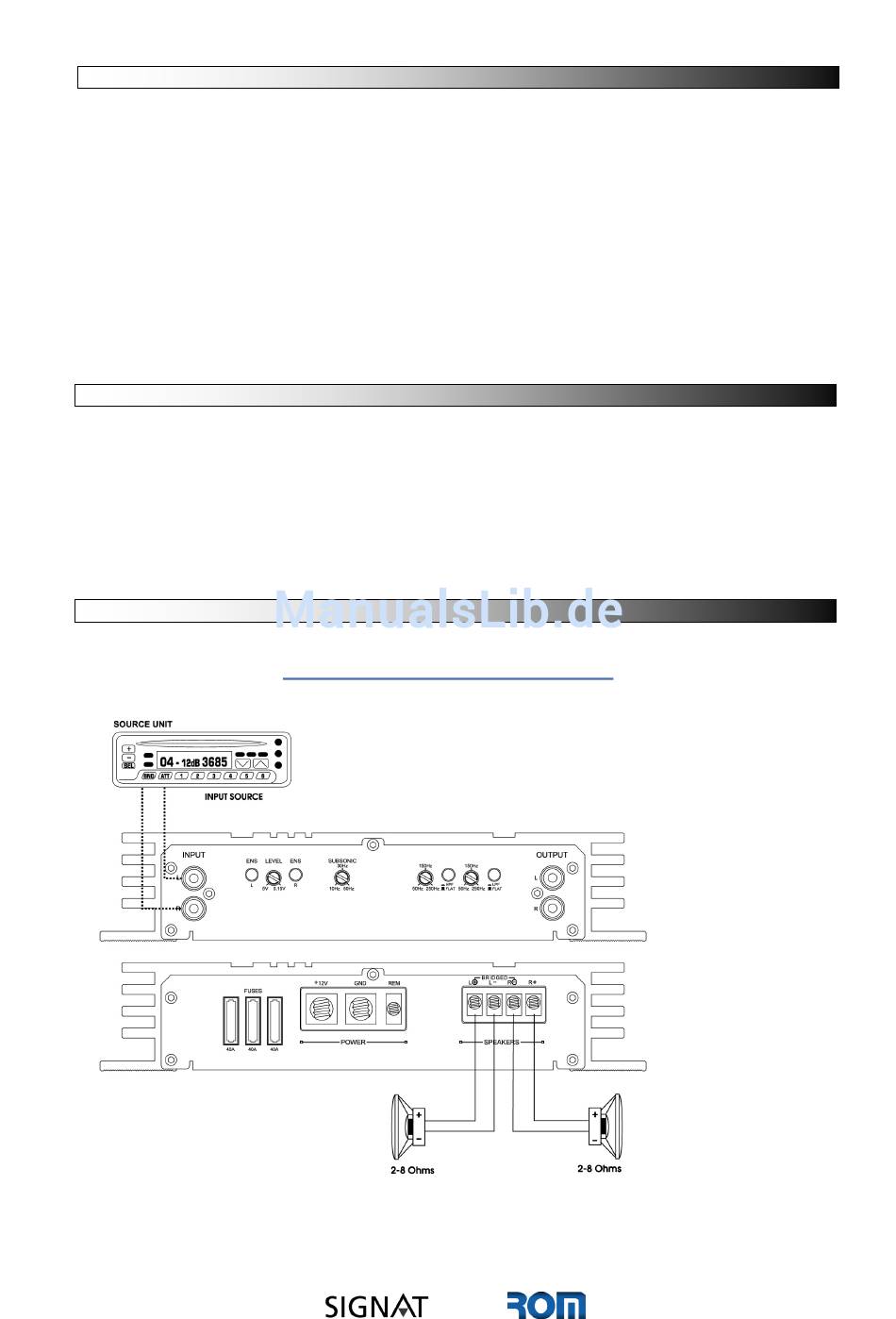

System configurations

2-channel configuration for ROM2
10
Lowest
recommended
impedance is 2
Ohm stereo
RCA inputs are
connected to
both left and
right channels
Level controls
to be set to
match input
source
Line output
configured for
stereo
operation
