RT-150H

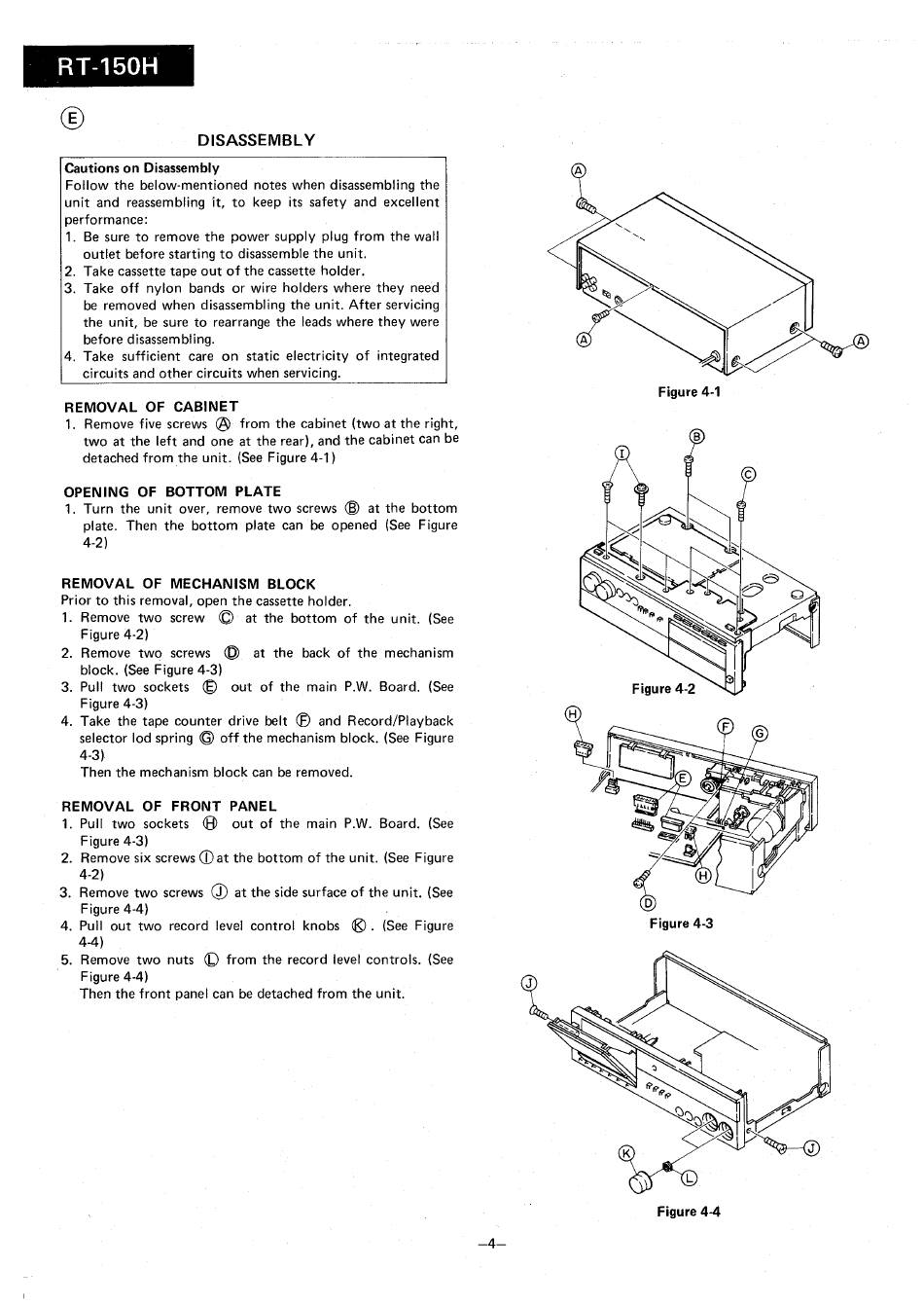

DISASSEMBLY
Cautions
on Disassembly
Follow the below-mentioned
unit and reassembling it, to keep its safety and excellent
performance:
I. Be sure to remove the power supply
outlet before starting to disassemble the unit.
2. Take cassette tape out of the cassette holder.
3. Take off nylon bands or wire holders where they need
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.
4. Take sufficient
care on static electricity
circuits and other circuits when servicing.
REMOVAL
OF
CABINET
1. Remove five screws
two at the left and one at the rear), and the cabinet can be
detached from the unit. (See Figure 4-1)
OPENING
OF BOTTOM
I. Turn the unit over, remove two screws @ at the bottom
plate. Then the bottom plate can be opened (See Figure
4-2)
REMOVAL
OF
MECHANISM
Prior to this removal, open the cassette holder.
l. Remove two screw O
Figure 4-2)
2.
Remove
two
screws
block. (See Figure 4-3)
3. Pull two sockets @
out of the main P.W. Board. (See
Figure 4-3)
4. Take the tape counter drive belt
selector Iod spring O off the mechanism block. (See Figure
4-3)
Then
the mechanism
block
REMOVAL
OF
FRONT
PANEL
1. Pull two sockets G)
out of the main P.W. Board. (See
Figure 4-3)
2. Removesix screwsOat the bottom of the unit. (SeeFigure
4-2)
3. Remove two screws@ at the sidesurface of the unit. (See
Figure 4-4)
4. Pull out two record level control knobs @ . (See Figure
4-4)
5. Remove two nuts O from the record level controls. (See
Figure 4-4)
Then the front panel can be detached from the unit.
notes when disassembling the
plug from
the wall
of integrated
from the cabinet (two at the right,
PLATE
BLOCK
at the bottom of the unit. (See
at
the
back
of
the
mechanism
and Record/PIayback
can be removed.
Figure 4-1
1
c
Figure 4-2
Figure 4-3
Figure 44
