16)
End of Line Monitoring (DC Units)
On BExCS110-05D DC units, dc reverse line monitoring can
be used if required. All DC units have a blocking diode fitted
in their supply input lines on both the sounder section and the
beacon section. An end of line monitoring diode or an end of
line monitoring resistor can be connected across the +ve and
–ve terminals. If an end of line resistor is used it must have a
minimum resistance value of 3k3 ohms and a minimum
wattage of 0.5 watts or a minimum resistance value of 500
ohms and a min. wattage of 2 watts. If the sounder and
beacon sections are wired to separate power supplies then
an end of line monitoring component can be used in each
section.
17)
Synchronised Operation
All BExCS110-05D units that are connected to the same
supply line will have a synchronized sound output and a
synchronised flash rate at one flash every second. To ensure
that the units will be synchronised check that the pin header
is not fitted, i.e. the two header pins are not shorted together
(see Figures 4 and 5).
18)
Flip / Flop Operation
Two units can be mounted close to each other to form a flip-
flop operation, where the beacons will flash alternately. To
achieve this mode of operation, fit a pin header to the flip-
flop header pins on the electronics board, i.e. the two header
pins are shorted together, (see figures 4 and 5) on one of the
two beacons. The first flash on the beacon that has the
header fitted will be delayed by ½ second. The two beacons
will then flash alternately every ½ a second.

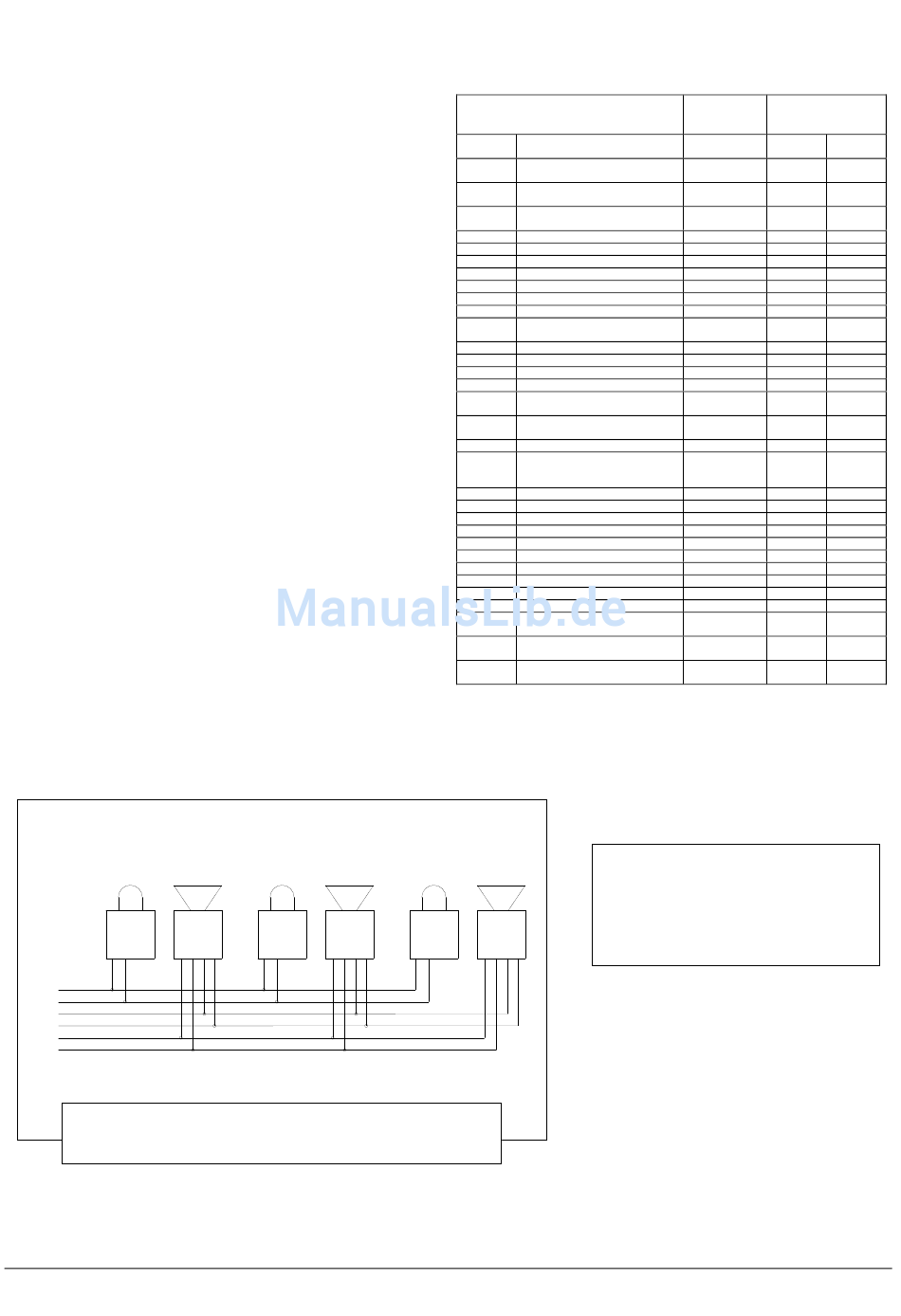

Unit No. 1
Beacon
PCB
+ -
+
-
S2
S3
+
-
BExCS110-05D DC Combined Sounder Unit
Beacon and Sounder Wired for Independent Operation
Pfannenberg GmbH · Werner Witt-Straße 1
PDG-Doc-No.: 30080-004a
Unit No. 2
Beacon
Sounder Sounder
PCB PCB PCB
+ -
+ - + -
S2 S3
· D-21035 Hamburg
TONE SELECTION TABLE
Stage 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Unit No. 3
Beacon
Sounder
PCB PCB
+ -
+ -
S2 S3 S2 S3
· Tel.: 040/7 34 12-0 ·
GB 5 / 6
DIP Switch
Tone Selection Settings
Frequency Description 1 2 3 4 5
Continuous 1000Hz 0 0 0 0 0
Toxic gas alarm
Alternating 800/1000Hz at 0.25s 1 0 0 0 0
intervals
Slow Whoop 500/1200Hz at 0.3Hz 0 1 0 0 0
with 0.5s gap repeated
Sweeping 800/1000 at 1Hz 1 1 0 0 0
Continuous at 2400Hz 0 0 1 0 0
Sweeping 2400/2900Hz at 7Hz 1 0 1 0 0
Sweeping 2400/2900Hz at 1Hz 0 1 1 0 0
Siren 500/1200/500Hz at 0.3Hz 1 1 1 0 0
Sawtooth 1200/500Hz at 1Hz 0 0 0 1 0
Alternating 2400/2900Hz at 2Hz 1 0 0 1 0
Intermittent 1000Hz at 0.5Hz 0 1 0 1 0
General alarm
Alternating 800/1000Hz at 0.875Hz 1 1 0 1 0
Intermittent 2400Hz at 1Hz 0 0 1 1 0
Intermittent 800Hz 0.25s on 1s off 1 0 1 1 0
Continuous at 800Hz 0 1 1 1 0
Intermittent 660Hz 150mS on, 1 1 1 1 0
150mS off
Alternating 544Hz 0 0 0 0 1
(100mS)/440Hz(400mS)
Intermittent 660Hz 1.8s on, 1.8s off 1 0 0 0 1
1400Hz to 1600Hz sweep up over 0 1 0 0 1
1s - 1600Hz to 1400Hz sweep down
over 0.5s
Continuous 660Hz 1 1 0 0 1
Alternating 554/440Hz at 1Hz 0 0 1 0 1
Intermittent 554Hz at 0.875Hz 1 0 1 0 1
800Hz pulsing at 2Hz 0 1 1 0 1
Sweeping 800/1000Hz at 50Hz 1 1 1 0 1
Sweeping 2400/2900Hz at 50Hz 0 0 0 1 1
Simulated bell sound 1 0 0 1 1
Continuous 554Hz 0 1 0 1 1
Continuous 440Hz 1 1 0 1 1
Sweeping 800/1000Hz at 7Hz 0 0 1 1 1
420Hz repeating 0.625s on, 0.625s 1 0 1 1 1
off Australian alert signal
1200/500Hz at 1 Hz 0 1 1 1 1
Prepare to abandon platform
Sweeping 500/1200Hz 3.75s on, 1 1 1 1 1
0.25s off 15Hz
NOTE
Either the +ve or the -ve wire may
be made common to both the
sounder and the beacon to reduce
the number of cores in the cable.
Telefax:040/ 734 12-345
Stage Selection
Stage 2 Stage 3
Tone 31 Tone 11
Tone 17 Tone 5
Tone 2 Tone 5
Tone 6 Tone 5
Tone 3 Tone 27
Tone 7 Tone 5
Tone 10 Tone 5
Tone 2 Tone 5
Tone 15 Tone 2
Tone 7 Tone 5
Tone 31 Tone 1
Tone 4 Tone 5
Tone 15 Tone 5
Tone 4 Tone 5
Tone 2 Tone 5
Tone 18 Tone 5
Tone 2 Tone 27
Tone 2 Tone 5
Tone 2 Tone 5
Tone 2 Tone 5
Tone 2 Tone 5
Tone 2 Tone 5
Tone 6 Tone 5
Tone 29 Tone 5
Tone 29 Tone 5
Tone 2 Tone 1
Tone 26 Tone 5
Tone 2 Tone 5
Tone 7 Tone 5
Tone 32 Tone 5
Tone 11 Tone 1
Tone 26 Tone 1
