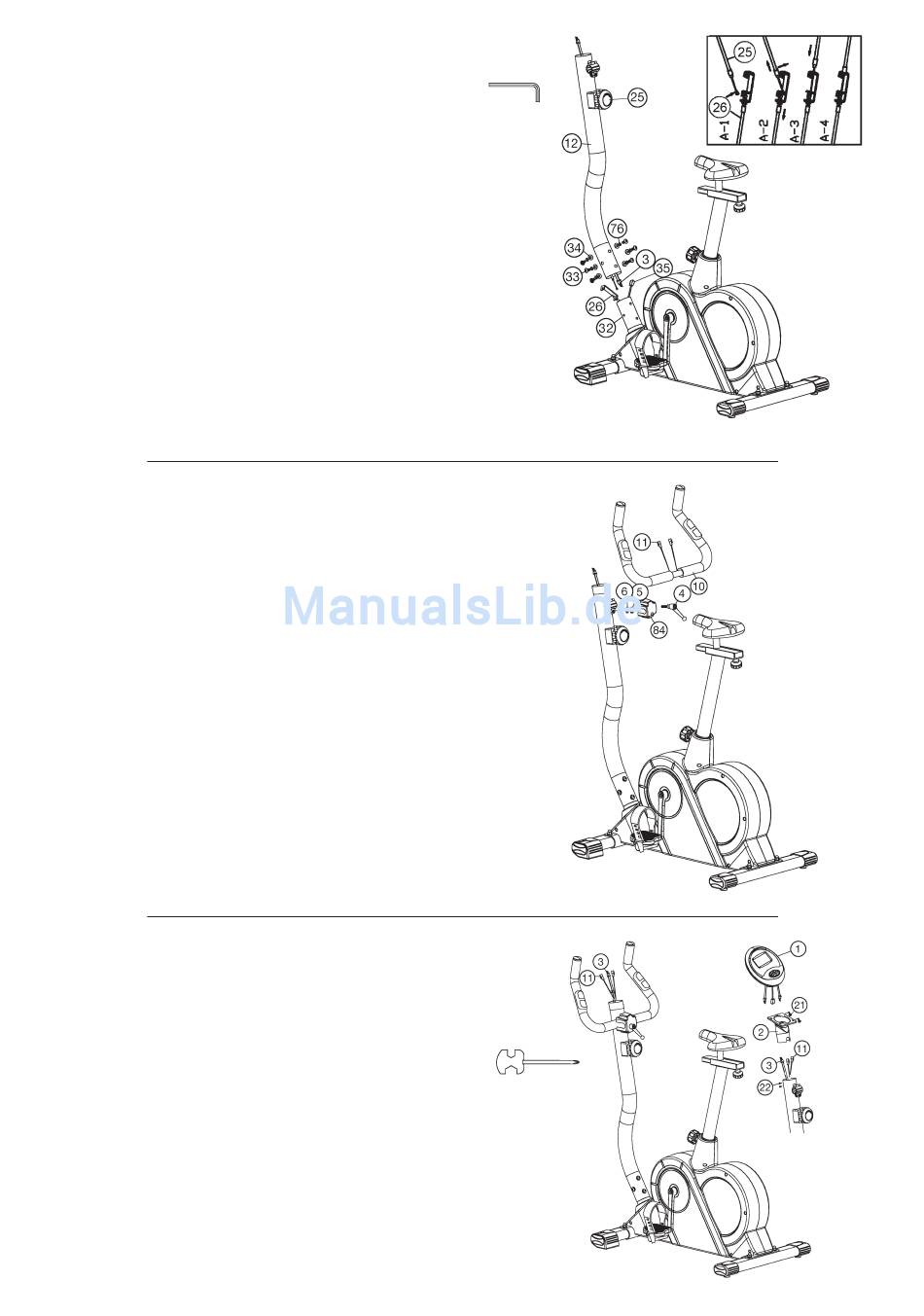

Step 4:
Attach the front post (12) at main frame (32).
1. Attach the front post (12) to the front post mounting tube of main frame
(32) and connect the plug of connection cable (3) to the socket of the
sensor cable (35).
2. Connect the cable of tension control (25) to the bracket of lower section
cable tension (26) (See figure A1-4). Before this step of the installation,
it is advisable to adjust the resistance setting to the highest stage, at
which the cable extends furthest from the sheath. Put the lowest part
of cable (25) into the small hook (figure A 1). Pull it (figure A 2) until the
small hook get in higher position and then insert the cable (25) onto the
bracket (26) (figure A3+A4).
3. Insert the front post (12) to main frame (32) and secure, using allan head
bolts M8x16 (33), spring washers (76) and washers (34).
(Attention: Ensure that the cable loom are not crunched or pinched
during installation.)
Step 5:
Attach the handlebar (10) at handlebar support (12).
1. Guide the preassembled handlebar unit (10) through the upper part of
the handlebar post (12), put the pulse cable (11) through the hole and
close the bracket of handlebar holder.
2. Attach the front handlebar cover (84) at the handlebar holder of handlebar
support (12) and screw the handlebar (10) in desired position at the
handlebar post (12) and tighten firmly with spring washer (5), washer
(6) and handlebar screw (4).
Step 6:
Attach the computer (1) at handlebar support (12).
1. Take the computer (1) that has been supplied out of the packaging and
insert the batteries (Type "AA"-1.5 V pen cells) by watching for the right
polarity on the back of the computer (1). (Batteries for the computer
are not included in this item. Please buy them at your located market.)
2. Place the computer (1) on the computer holder (2) and put the cables
through the computer holder (2) and attach it with the screws (21)
without squeezing the cables.
3. Push the plug of the connecting cable (3) and pulse cable (11) into the
associated socket of the computer (1).
4. Put the computer holder (2) onto the handlebar support (12) and attach
it with screws (22).
