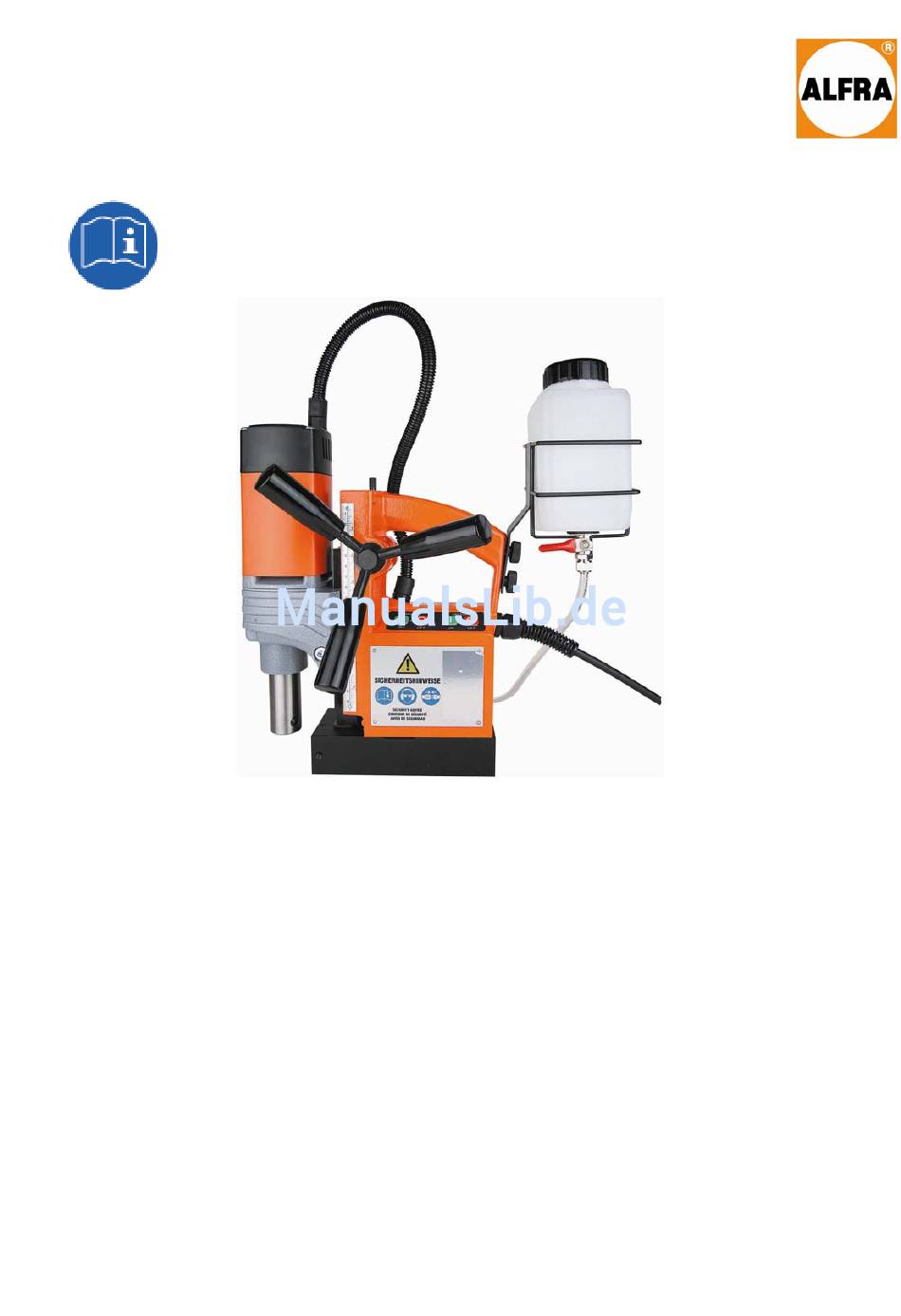

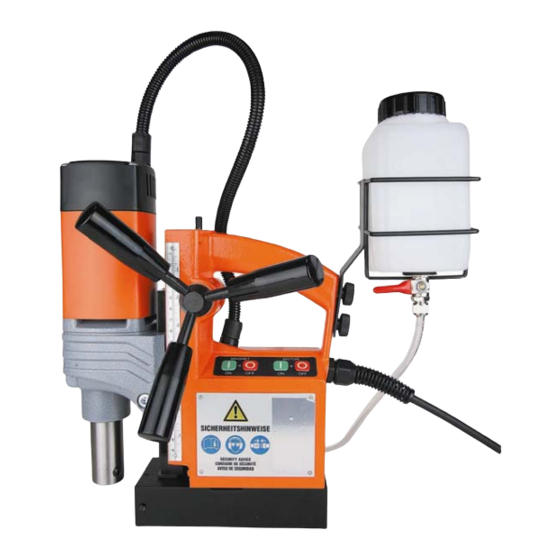

- Seite 1 Alfra Rotabest 32 WD Metal Core Drilling Machine Operation Manual...
-
Seite 2: Technical Data
Technical Data Prod. – No.: 18605 Name Rotabest 32 WD Input: 1100 Watt No-Load rpm: 450 rpm Tool Holder ¾“ (19 mm) Weldon Coolant supply: internal, automatically Voltage: (see nameplate) Magnetic Adhesion: 11000 N Boring Ø max. in Steel: - Core Cutter... - Seite 3 Description A ) Motor B ) Spindle C ) Control Panel D ) Magnet Foot E ) Weldonarbor F ) Depth Scale J ) Recess for safety belt K ) Adjusting screws for adjusting the slide...
-
Seite 4: Prior To Use
Standard scope of supply • Transport Case • Coolant Unit • Coolant Spray • Drill Chuck • Chip Remover • Safety Belt • Ejector Pin • Allan Key 2,5 mm • Allan Key 6,0 mm Prior to use: Read Operation Manual! Pay attention to Safety Precautions! Appropriate Use This device is destined to:... -
Seite 5: Safety Precautions
Safety Precautions Danger of Injuries During drilling operations on walls and ceilings, the Metal Core Drilling Machine must be safeguarded with the included safety belt (f). The magnetic adhesion is not maintained in case of a failure of circuit. The cut core will be ejected automatically by the ejector pin. Danger of accident! The ejector pin could possibly break in case of improper use. - Seite 6 Danger of injuries! Danger of an electric shock For operations on walls and ceilings, we recommend cooling with our spray (Alfra BIO 2000, Prod.- No. 21010). Switching on and off. • Check connecting line and plug on damages first! • Push button MAGNET ON, in order to initiate the magnet and the magnetic adhesion is guaranteed.
- Seite 7 Operating tips. First, place annular cutter with ejector pin on a marked center or marking. Drilling with ALFRA Rotabest cutters does not require much expenditure of force. Set the cutter and spot-drill, until the entire cut edge is formed as a circle.
-
Seite 8: Maintenance And Repair
The Metal Core Drilling Machine ALFRA ROTABEST should be serviced after appr. 250 hours running time by our Alfra workshop or appointed dealers. Only use genuine ALFRA spare parts. Spare part list at the end of this operation manual. - Seite 9 Zubehör / Accessories / Accessories Alfra Rotabest HSS Co Kernbohrer Alfra Rota Quick HSS Co Core Cutter Fraises à carotter Alfra Rotabest HSS-Co Ø 12 – 32 mm Schnitttiefe 25 mm Ø 12 – 32mm Cutting depth 25 mm Ø 12 – 32 mm Profondeur de coupe 25 mm Ø...
- Seite 10 Coolant unit Dispositif de lubrification Artikel - Nr. 18104 Product -No. 18104 Nro. d’article 18104 Alfra Bio 2000 Schneid- und Bohrspray Alfra Bio 2000 Cutting Oil Aérosol de lubrifiant de coupe et de perçage Artikel - Nr. 21010 Product -No. 21010 Alfra Bio 2000 Nro.
-
Seite 11: Spare Parts
Spare Parts Pos. Stck. Art.-Nr. 189301070 Ständergehäuse housing chassis 189301088 Schlitten slide glissoir 189411025 Magnetfuss 230 Volt magnet foot socle magnétique 189411025.110 Magnetfuss 110 Volt magnet foot socle magnétique 189301072 Ritzelwelle pinion shaft arbre de pignon 189301073 Zahnstange rack crémaillère 189301074 Speichen kpl. - Seite 12 189501076 Befestigungsstein motor fixing part fixation pour le moteur 189301077 Schieber slide coulissoir 189480001 Schild (Sicherheitshinweis) plate (safety instructions) plaquette de conseils de sécurité 189301079 Rändelmutter knurled nut écrou moleté 189301087 Rahmendichtung frame seal joint d'assemblage 189120410 Erdungsschraube earthing screw vis de mise à...
- Seite 13 Pos. Art.Nr. 189502002 Blechsschrauben 4,8x 50 screw 4,8 x 50 Vis à tôle 4,8 x 50 189302002 1 Motorkappe motor housing, compl. Carcasse de moteur 189302003 Blechschraube 4,2 x1 3 screw Vis à tôle 4,2 x 1 3 189812011 1 Rillenkugellager 608 2Z deep groove ball bearing 608.2Z Roulement à...
- Seite 14 189601017 1 Sicherungsring 28/1,2 retaining ring Circlip extérieur 189601018 1 Rillenkugellager 6001 2Z deep groove ball bearing 6001.2 Z Roulement à bille 6001.2 Z 189502056 1 Sicherungsring 10/1 retaining ring Circlip extérieur 10/1 189302016 1 Anker 230 V armature, compl. 230 V Induit compl.
