Defensor Mk4 Installation Seite 24

1.6 Adjustments
Switch Standard setting
1 OFF
2 OFF
3 OFF
4 OFF
5 OFF
6 - 8 OFF
24
Important notes
- Warning! Disconnect the steam humidifier from the mains supply (power and
control unit) before starting the adjustments.
- Alteration of settings not described below is not permitted and may lead to injury
to persons and material damage.

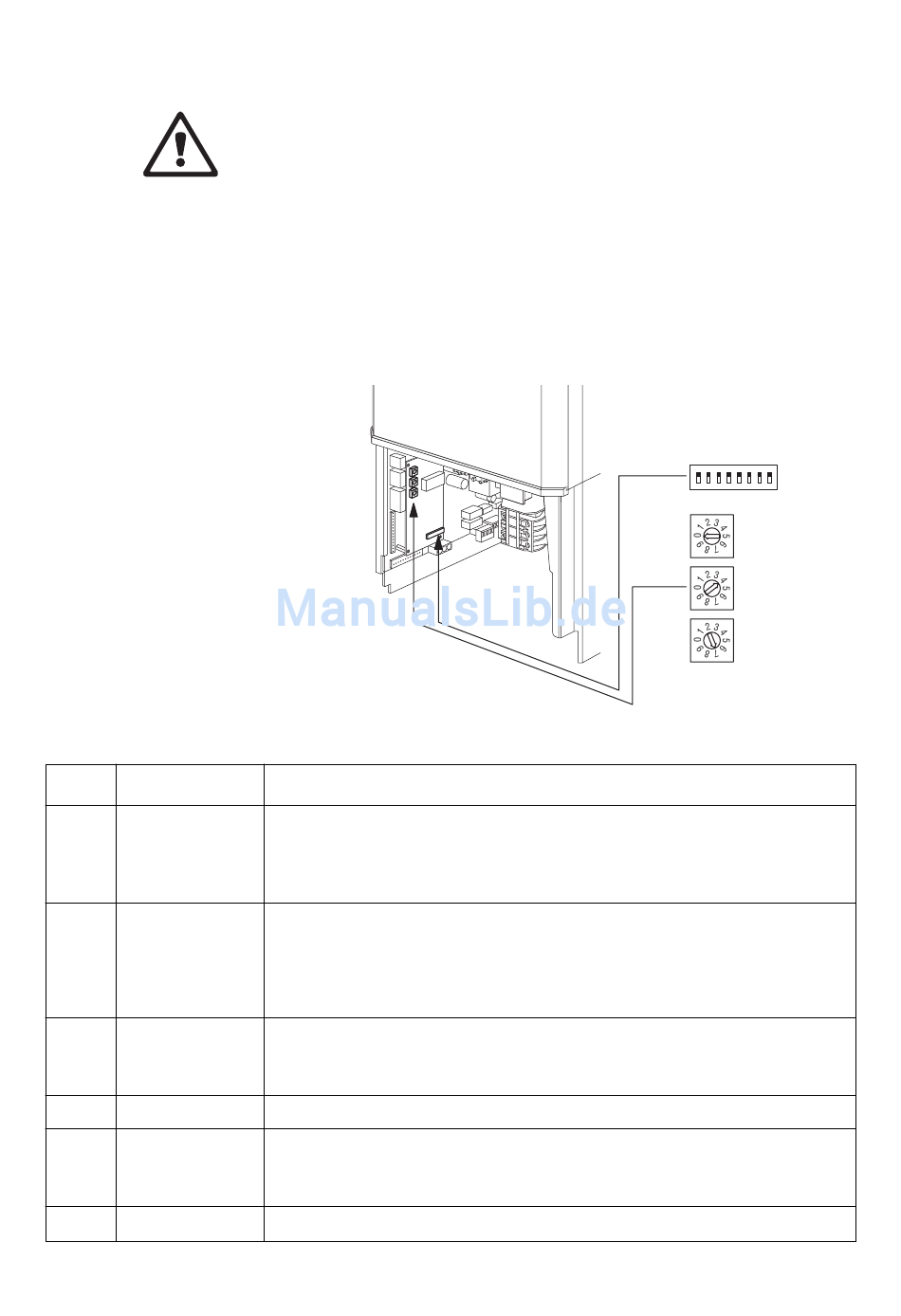

All adjusting elements are situated on the control p.c.b.:
- DIP switch "SW1":
- Rotary switch "SW2":
- Rotary switch "SW3":
- Rotary switch "SW4":
General settings ("SW1")
Description
Stand-by heating ON/OFF
With stand-by heating switched on, the water in the steam boiler is kept at a specific
temperature if steam production stops, so that steam can be produced again immediately if
required.
Cleaning cycle ON/OFF
With the cleaning cycle switched on, flushing is performed for 10 seconds every 168
operating hours.
Important! During the cleaning cycle no steam can be produced for approx. 10 minutes
owing to cooling.
Pulse/pause package control ON/OFF
If this position is activated (ON) the control performance is optimized. If deactivated (OFF)
it is regulated normally (maintenance of flicker regulations)
Spare
Automatic flushing of the steam cylinder ON/OFF
If this setting is enabled (ON) the steam cylinder is automatically flushed after 72 hours
(hygiene)
Spare
General adjustments
Control signal range
Maintenance interval
Flushing intervals
OFF
SW1
8 7 6 5 4 3 2 1
SW2
SW3
SW4
