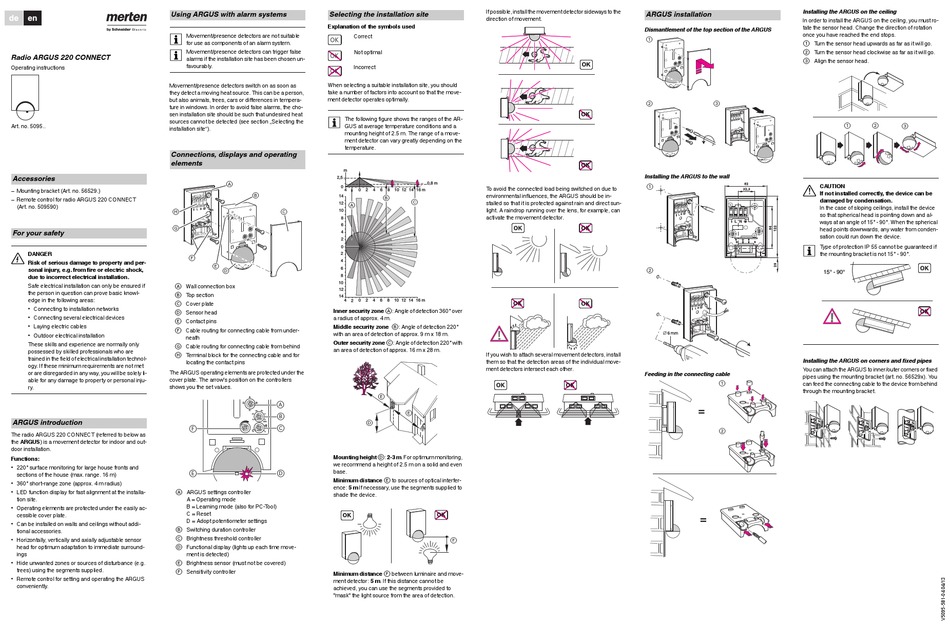

Using ARGUS with alarm systems
de en
Movement/presence detectors are not suitable
|
for use as components of an alarm system.
Movement/presence detectors can trigger false
|
Radio ARGUS 220 CONNECT
alarms if the installation site has been chosen un-
favourably.
Operating instructions
Movement/presence detectors switch on as soon as
they detect a moving heat source. This can be a person,
but also animals, trees, cars or differences in tempera-
ture in windows. In order to avoid false alarms, the cho-
sen installation site should be such that undesired heat
sources cannot be detected (see section „Selecting the
Art. no. 5095..
installation site").
Connections, displays and operating
elements
Accessories
– Mounting bracket (Art. no. 56529.)
– Remote control for radio ARGUS 220 CONNECT
(Art. no. 509590)
H
G
For your safety
¼ DANGER
F
Risk of serious damage to property and per-
sonal injury, e.g. from fire or electric shock,
due to incorrect electrical installation.
Safe electrical installation can only be ensured if
A Wall connection box
the person in question can prove basic knowl-
B Top section
edge in the following areas:
C Cover plate
• Connecting to installation networks
D Sensor head
• Connecting several electrical devices
E Contact pins
• Laying electric cables
F Cable routing for connecting cable from under-
• Outdoor electrical installation
neath
These skills and experience are normally only
G Cable routing for connecting cable from behind
possessed by skilled professionals who are
H Terminal block for the connecting cable and for
trained in the field of electrical installation technol-
locating the contact pins
ogy. If these minimum requirements are not met
or are disregarded in any way, you will be solely li- The ARGUS operating elements are protected under the
cover plate. The arrow's position on the controllers
able for any damage to property or personal inju-
shows you the set values.
ry.
ARGUS introduction
The radio ARGUS 220 CONNECT (referred to below as
the ARGUS) is a movement detector for indoor and out-
door installation.
Functions:
• 220° surface monitoring for large house fronts and
sections of the house (max. range. 16 m)
• 360° short-range zone (approx. 4 m radius)
• LED function display for fast alignment at the installa- A ARGUS settings controller
tion site. A = Operating mode
B = Learning mode (also for PC-Tool)
• Operating elements are protected under the easily ac-
C = Reset
cessible cover plate.
D = Adopt potentiometer settings
• Can be installed on walls and ceilings without addi-
B Switching duration controller
tional accessories.
C Brightness threshold controller
• Horizontally, vertically and axially adjustable sensor
head for optimum adaptation to immediate surround- D Functional display (lights up each time move-
ings ment is detected)
• Hide unwanted zones or sources of disturbance (e.g. E Brightness sensor (must not be covered)
trees) using the segments supplied.
F Sensitivity controller
• Remote control for setting and operating the ARGUS
conveniently.
Selecting the installation site
Explanation of the symbols used
Correct
Not optimal
Incorrect
When selecting a suitable installation site, you should
take a number of factors into account so that the move-
ment detector operates optimally.
The following figure shows the ranges of the AR-
|
GUS at average temperature conditions and a
mounting height of 2.5 m. The range of a move-
ment detector can vary greatly depending on the
temperature.
m
2,5
A
0
4 0 2
B
14
12
A
10
C
8
6
4
2
0
2
4
E
6
D
8
10
12
14
4 2 0 2
Inner security zone A: Angle of detection 360° over
a radius of approx. 4 m.
Middle security zone B: Angle of detection 220°
with an area of detection of approx. 9 m x 18 m.
Outer security zone C: Angle of detection 220° with
an area of detection of approx. 16 m x 28 m.
A
A
D B
C
B
D
C
F
Mounting height D: 2-3 m. For optimum monitoring,
we recommend a height of 2.5 m on a solid and even
base.
D
E
Minimum distance E to sources of optical interfer-
ence: 5 m If necessary, use the segments supplied to
shade the device.
OK
Minimum distance F between luminaire and move-
ment detector: 5 m. If this distance cannot be
achieved, you can use the segments provided to
"mask" the light source from the area of detection.
If possible, install the movement detector sideways to the
direction of movement.
0,8 m
To avoid the connected load being switched on due to
4 6 8 10 12 14 16 m
environmental influences, the ARGUS should be in-
B
C stalled so that it is protected against rain and direct sun-
light. A raindrop running over the lens, for example, can
activate the movement detector.
4 6 8 10 12 14 16 m
If you wish to attach several movement detectors, install
them so that the detection areas of the individual move-
ment detectors intersect each other.
E
E
OK
F
ARGUS installation
Dismantlement of the top section of the ARGUS
1
OK
2 3
OK
OK
Installing the ARGUS to the wall
1
2
Feeding in the connecting cable
1
=
2
=
Installing the ARGUS on the ceiling
In order to install the ARGUS on the ceiling, you must ro-
tate the sensor head. Change the direction of rotation
once you have reached the end stops.
1 Turn the sensor head upwards as far as it will go.
2 Turn the sensor head clockwise as far as it will go.
3 Align the sensor head.
1 2 3
½ CAUTION
If not installed correctly, the device can be
damaged by condensation.
In the case of sloping ceilings, install the device
so that spherical head is pointing down and al-
ways at an angle of 15° - 90°. When the spherical
head points downwards, any water from conden-
sation could run down the device.
Type of protection IP 55 cannot be guaranteed if
|
the mounting bracket is not 15° - 90°.
15° - 90°
Installing the ARGUS on corners and fixed pipes
You can attach the ARGUS to inner/outer corners or fixed
pipes using the mounting bracket (art. no. 56529x). You
can feed the connecting cable to the device from behind
through the mounting bracket.
