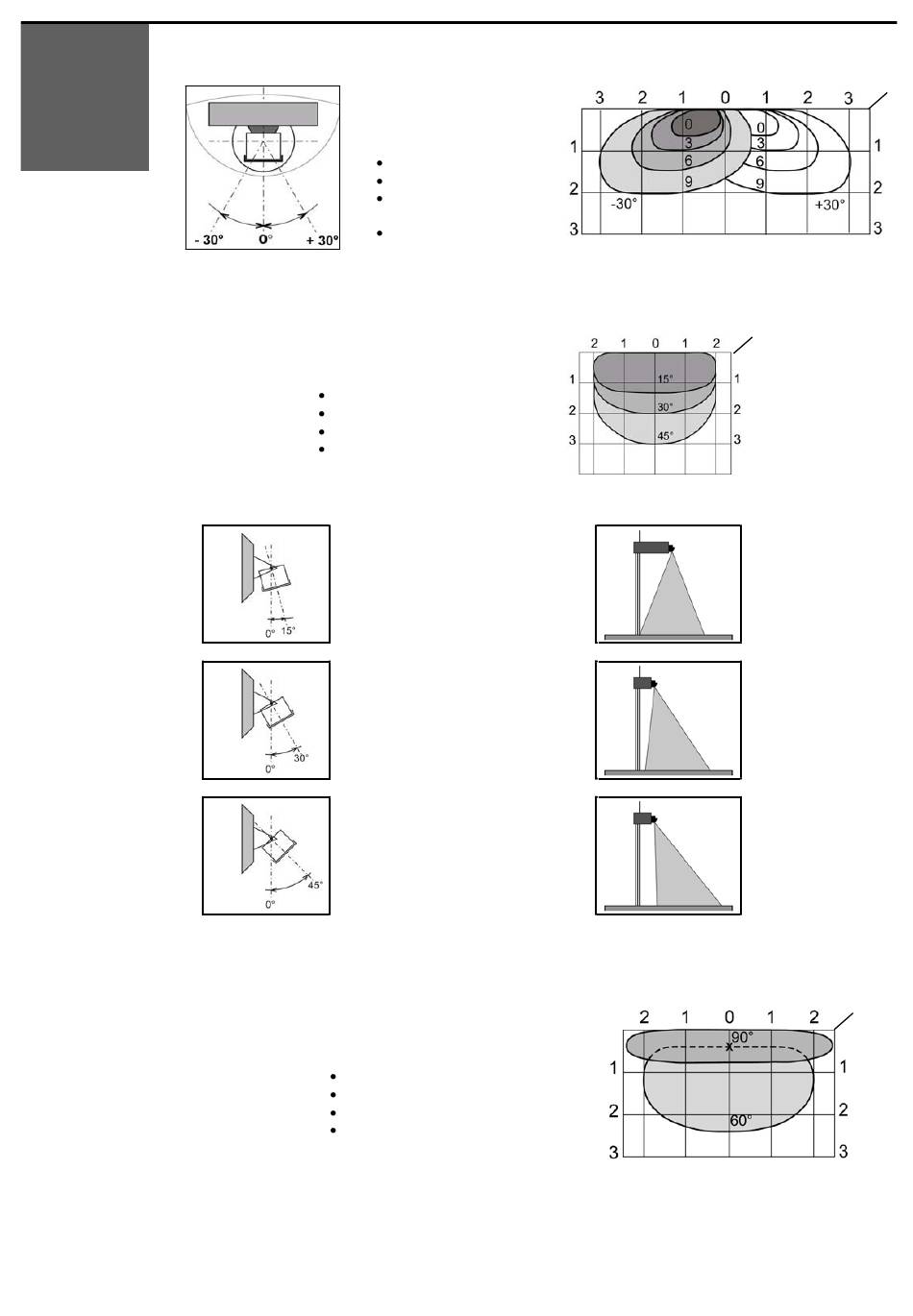

D. POSITION OF THE SENSING FIELD IS DETERMINED BY THE LATERAL ANGLE OF THE PLANAR ANTENNA
MECHANICAL
CONFIGURATION
E. POSITION OF THE SENSING FIELD IS DETERMINED BY THE VERTICAL ANGLE OF THE ANTENNA
The sensing fields here on the right
correspond to the following adjustments :
Wide sensing field antenna;
Sensitivity : 9 ;
Bidirectional mode ;
Mounting height : 2.2m.
To obtain a sensing field as close
to the door as possible, set the
antenna at its minimum tilt angle
(0° to 15°).
To obtain a sensing field close to the
door, set the antenna at a tilt angle
of 30°.
To obtain a sensing field distant
from the door, set the antenna at a
tilt angle of 45°.
FOR A CEILING MOUNTING :
The sensing fields here on the right
correspond to the following adjustments :
Wide sensing field antenna ;
Sensitivity : 9 ;
Bidirectional mode ;
Mounting height : 2.2m.
The sensing fields here on the
right correspond to the following
adjustments :
Wide sensing field antenna;
Bidirectionnal mode ;
Lateral angle of the antenna :
30°, - 30°
Mounting height : 2.2m.
m
m
m
m
Example of
deep-field operator
application.
Example of standard
operator application.
Example of standard
operator application
(with dead zone)
m
m
4/8
