Cleanup
Maintaining a clean gun is important to ensure
trouble-free operation. Flush the gun after
each use and store in a dry location. Do not
leave the gun or any of its parts in water or
solvents.
Special cleanup instructions for
use with flammable solvents:
• Always flush spray gun preferably outside
and at least one hose length from spray
pump.
• If collecting flushed solvents in a one
gallon metal container, place it into an
empty five gallon container, then flush
solvents.
• Area must be free of flammable vapors.
• Follow all cleanup instructions.
The sprayer, hose, gun and
gun filter should be cleaned
thoroughly after daily use.
Attention
Failure to do so permits material
to cake, seriously affecting the
performance of the unit.
Always spray at the lowest
possible pressure when the
tip and tip guard have been
removed. To clean the airless gun,
hose and spray device, use only
water or a suitable solvent. Static
electricity buildup may result in a
fire or explosion in the presence
of flammable vapors. Hold
the gun firmly against a metal
container while flushing.
14
GB
Maintenance
Follow all safety precautions as described in
the Safety Precautions section of this manual
before proceeding.
i
Refer to the Parts List section
in this manual for part
identification.

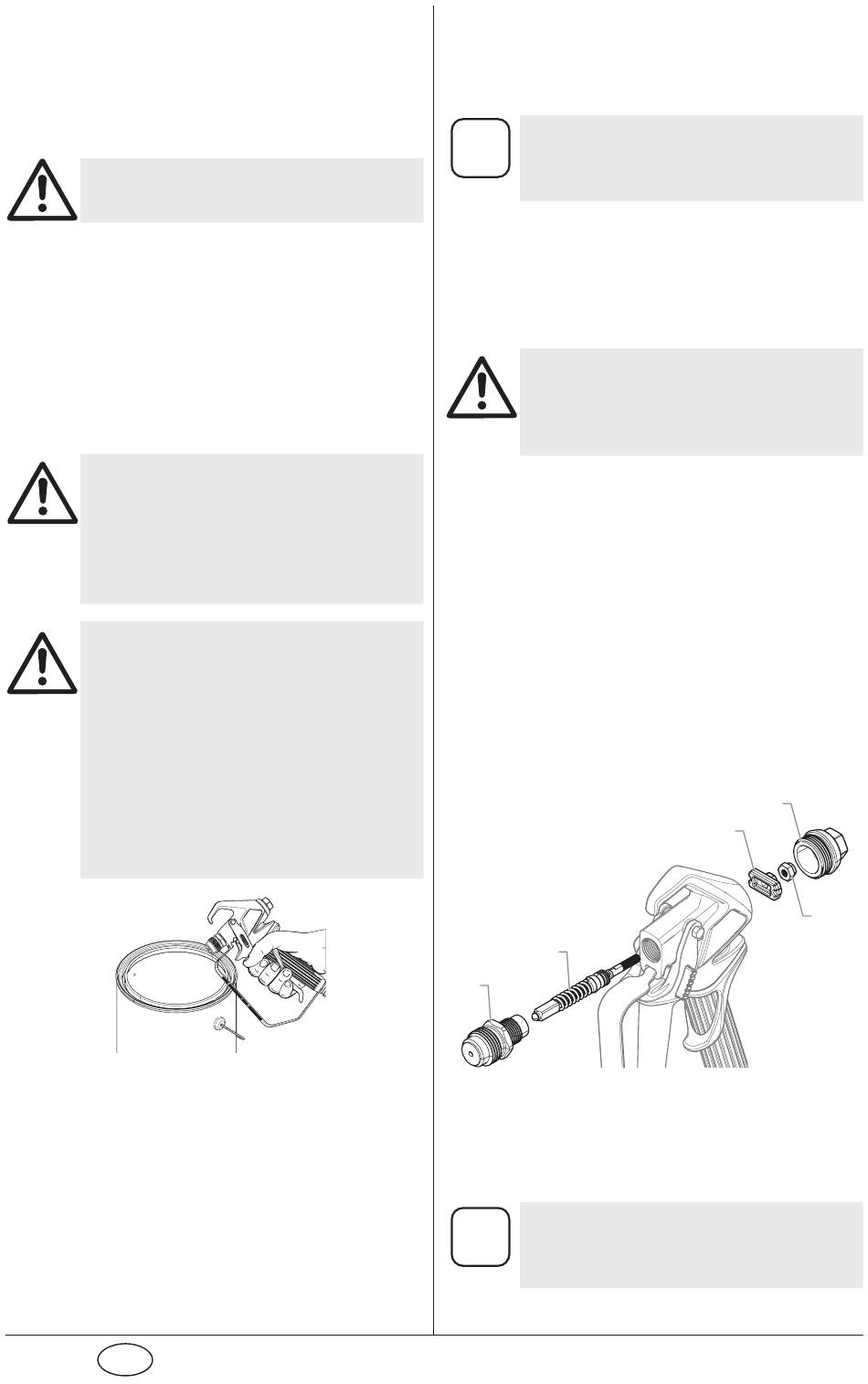

Replacing/Servicing the Seal Assembly
If your spray gun leaks or spits at the tip when
you release the trigger, the needle is worn,
damaged, or dirty and must be replaced or
cleaned.
Never attempt to perform
maintenance on the spray gun
without first performing the
"Pressure Relief Procedure."
1. Disconnect the fluid hose from the gun.
2. Remove the tip and tip guard.
3. With the trigger depressed, remove the
diffuser (1) from the front of the gun.
4. Using an adjustable wrench, loosen and
remove the rear housing (2).
5. Using a 3/8" ratchet, remove the lock nut
(3) from inside the rear of the gun head.
Remove the retractor plate (4).
6. Remove the seal assembly (5) from the
front of the gun head by pushing or
gently tapping at the back of the seal
assembly.
5
1
7. Soak the removed parts in the
appropriate solvent and wipe clean.
8. Inspect the parts for wear or damage and
use new parts during reassembly of the
gun, when necessary.
i
Lubricate all packings and
moving parts before reassembly
with a lithium-based grease.
2
4
3
