• Car stereo without ISO connectors:
If your car stereo does not feature ISO connectors, an ISO adapter cable can be used to simplify the installation of your hands-free kit and your steering wheel control interface.
The ISO adapter can then be used to connect your hands-free kit by adapting to your vehicle's specific connections.
You will find a list of adapter cables on our website at www.parrot.com for simplifying the installation procedure.
• Protocol communication
The protocol communication of your SWC is managed via a wire which have a variable electric voltage. This wire allows you to enjoy the features of your Hands Free car kit by using
the command buttons of your SWC. It is important to follow the instructions on the "VEHICLE SPECIFIC FITTING PROCEDURE" in order to comply with the wiring communication protocol.
Parrot CK3000 EVOLUTION
1
2
3
4
5

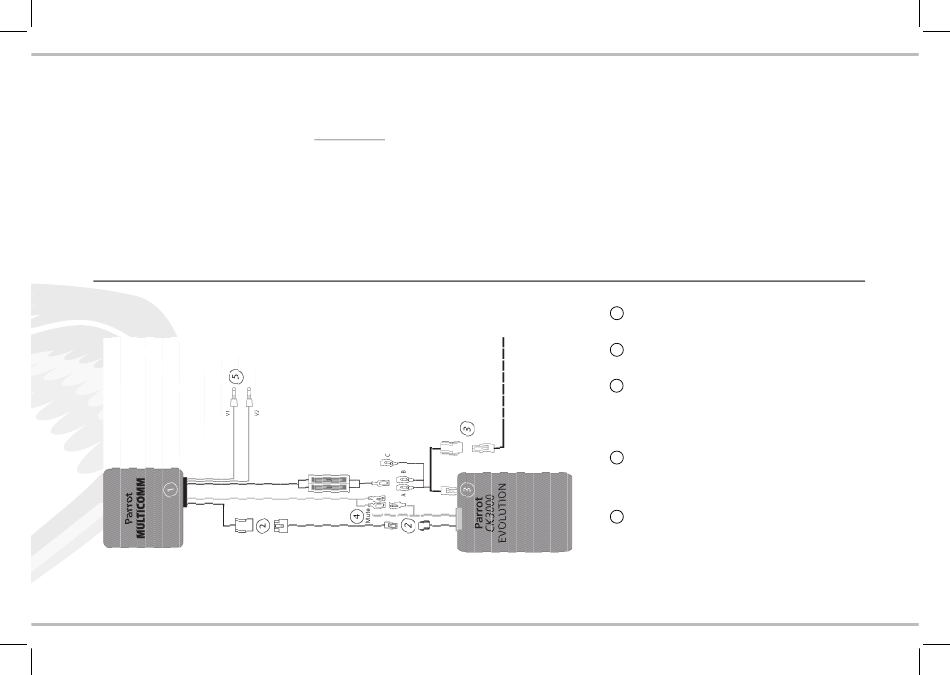

Connect the power cable of the Parrot MULTICOMM
interface to the 14-way connector of the SWC unit.
Join the connector of the kit's control keypad
to the connector on the interface's power cable.
Connect the Parrot MULTICOMM interface's power
cable of the hands-free kit.
A: connect the orange wire from the car kit
power cable to the yellow/red power cable
of the interface.
Connect the yellow mute wire
of the Parrot MULTICOMM interface:
- To the Parrot yellow mute wire
- And to the car stereo's mute input if applicable
Refer to the chapter entitled «Vehicle
Specific Fitting Procedure» to correctly connect
the communication protocol.
