Parrot MULTICOMM Benutzerhandbuch Seite 11

HONDA

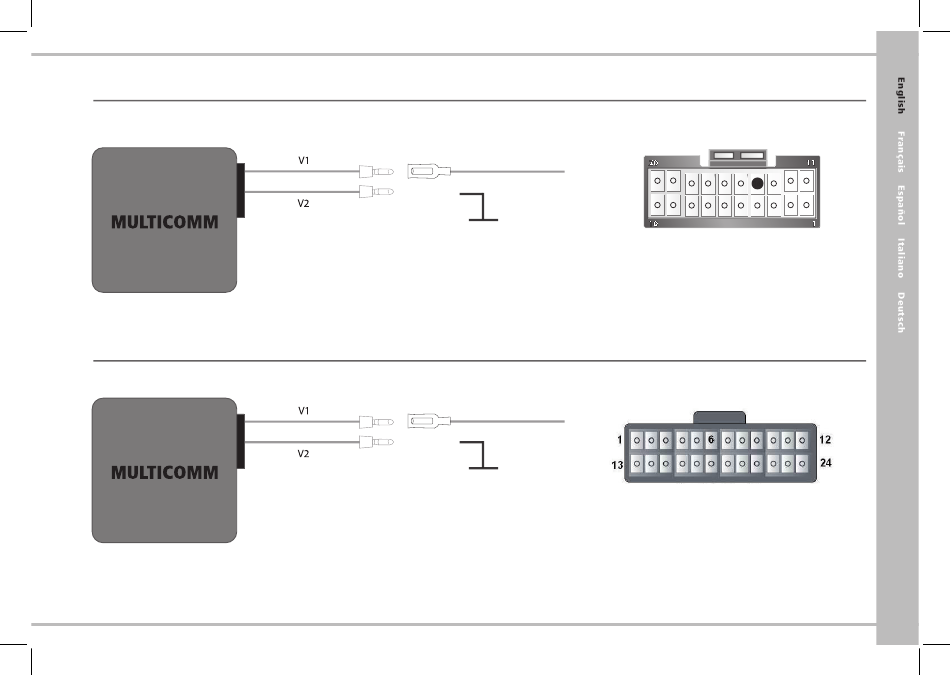

A- HONDA Civic (> 2006) protocol communication configuration
Parrot
Parrot
• Connect the purple wire corresponding to V1 resistive information to pin 14
• Connect the white wire corresponding to V2 to the ground plug
HYUNDAI
A- Hyundai SANTA FE protocol communication configuration
Parrot
Parrot
• Connect the purple wire corresponding to V1 resistive information to pin 6
• Connect the white wire corresponding to V2 to the ground plug
9
ground plug
Honda Male
ground plug
11
16
23
36
Opel / Renault / Fiat
14
(Connector back the radio)
Honda Male
3
Mazda Male
7
16
(Connector back the radio)
30
17
12
9
24
17
24
30
1
8
36
33
23
20
