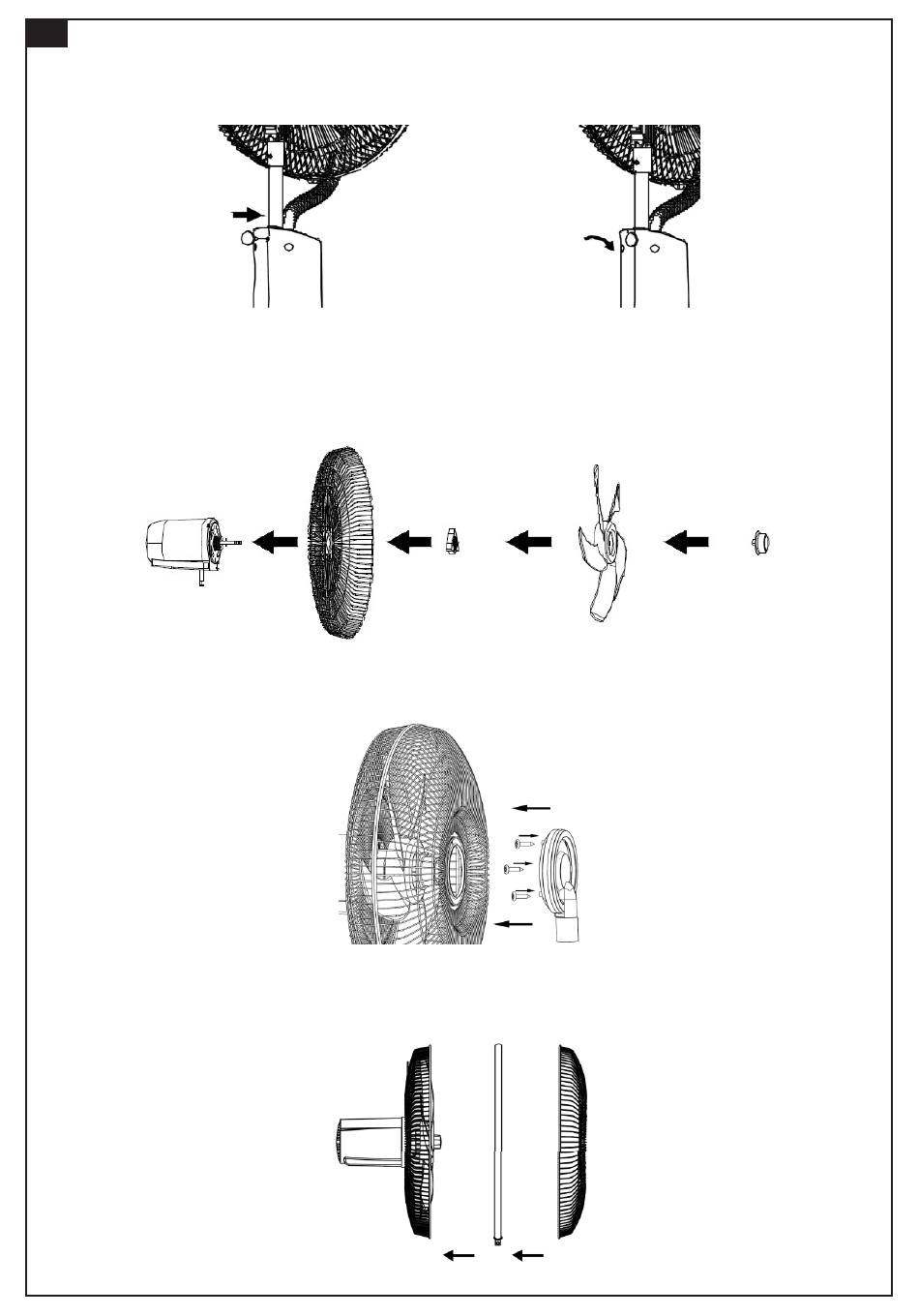

2. Insert the main holder (14) into the main body (16), and tight up by the holder fixed
screw (16).
3. Put the back grill (7) through the motor shaft (8), and tighten up by the grill lock nut (6)
to the motor cover (9) Insert the blades (5) on the motor shaft (8), and tighten up by
the blade lock nut (4).
4. Fixed the misting board (1) on the front grill (2), and tight up by misting board lock
screws.
5. Connect the front grill (2) and rear grill (7) by grill ring (22), and tighten up by screw in
the ring.
