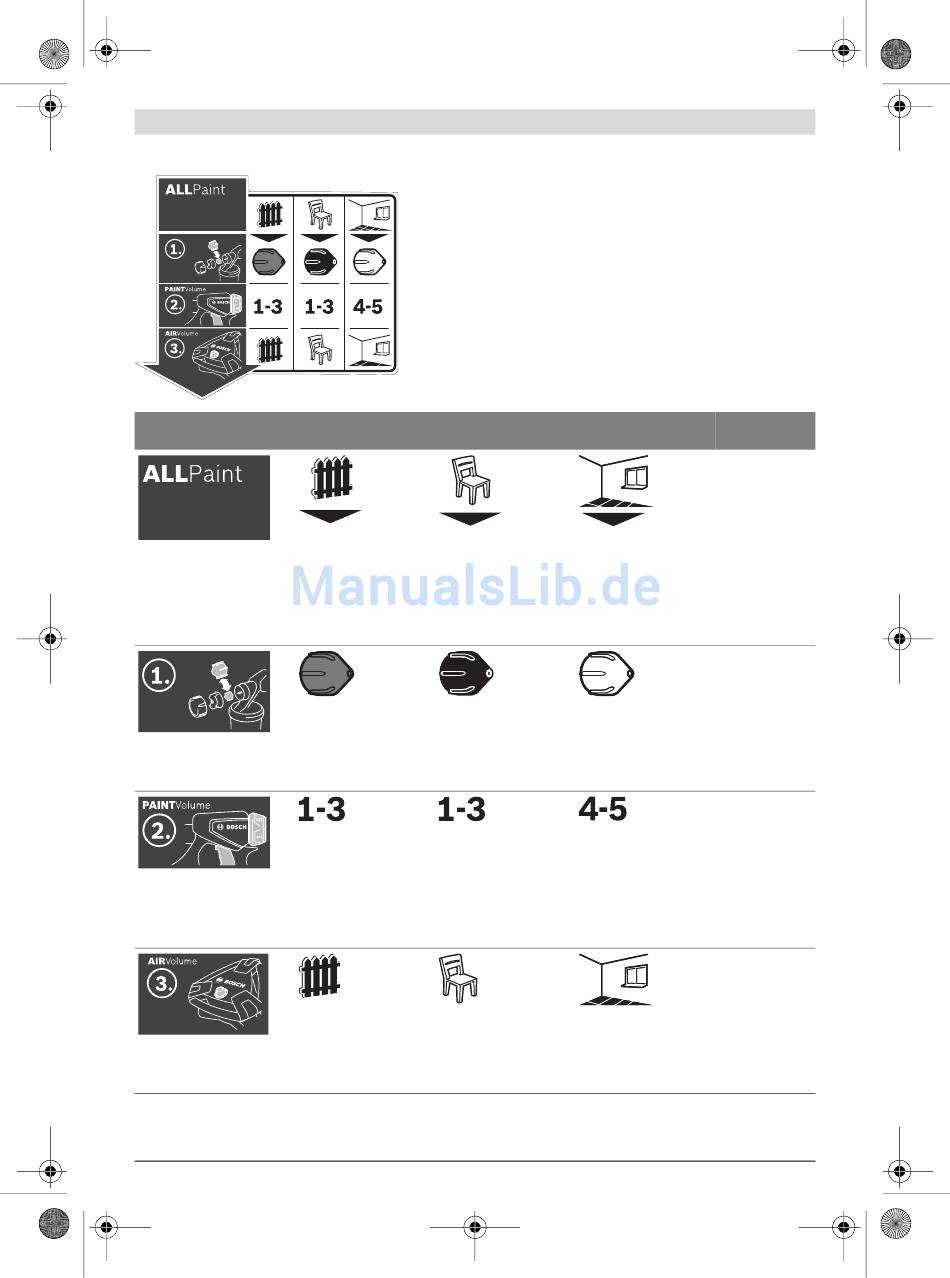

Symbols
Symbols and their meaning
The fine-spray system is suit- "Wood/glaze"
able for glazes and lacquers application:
and for wall paints. Spraying glazes, primers
and wood stains
Step 1: Choose the grey nozzle
Choose the correct nozzle cap 11 for a
cap "wood/glaze" application
Step 2: Select setting 1, 2 or 3
Set the spraying capacity on the thumbwheel 4 for
a "wood/glaze" applica-
tion
Step 3: Set "wood/glaze" appli-
Set the air flow cation at the air flow con-
trol 25
Bosch Power Tools
The sticker regarding operation of the fine-spray system is located on the
base station. The correct interpretation of the symbols helps you operate
the fine-spray system better and more safely.
"Wood/lacquer" "Wall" application:
application: Spraying emulsion and
Spraying solvent-based latex paints
and water-dilutable lac-
quers, clear lacquers and
oils
Choose the black nozzle Choose the white nozzle
cap 12 for a "wood/lac- cap 10 for a "wall" appli-
quer" application cation
Select setting 1, 2 or 3 Select setting 4 or 5 on
on the thumbwheel 4 for the thumbwheel 4 for a
a "wood/lacquer" appli- "wall" application
cation
Set "wood/lacquer" ap- Set "wall" application at
plication at the air flow the air flow control 25
control 25
English | 19
Detailed
description
See "Intended
Use", page 20.
See "Changing
the Nozzle Cap",
page 21.
See "Adjusting
the Spraying Ca-
pacity", page 23.
See "Adjusting
the Air Flow",
page 23.
