Mounting

3 Mounting
3.1

Mounting preparations

The following tools are necessory for mounting: Hexagon spanner size 3
3.2

Mounting steps

1

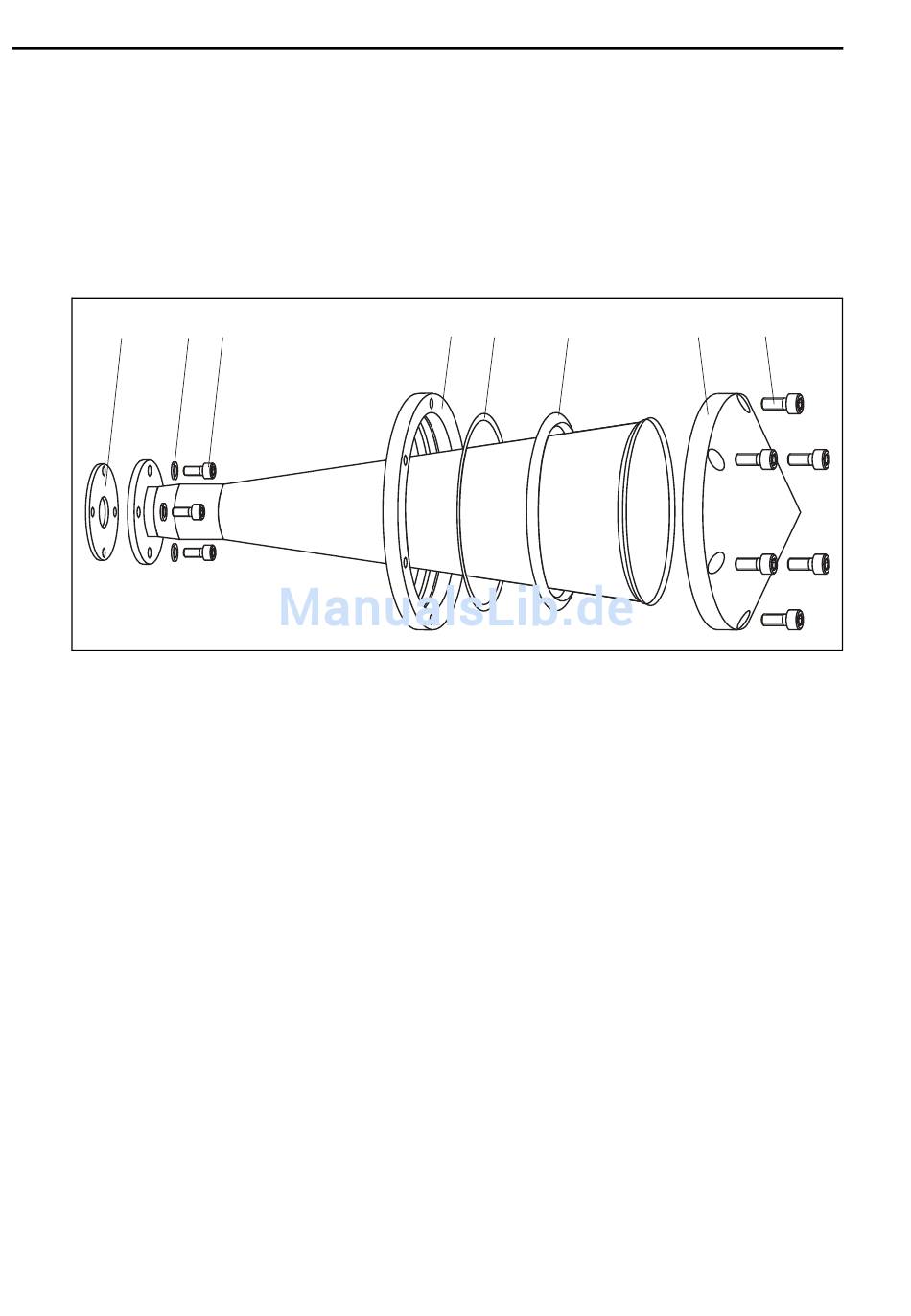

Fig. 1: Mounting, horn cover
1 Flat seal
2 Lock washer
3 Screws, antenna socket
4 Holding ring
5 Contact ring
6 O-ring seal
7 Horn cover
8 Screws, horn cover
1. Loosen the screws (3) on the antenna socket and remove horn antenne.
2. Shift O-ring seal (6), contack ring (5) and holding ring (4) onto the antenna cone.
3. Plug horn cover (7) onto the antenna opening and direct the holes to the holding ring (4).
4. Tighten the screws (8) crosswise until the horn cover (7) and holding ring (4) are
assembled.
5. Insert flat seal (1) between horn antenna and antenna socket.
6. Retighten the horn antenna with screws (3) to the antenna socket; torque max. 2.5 Nm
(1.844 lbf ft).
6
2 3 4 5 6
Micropilot M FMR240/250
7 8
