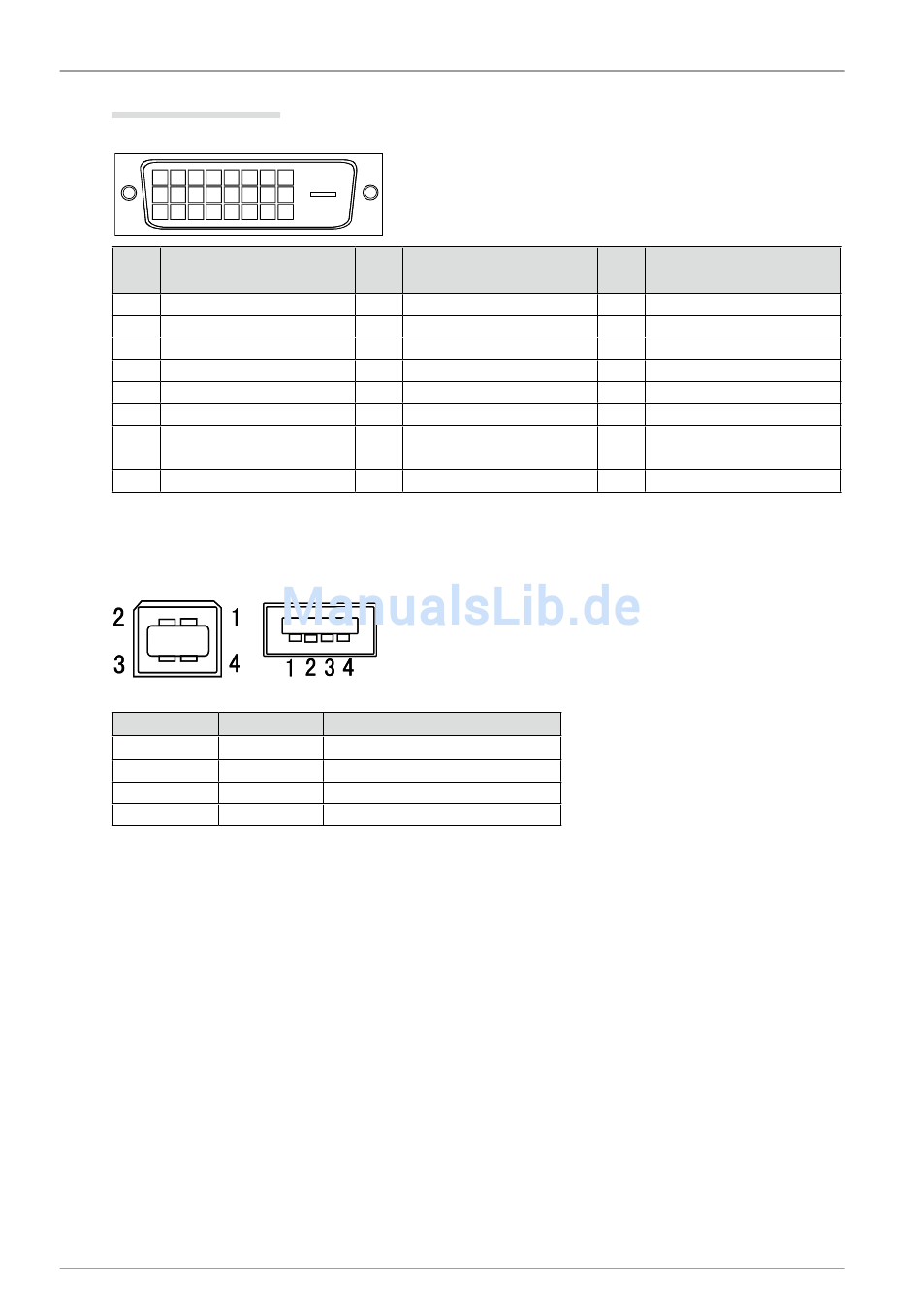

7. Spezifikationen
Pin-Belegung
•DVI-D-Anschluss
1 2 3 4 5 6 7 8
9
10 11 12 13 14 15 16
19 20 21
17 18
Pin
Signal
No
1
T.M.D.S. Data2-
2
T.M.D.S. Data2+
3
T.M.D.S. Data2/4 Shield
4
T.M.D.S. Data4-
5
T.M.D.S. Data4+
6
DDC Clock (SCL)
7
DDC Data (SDA)
8
NC*
•USB-Ports
Upstream
SERIE B
No.
1
VCC
2
- Data
3
+ Data
4
Ground
38
22 23 24
Pin
No
9
T.M.D.S. Data1-
10 T.M.D.S. Data1+
11 T.M.D.S. Data1/3 Shield
12 T.M.D.S. Data3-
13 T.M.D.S. Data3+
14 +5V Power
15 Ground (return for +5V,
Hsync, and Vsync)
16 Hot Plug Detect
Downstream
SERIE A
Signal
Anmerkungen
Cable power
Serial data
Serial data
Cable Ground
Signal
Pin
No
17 T.M.D.S. Data0-
18 T.M.D.S. Data0+
19 T.M.D.S. Data0/5 Shield
20 T.M.D.S. Data5-
21 T.M.D.S. Data5-
22 T.M.D.S. Clock shield
23 T.M.D.S. Clock+
24 T.M.D.S. Clock-
Signal
(NC*: No Connection)
