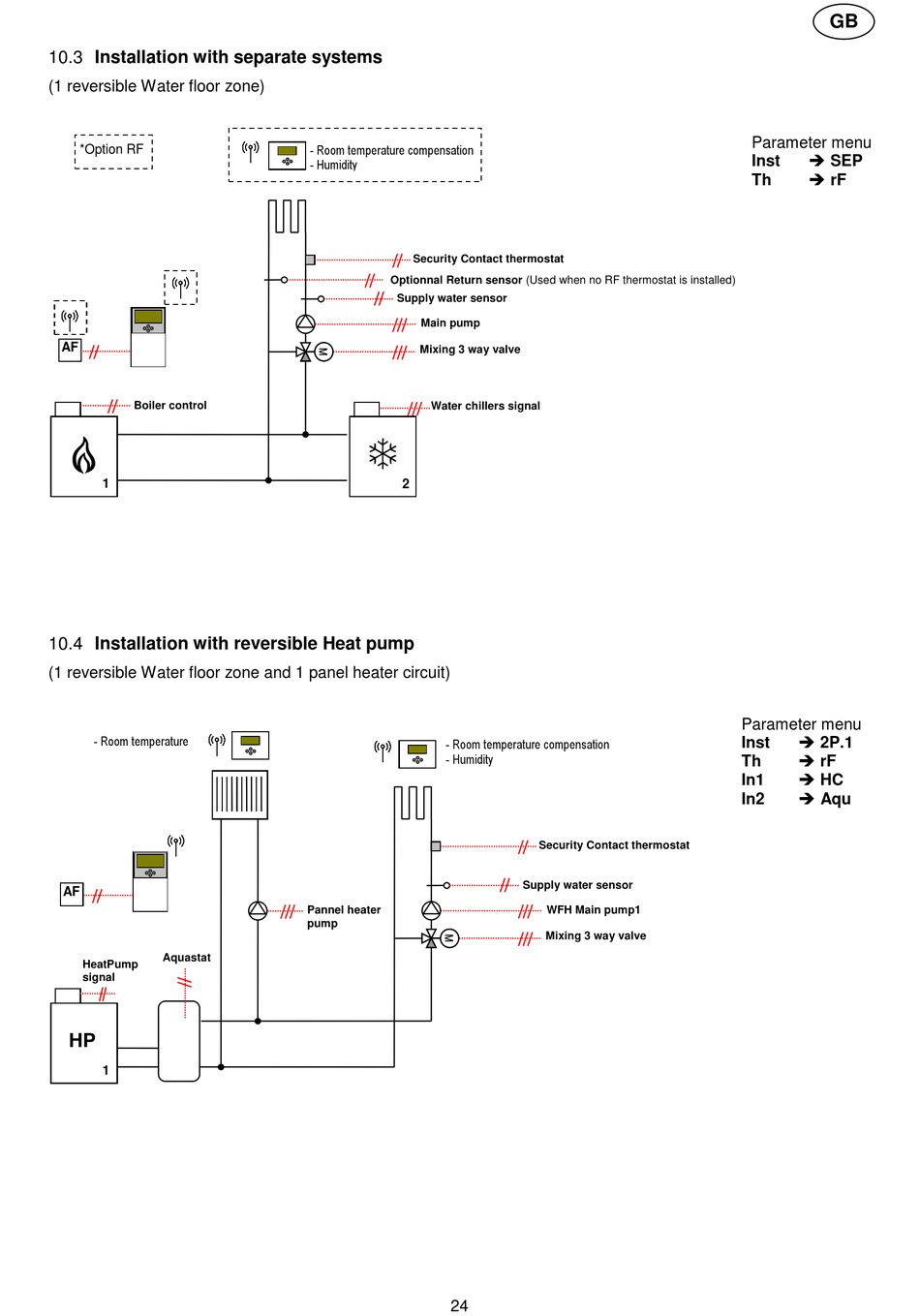

10.3 Installation with separate systems

(1 reversible Water floor zone)
*Option RF
AF
Boiler control
1

10.4 Installation with reversible Heat pump

(1 reversible Water floor zone and 1 panel heater circuit)
- Room temperature
AF
Aquastat
HeatPump
signal
HP
1
- Room temperature compensation
- Humidity
Security Contact thermostat
Optionnal Return sensor (Used when no RF thermostat is installed)
Supply water sensor
Main pump
Mixing 3 way valve
Water chillers signal
2
- Room temperature compensation
- Humidity
Pannel heater
pump
24
Security Contact thermostat
Supply water sensor
WFH Main pump1
Mixing 3 way valve
GB
Parameter menu
 SEP
Inst
 rF
Th
Parameter menu
 2P.1
Inst
 rF
Th
 HC
In1
 Aqu
In2
