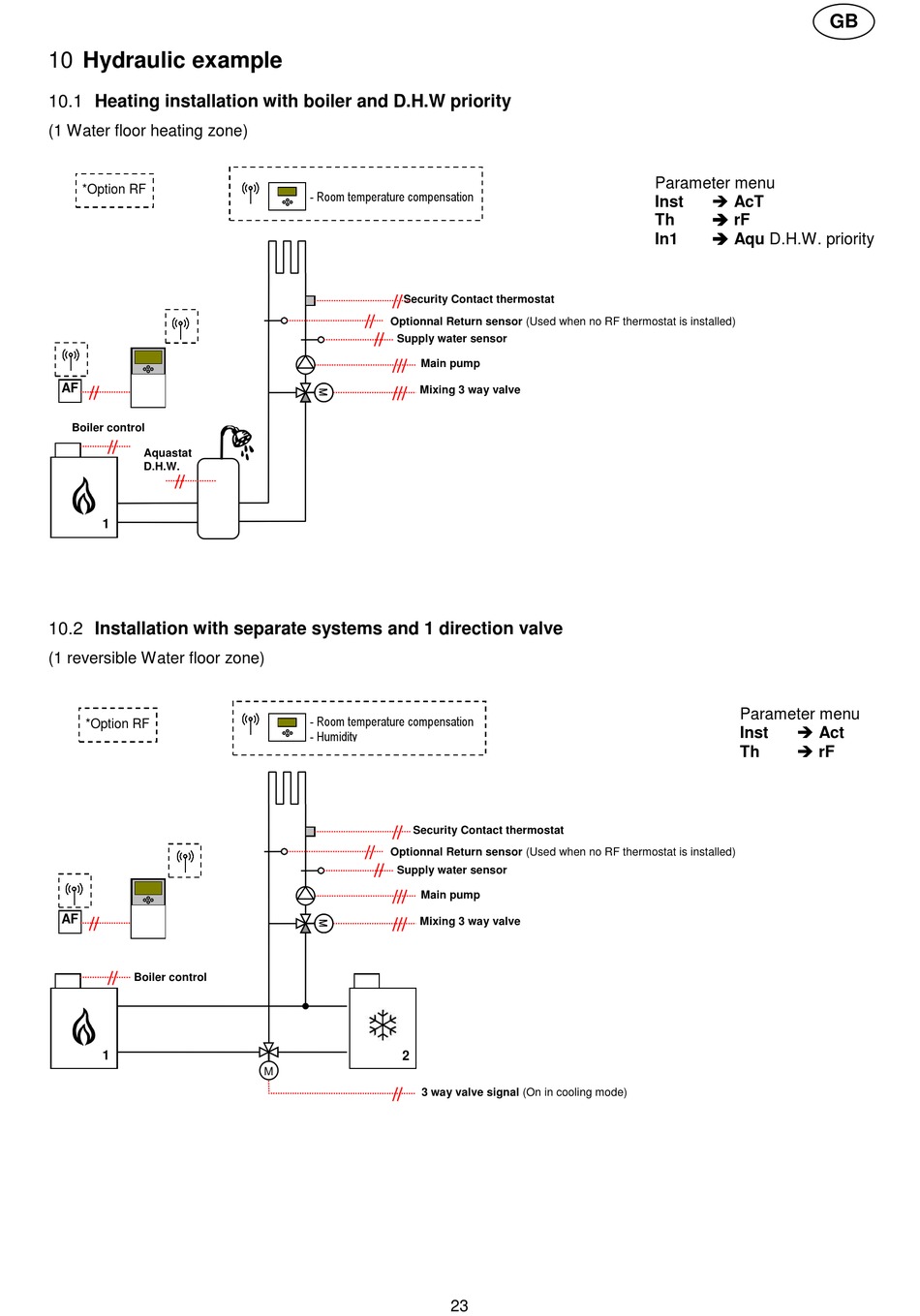

10 Hydraulic example

10.1 Heating installation with boiler and D.H.W priority

(1 Water floor heating zone)
*Option RF
AF
Boiler control
Aquastat
D.H.W.
1

10.2 Installation with separate systems and 1 direction valve

(1 reversible Water floor zone)
*Option RF
AF
Boiler control
1
- Room temperature compensation
Security Contact thermostat
Optionnal Return sensor (Used when no RF thermostat is installed)
Supply water sensor
Main pump
Mixing 3 way valve
- Room temperature compensation
- Humidity
Security Contact thermostat
Optionnal Return sensor (Used when no RF thermostat is installed)
Supply water sensor
Main pump
Mixing 3 way valve
2
M
3 way valve signal (On in cooling mode)
23
Parameter menu
 AcT
Inst
 rF
Th
 Aqu D.H.W. priority
In1
Parameter menu
 Act
Inst
 rF
Th
GB
